CVGF-SVN02B-E4
49
Installation:
Mechanical

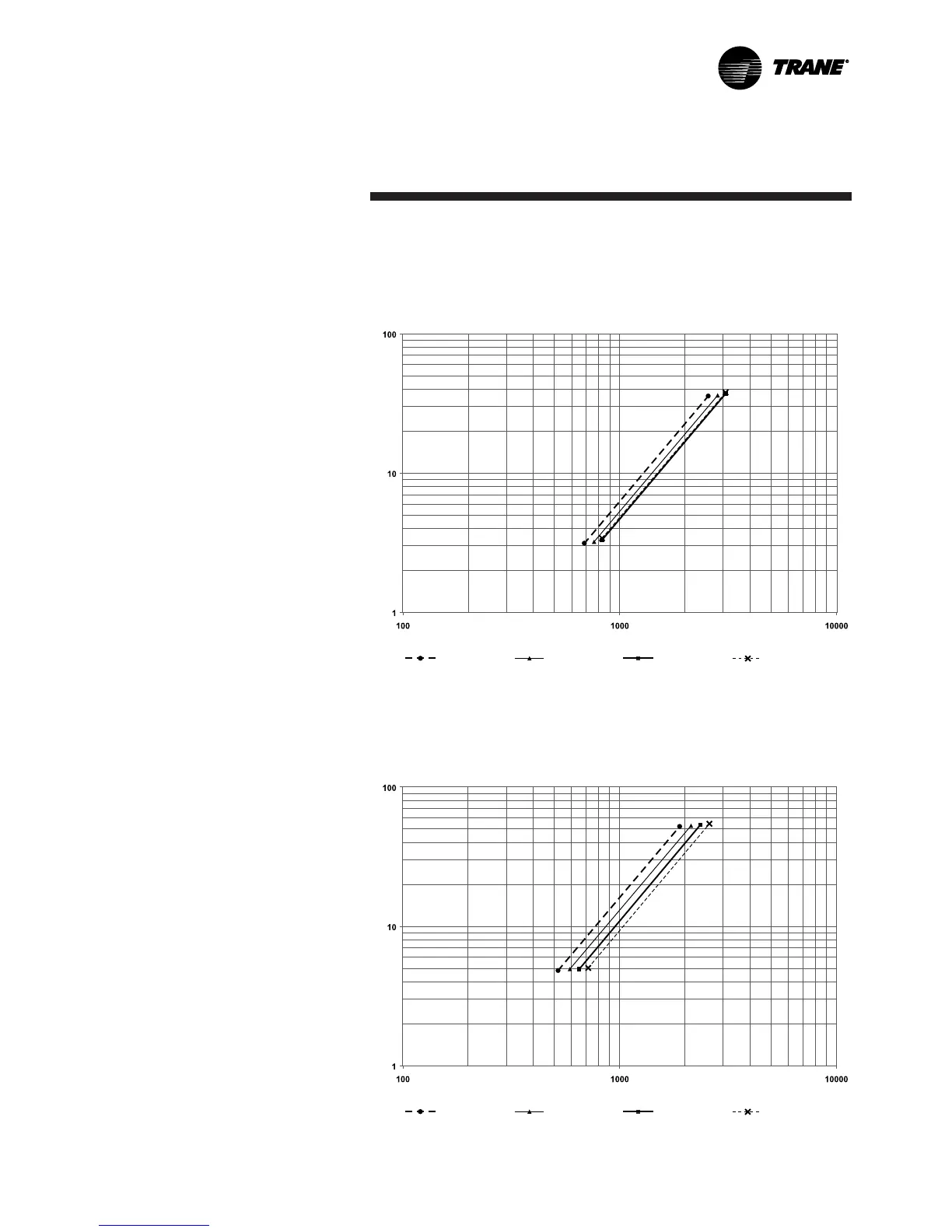

Pressure drop for CVGF 1000 Condensers with 1.0 inch OD
tubes and 2 pass waterboxes
Water Pressure Drop Data
Pressure drop (in feet of water)
Flow (in GPM)
Pressure drop for CVGF 1000 Evaporators with 1.0 inch OD
tubes and 3 pass waterboxes
Pressure drop (in feet of water)
Flow (in GPM)
Graph 15.
Graph 16.
Bundle C
Bundle A
Bundle B
Bundle D
Bundle C
Bundle A
Bundle B
Bundle D
