CVGF-SVN02B-E4
55
Table 14. Recommended insulation types
Square Feet
Location Type (Square m)
3/4" wall (19 mm) 160 (15)
3/4" wall (19 mm) 20 (2)
3/4" wall (19 mm) 10 (1)
Installation:
Mechanical

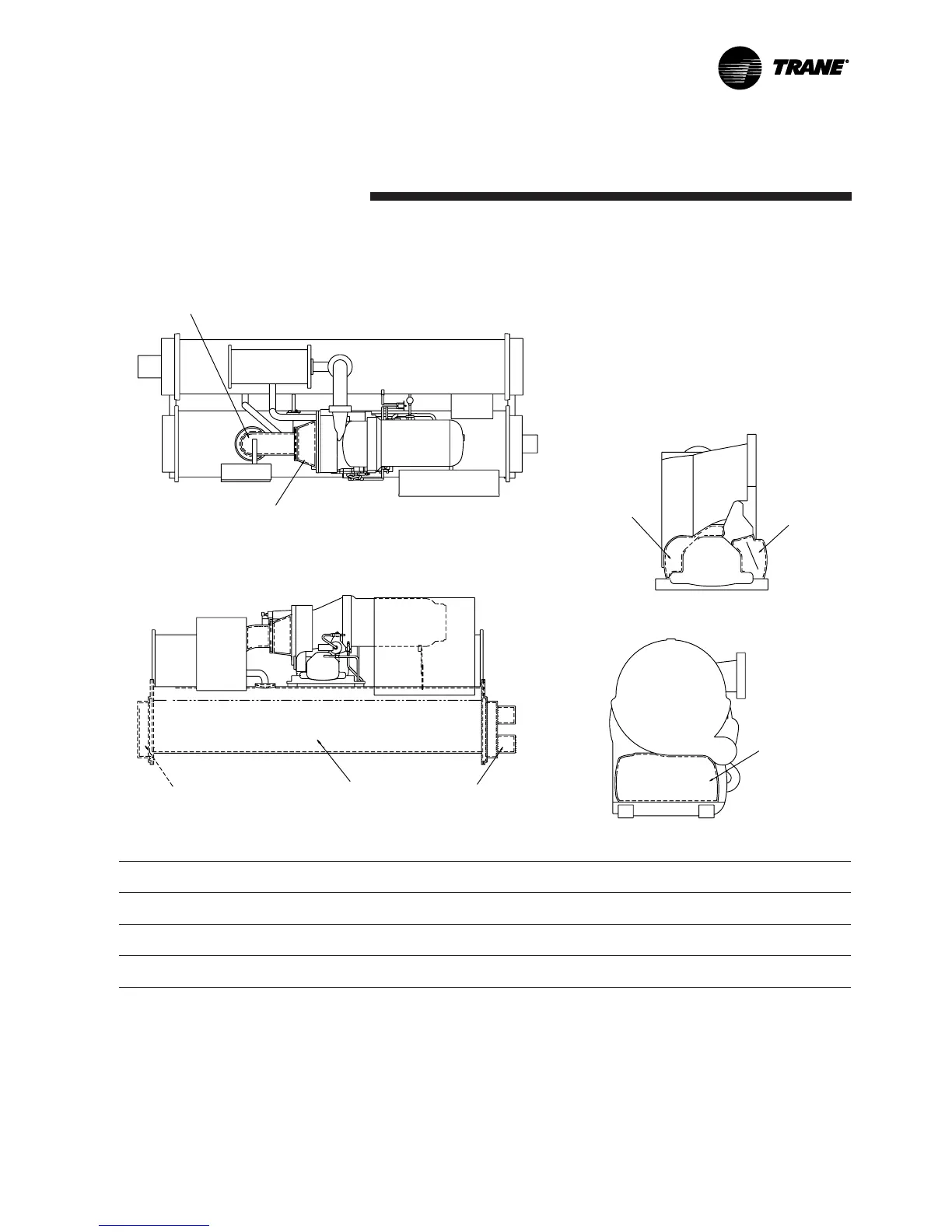

Figure 13. Typical CVGF insulation requirements
Suction line pipe
Suction cover
Evaporator water box
Evaporator
Evaporator water box
Oil sump casing
Oil sump
casing
Oil sump casing
Gear Housing – Front View
Gear Housing – Side View
Insulate where dotted lines are indicated.
Evaporator, waterboxes and tube sheets
Compressor suction elbow and suction cover
All components and piping on low side of system
