Installation: Mechanical

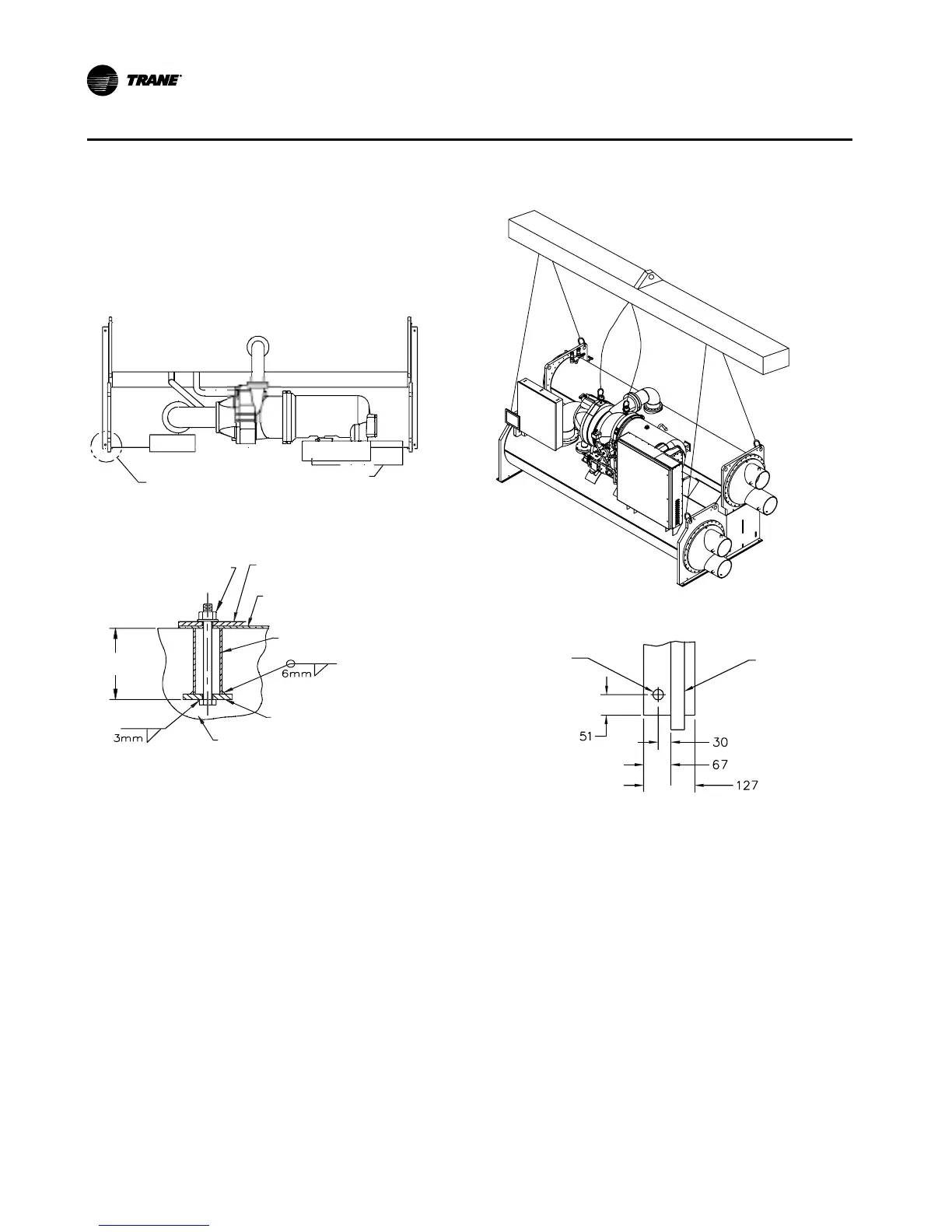

Figure 19. Rigging diagram with anchor hole
and bolt detail
See anchor hole
detail
Motor
Terminal Box
Control
Panel
Optional unit-
mounted
starter
Figure 20. Rigging diagram with safety chain placement
Anchor Bolt Detail
Nuts should not be tight.
Leave 2 to 3 mm gap.
Unit mounting pad 13 mm
thick (by Trane)
Vibration isolator (by Trane)
75 mm steel pipe
steel plate
Concrete
To meet
local codes
Recommended procedure to allow for
thermal expansion. (Unless otherwise
specified, parts are furnished by the
customer
.)
Anchor Hole Detail
diameter holes for
anchoring the unit
Evaporator
tubesheet
Dimensions are typical for each corner
152 ˘ 152 19 mmv
4 ˘ 22 mm
A
C
B
B
C
