Installation: Mechanical
T
able 17. Recommended insulation types
Square Feet
LocationT
ype (Square m)
3/4" wall (19 mm) 160 (15)
3/4" wall (19 mm) 20 (2)
3/4" wall (19 mm) 10 (1)

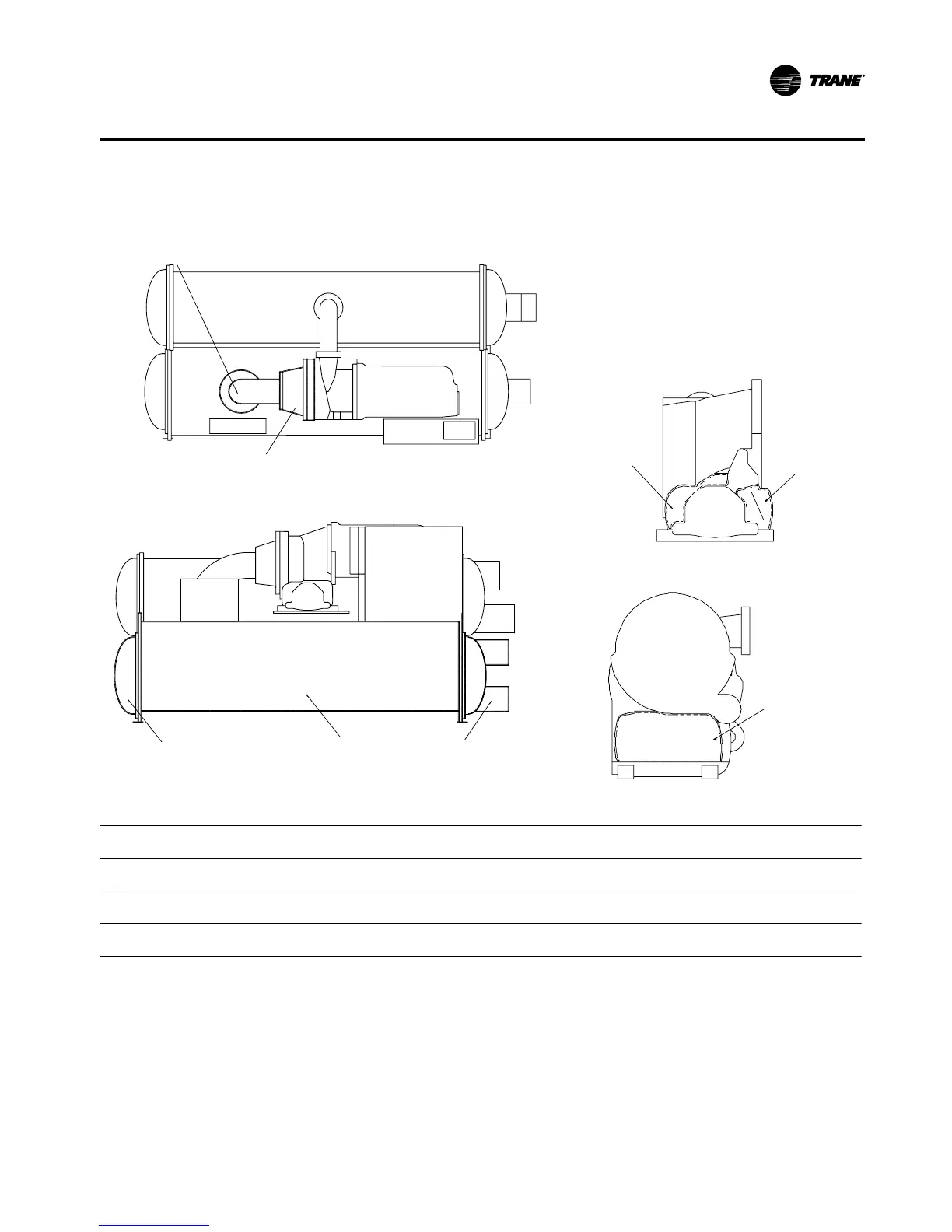

Figure 25. Typical CVGF insulation requirements
Suction line pipe
Suction cover
Evaporator water box
Evaporator
Evaporator water box
Oil sump casing
Oil sump
casing
Oil sump casing
Gear Housing – Front View
Gear Housing – Side View
Insulate where dotted lines are indicated.
Evaporato
r, waterboxes and tube sheets
Compressor suction elbow and suction cover
All components and piping on low side of system
