AFDH Drive Package Specifications

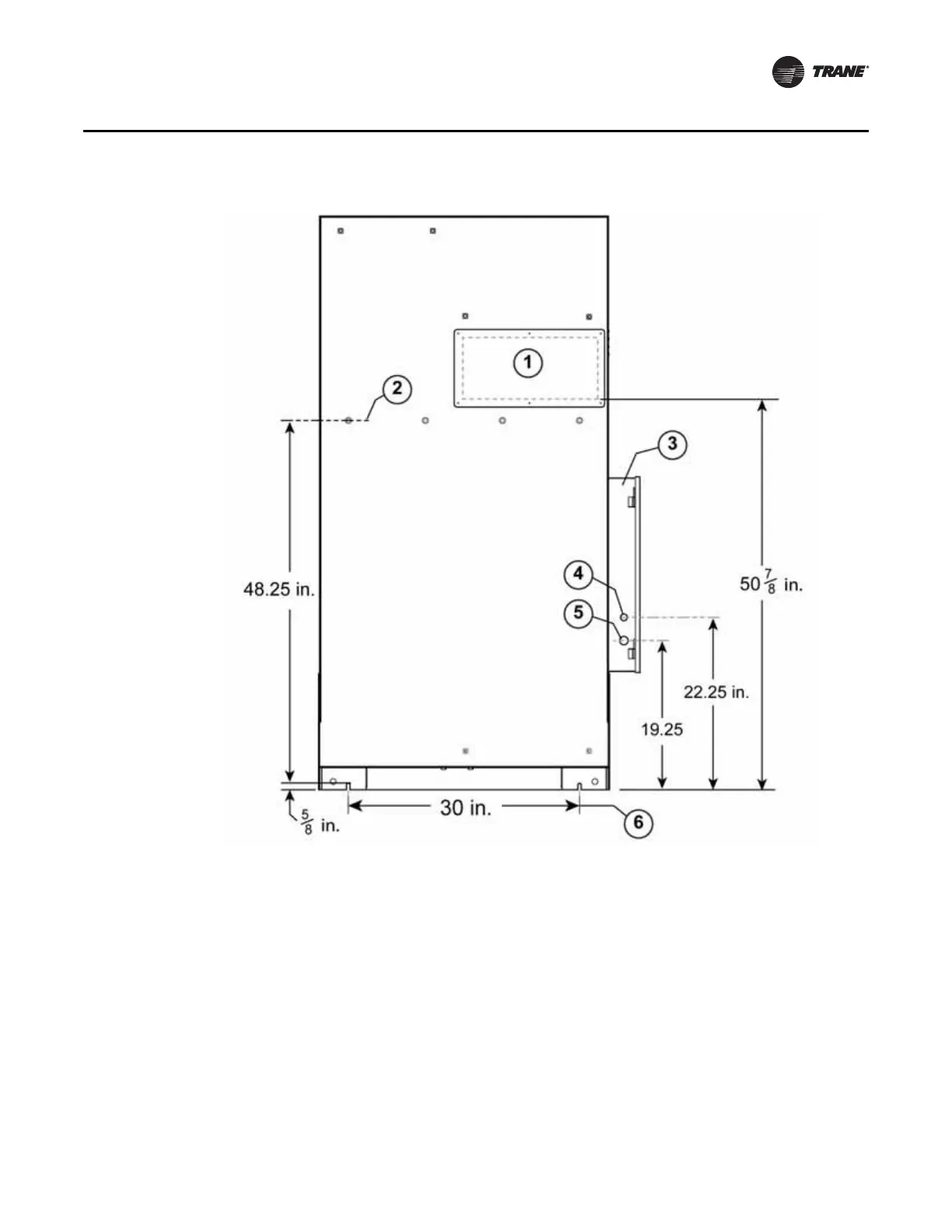

Figure 9. Rear view of D-Frame AFDH cabinet with dimensions
1. Motor terminal access cover. Size of cutout is 8 in. x 17.5 in.
2. Centerline of Z-bracket mounting studs
3. UCP2 or CH531 / AdaptiView control box
4. 0.88 in. diameter cutout for 0.50 in. electrical conduit
5. 1.13 in. diameter cutout for 0.75 in. electrical conduit
6. Center-to-center spacing of the mounting notches for the angle iron bracket clips that will be
removed from the unit mounted starter being replaced and reused
