TAM815

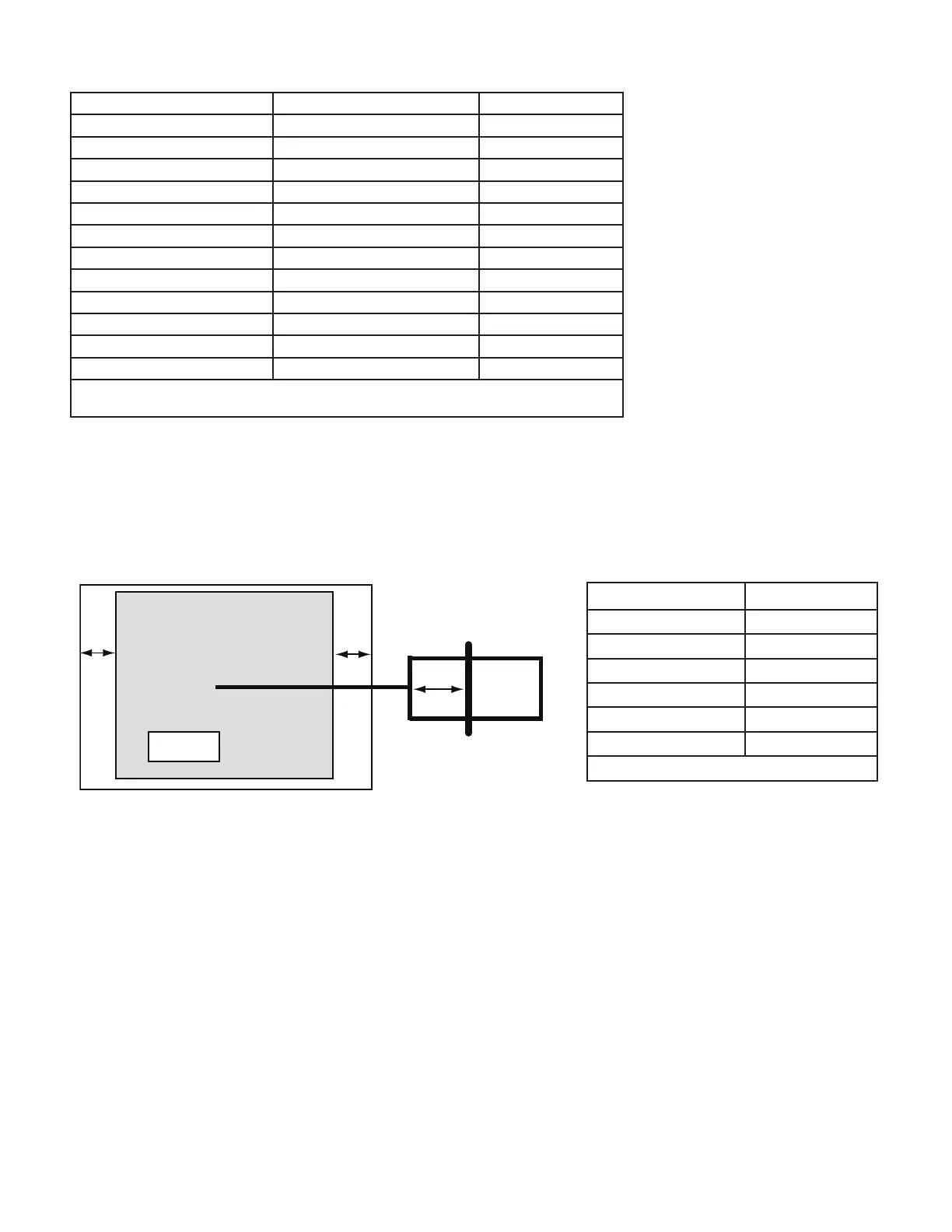

DISTANCE FROM BELLY BAND TO SHAFT FACE OF MOTOR FOR MINIMUM VIBRATION
WHEEL
BLOWER HOUSING
BELLY BAND
MOTOR
A
A is determined per chart
Wheel is centered in
Blower Housing
MODEL DIM "A"
*AM8A0A24V21CA 2-3/8
*AM8A0B30V21CA 2-3/8
*AM8A0C36V31CA 2-3/8
*AM8A0C42V31CA 2-3/8
*AM8A0C48V41CA 2-3/8
*AM8A0C60V51CA 2-3/8
* May be "A" or" T"
SUBCOOLING ADJUSTMENT
Indoor Unit Model No. Outdoor Unit Model No. Subcooling
*AM8A0B30V21CA 4A6H6024E, 4TWX6024E 9°
*AM8A0C36V31CA 4A6H6036E, 4TWX6036E 10°
*AM8A0C48V41CA 4A6H6048E, 4TWX6048E 8°
*AM8A0B30V21CA 4A7A6024E, 4TTX6024E 8°
*AM8A0C36V31CA 4A7A6036E, 4TTX6036E 8°
*AM8A0C48V41CA 4A7A6048E, 4TTX6048E 8°
*AM8A0B30V21CA 4TWZ0024A, 4A6Z0024A 9°
*AM8A0C36V31CA 4TWZ0036A, 4A6Z0036A 10°
*AM8A0C48V41CA 4TWZ0048A, 4A6Z0048A 12°
*AM8A0B30V21CA 4TTZ0024A, 4A7Z0024A 9°
*AM8A0C36V31CA 4TTZ0036A, 4A7Z0036A 11°
*AM8A0C48V41CA 4TTZ0048A, 4A7Z0048A 13°
* May be “A” or “T”
All other matches must be charged per the nameplate charging instructions.
