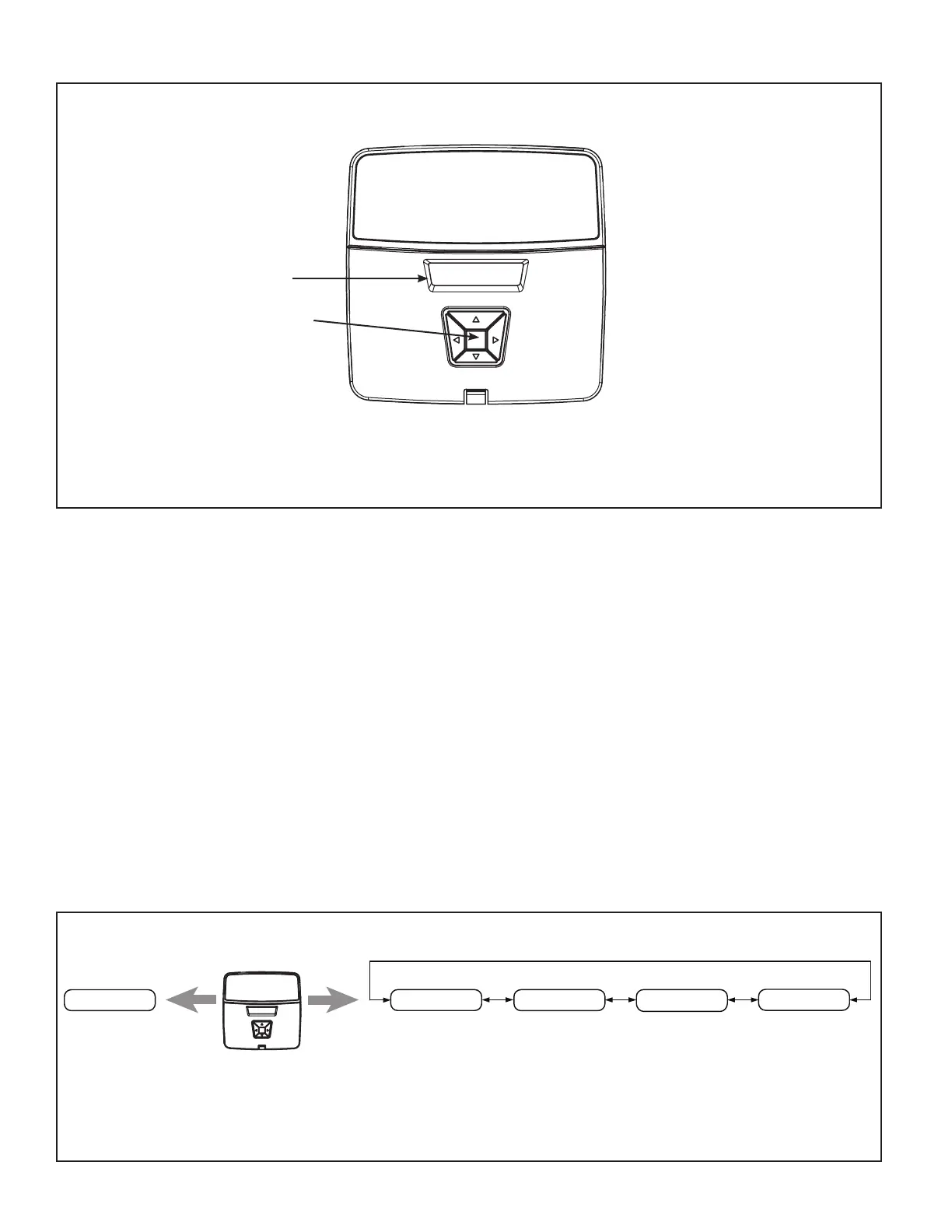

Display Assembly
Display Assembly
Viewing Window
Push left & right to scroll
through menu options
Push up & down to scroll
through setup menu
Push center button
to make selection
Display Assembly General Notes
Display Assembly General Notes
• Home Screen
o The System Status is shown continuously on the Home Screen.
The System Status will alternate with fault information if there
is an active fault. Low level faults do not appear on the Home
Screen.
• Technician Screens
o To Enter the technician menu section, press the Up/Down menu
keys simultaneously for 10 seconds.
o To Exit the technician menu section, press the Up/Down menu
keys simultaneously for 10 seconds.
o To move to the top of any menu tree, press the Left/Right menu
keys simultaneously for 1-2 seconds. Press the Left/Right
menu keys a second time for 1-2 seconds to return to the Home
Screen.
o While in a technician menu, after 5 minutes of inactivity, the
Home Screen will be displayed. This time can be increased to
20 minutes by pressing the Enter menu key for 2-3 seconds.
MONITOR MENU ↕
↔
ALERT MENU ↕
↔
Home Screen
SYSTEM STATUS
XXXXXXXXXXXXXX ↔
Technician Screen
CONFIG MENU ↕
↔
CONTROL MENU ↕
↔
To toggle between the Home Screen and the
Technician Screen menu, press the Up/Down
menu keys simultaneously for 10 seconds on
the Display Assembly.
