Trane Hyperion AAM8A0C48V41CA User Manual

TAM825
Temp.
°F
Temp.
°C
Thermistor
Resistance
Ohms
Volts DC
@ plug J10
Temp.
°F
Temp.
°C
Thermistor
Resistance
Ohms
Volts DC
@ plug J10
0 -17.8 83247 2.946
1 -17.2 80645 2.936 76 24.4 9990 1.649
2 -16.7 78133 2.926 77 25.0 9749 1.629
3 -16.1 75709 2.915 78 25.6 9515 1.609
4 -15.6 73368 2.904 79 26.1 9287 1.589
5 -15.0 71108 2.893 80 26.7 9065 1.569
6 -14.4 68926 2.882 81 27.2 8849 1.549
7 -13.9 66818 2.870 82 27.8 8639 1.530
8 -13.3 64783 2.859 83 28.3 8435 1.510
9 -12.8 62816 2.847 84 28.9 8236 1.490
10 -12.2 60916 2.835 85 29.4 8043 1.471
11 -11.7 59081 2.822 86 30.0 7855 1.452
12 -11.1 57307 2.810 87 30.6 7671 1.433
13 -10.6 55593 2.797 88 31.1 7493 1.414
14 -10.0 53936 2.784 89 31.7 7319 1.395
15 -9.4 52333 2.771 90 32.2 7150 1.376
16 -8.9 50783 2.757 91 32.8 6985 1.357
17 -8.3 49284 2.743 92 33.3 6825 1.339
18 -7.8 47834 2.729 93 33.9 6669 1.320
19 -7.2 46432 2.715 94 34.4 6516 1.302
20 -6.7 45076 2.701 95 35.0 6368 1.284
21 -6.1 43764 2.686 96 35.6 6224 1.266
22 -5.6 42494 2.671 97 36.1 6083 1.248
23 -5.0 41266 2.656 98 36.7 5946 1.231
24 -4.4 40077 2.641 99 37.2 5812 1.213
25 -3.9 38927 2.626 100 37.8 5682 1.196
26 -3.3 37813 2.610 101 38.3 5555 1.179
27 -2.8 36736 2.594 102 38.9 5432 1.162
28 -2.2 35692 2.578 103 39.4 5311 1.145
29 -1.7 34681 2.561 104 40.0 5194 1.128
30 -1.1 33703 2.545 105 40.6 5079 1.112
31 -0.6 32755 2.528 106 41.1 4968 1.095
32 0.0 31838 2.511 107 41.7 4859 1.079
33 0.6 30949 2.494 108 42.2 4753 1.063
34 1.1 30087 2.477 109 42.8 4649 1.047
35 1.7 29253 2.459 110 43.3 4548 1.032
36 2.2 28445 2.442 111 43.9 4450 1.016
37 2.8 27661 2.424 112 44.4 4354 1.001
38 3.3 26902 2.406 113 45.0 4260 0.986
39 3.9 26166 2.388 114 45.6 4169 0.971
40 4.4 25452 2.369 115 46.1 4079 0.956
41 5.0 24761 2.351 116 46.7 3992 0.942
42 5.6 24090 2.332 117 47.2 3908 0.927
43 6.1 23440 2.313 118 47.8 3825 0.913
44 6.7 22810 2.294 119 48.3 3744 0.899
45 7.2 22198 2.275 120 48.9 3665 0.885
46 7.8 21605 2.256 121 49.4 3588 0.871
47 8.3 21030 2.237 122 50.0 3513 0.858
48 8.9 20472 2.217 123 50.6 3440 0.845
49 9.4 19931 2.197 124 51.1 3368 0.831
50 10.0 19405 2.178 125 51.7 3298 0.818
51 10.6 18896 2.158 126 52.2 3230 0.806
52 11.1 18401 2.138 127 52.8 3163 0.793
53 11.7 17921 2.118 128 53.3 3098 0.781
54 12.2 17455 2.098 129 53.9 3034 0.768
55 12.8 17002 2.078 130 54.4 2972 0.756
56 13.3 16563 2.058 131 55.0 2912 0.744
57 13.9 16137 2.037 132 55.6 2853 0.732
58 14.4 15723 2.017 133 56.1 2795 0.721
59 15.0 15320 1.997 134 56.7 2738 0.709
60 15.6 14930 1.976 135 57.2 2683 0.698
61 16.1 14550 1.956 136 57.8 2629 0.687
62 16.7 14182 1.935 137 58.3 2576 0.676
63 17.2 13824 1.915 138 58.9 2525 0.665
64 17.8 13476 1.894 139 59.4 2474 0.655
65 18.3 13138 1.874 140 60.0 2425 0.644
66 18.9 12810 1.853 141 60.6 2377 0.634
67 19.4 12491 1.833 142 61.1 2330 0.624
68 20.0 12181 1.812 143 61.7 2284 0.614
69 20.6 11879 1.792 144 62.2 2239 0.604
70 21.1 11586 1.771 145 62.8 2195 0.594
71 21.7 11301 1.751 146 63.3 2153 0.585
72 22.2 11024 1.730 147 63.9 2111 0.575
73 22.8 10754 1.710 148 64.4 2070 0.566
74 23.3 10492 1.690 149 65.0 2030 0.557
75 23.9 10238 1.669 150 65.6 1990 0.548

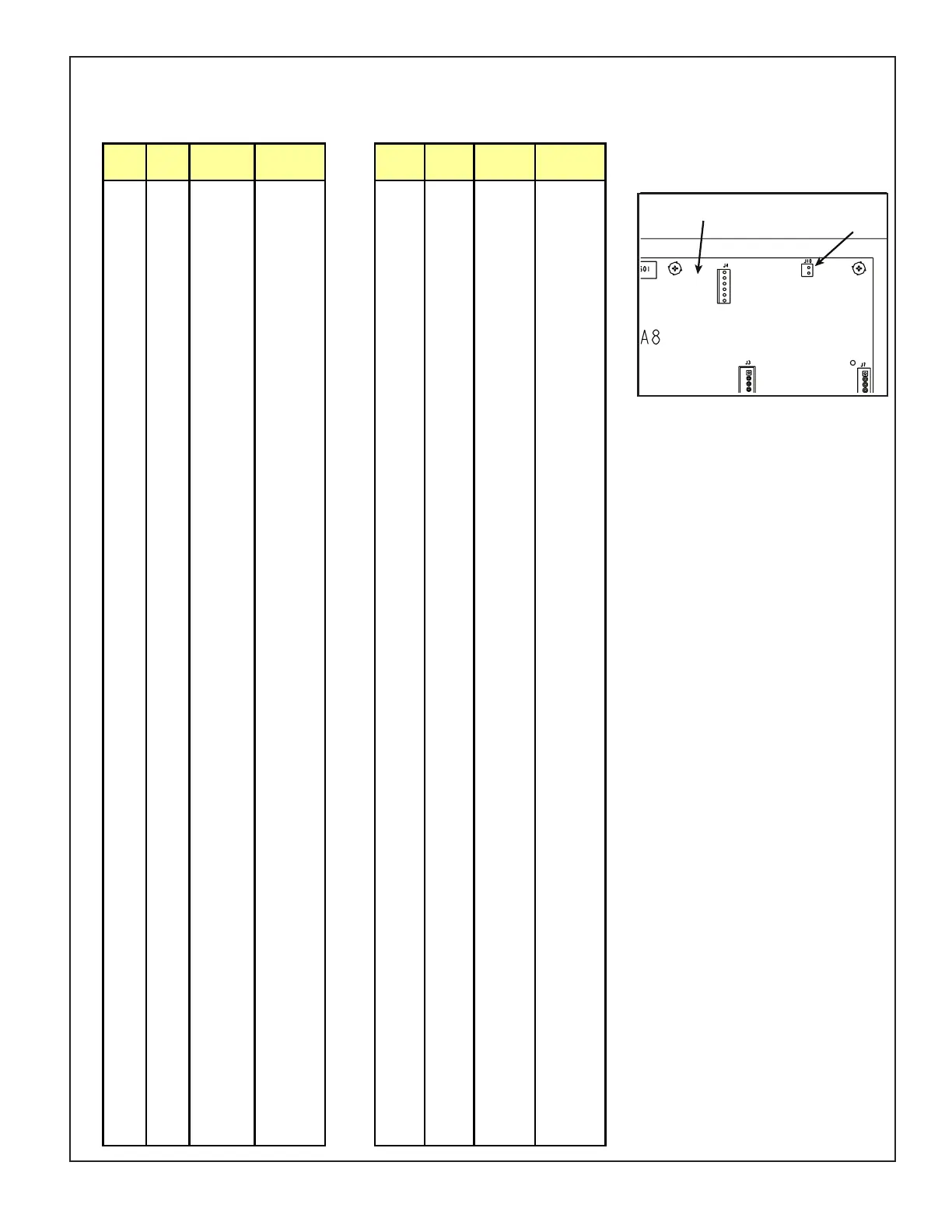

AFC SUPPLY AIR TEMPERATURE SENSOR TABLE
Airflow Control (AFC)
J10
