Trane IntelliPak SAHL Series User Manual

RT-SVX36G-EN 33
Installation

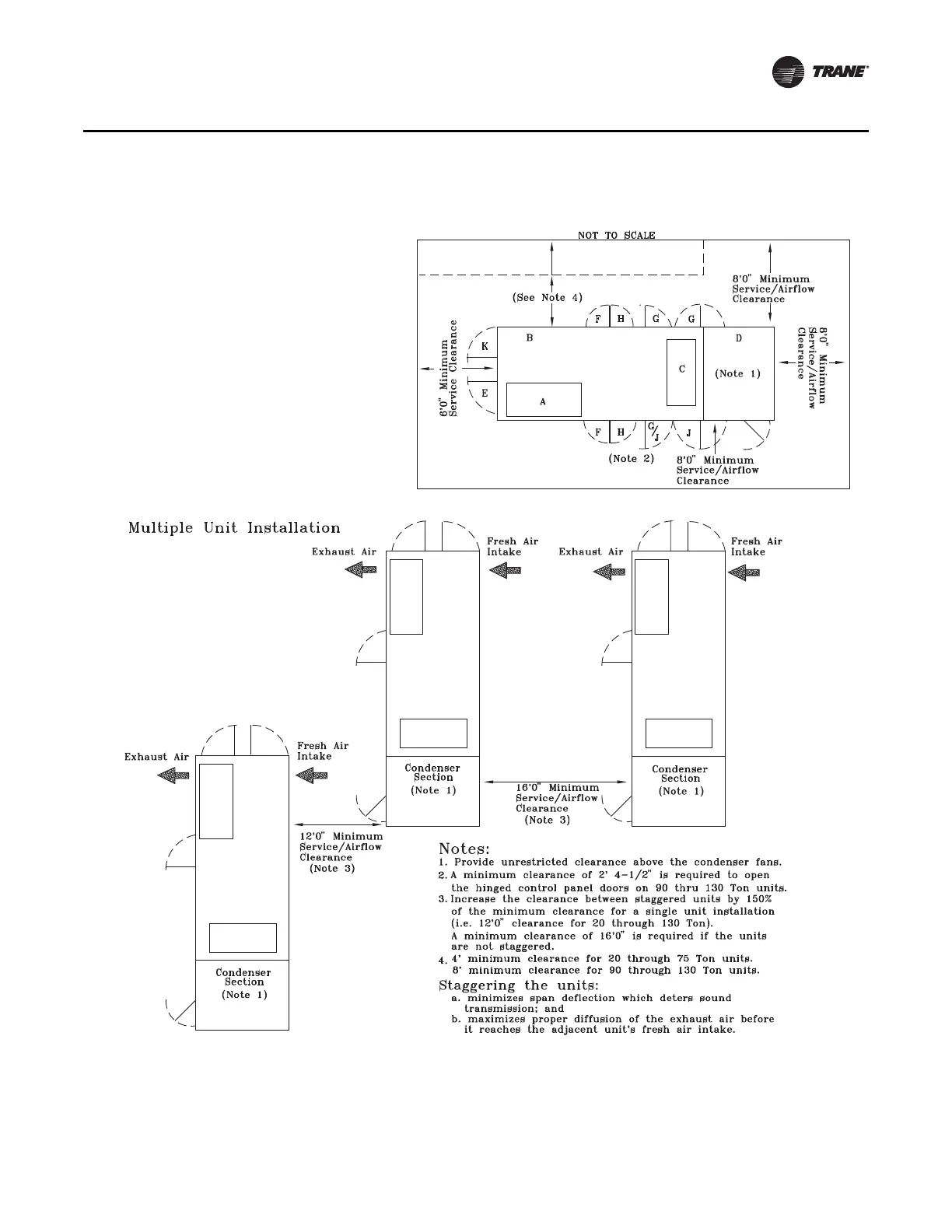

Figure 8. Minimum operation and service clearances for single and multiple unit installation
L
L
M
Return Air Opening
Fresh Air Intake
Supply Air Opening
Condenser Section
Optional 2’10-3/4” Exhaust/Return Access Door (180° swing)
Hinged 2’10-3/4” Filter Access Door (180° swing)
Hinged 2’10-3/4” Heater Access Door (180° swing)
Hinged 2’10-3/4” Supply Fan Access Door (180° swing) (90-130 ton)
Hinged 2’4-1/2” Control Panel Door (180° swing) (90-130 ton)
Hinged 2’10-3/4” VFD Access Door (180° swing)
Hinged 2’10-3/4” Evap Condenser Access Door (180° swing)
Hinged 2’8” Control Panel Door (180° swing) (20-36 ton)
Hinged 3’6” Control Panel Door (180° swing) (40-89 ton)
A
B
C
D
E
F
G
H
J
K
L
M
=
=
=
=
=
=
=
=
=
=
=
=
Single Unit Installation
Legend
