Trane IntelliPak SFHL Series

36 RT-SVX36G-EN
Installation

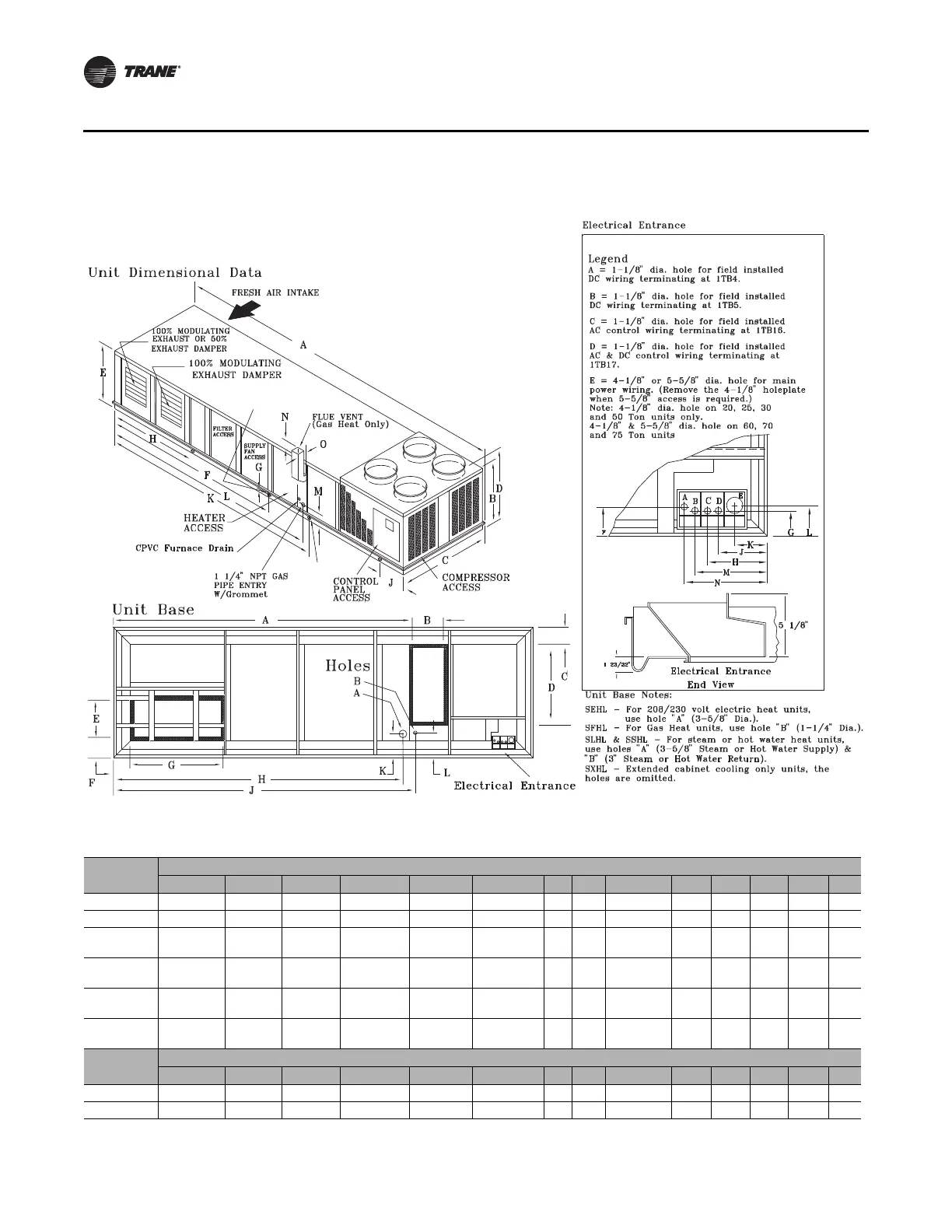

Figure 10. SEHL, SFHL, SLHL, SSHL, SXHL units (20 - 89 ton) Use Ta b l e 7 , Ta b l e 8 and Ta b l e 9 .
DRAIN HOLE
1” NPT CONDENSATE
DRAIN CONNECTION (Both Sides)
Table 7. Unit Dimensional Data
Unit Size
Air-Cooled Unit Dimensions
A B C D E F G H J K L M N O
20 & 25 Ton 24'-1 3/8" 6’-9” 7'-6 1/2" 7’-3 1/4” 3'-9 5/16" 13'-3" 1" 7' 1'-3 1/2" 16'-7" 16'-6" 8 1/8" 6 1/4" 9"
30 Ton 24'-1 3/8" 6’-9” 7'-6 1/2" 7’-3 1/4” 4'-9 5/16" 13'-3" 1" 7' 1'-3 1/2" 16'-7" 16'-6" 8 1/8" 6 1/4" 9"
40 Ton 32'-10 1/2” 6’-9” 7'-6 1/2" 7’-3 1/4” 5'-9 5/16" 15'-11 1/8" 1" 8' 2'-5" 19'-7"
See
Note
8 1/8" 6 1/4" 9"
50 Ton 32'-10 1/2" 6’-9” 7'-6 1/2" 7’-3 1/4” 6'-9 5/16" 15'-11 1/8" 1" 8' 2'-5" 19'-7"
See
Note
8 1/8" 6 1/4" 9"
60 Ton 32'-10 1/2” 6’-9” 9'-8" 7’-3 1/4” 5'-9 5/16" 15'-11 1/8" 1" 8' 2'-5" 19'-7"
See
Note
8 1/8" 6 1/4" 9"
70 & 75 Ton 32'-10 1/2” 6’-9” 9'-8" 7’-3 1/4” 5'-9 5/16" 15'-11 1/8" 1" 8' 2'-5” 19'-7"
See
Note
8 1/8" 6 1/4" 9"
Unit Size
Evaporative Condensing Unit Dimensions
A B C D E F G H J K L M N O
24 & 39 Ton 26’5 1/2” 6’-9” 7’-6 1/2” 8’-4 3/4” 3’-9 5/16” 13’-3” 1" 7” 1'-3 1/2" 16'-7" 16'-6" 8 1/8" 6 1/4" 9"
36 Ton 26’5 1/2” 6’-9” 7’-6 1/2” 8’-4 3/4” 4’-9 5/16” 13’-3” 1" 7” 1'-3 1/2" 16'-7" 16'-6" 8 1/8" 6 1/4" 9"
