Trane Koolman R410A - Dimensions; Mini Casing

6
PKGP-SVX03D-EN
Dimensions
Mini casing

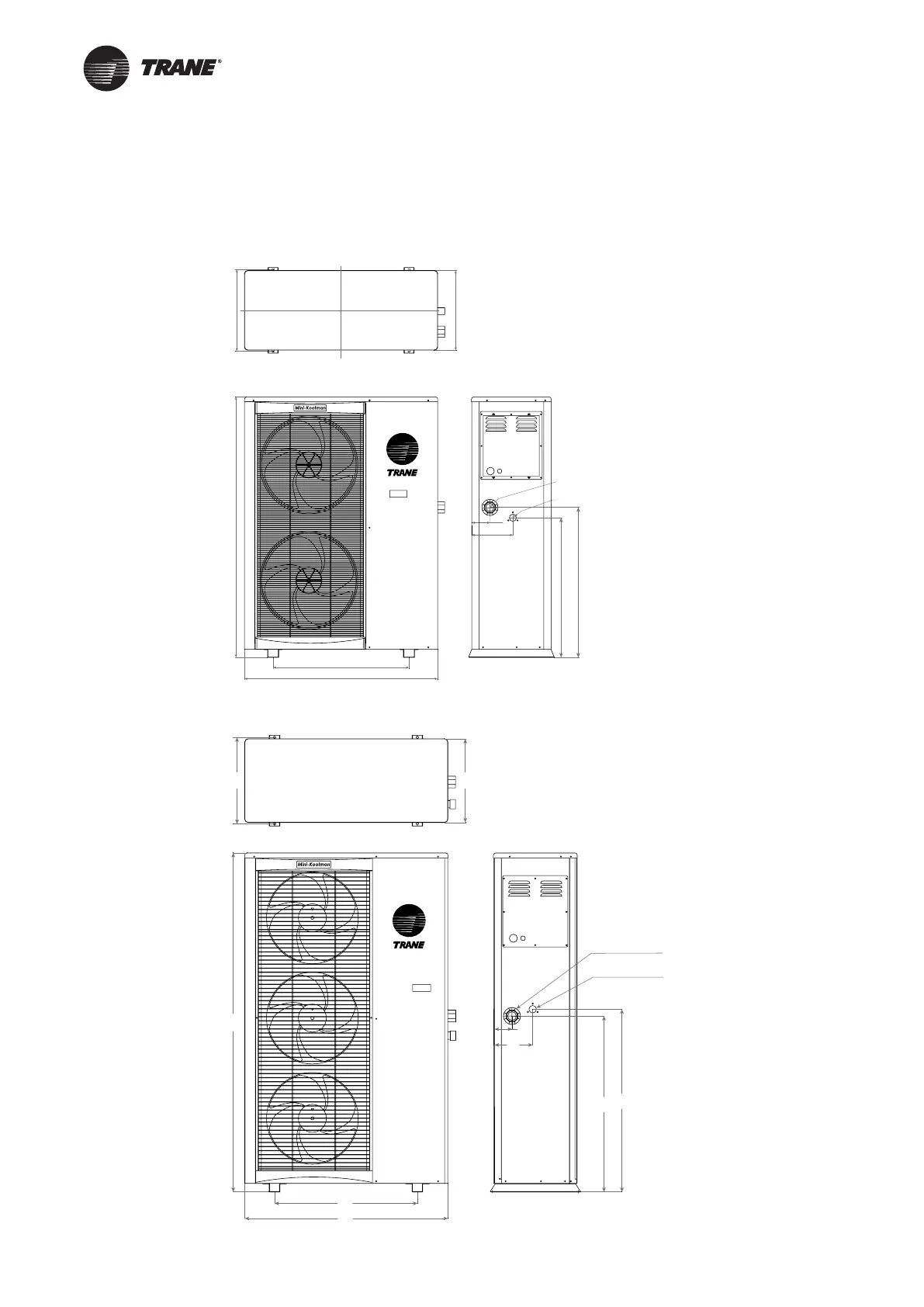

CGAK/R-0305R/0306R/0505R/0605R (Unit: mm)
CGAK/R-0705 R (Unit: mm)
90
74 0
950
660
1285
402
393
203
690
Ø1"Water outle
t
Ø1"Water inlet
86
402 393
1590
660
950
824
856
183
Inlet: PT RP 1¼"
Outlet: PT RP 1¼"
