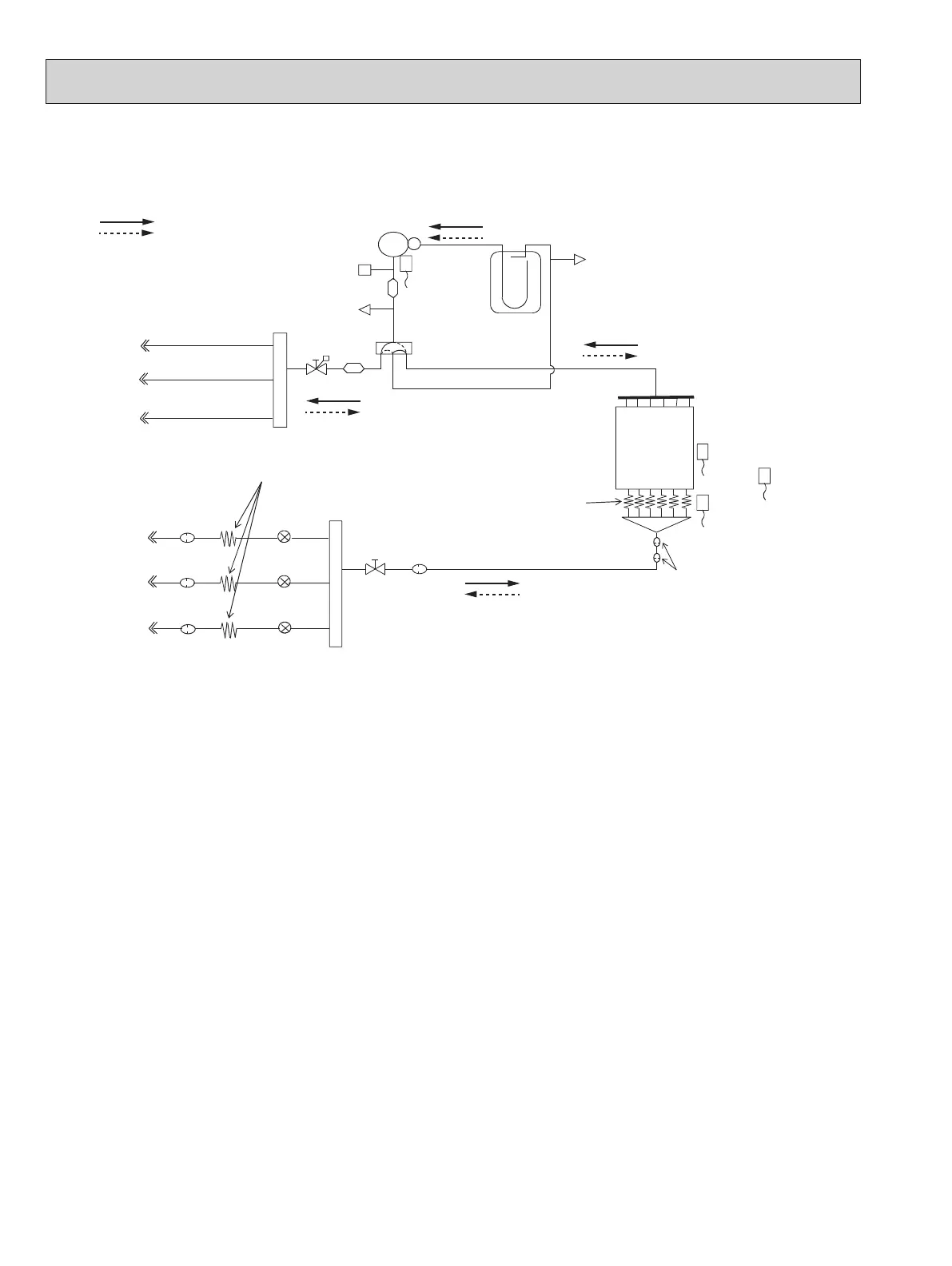

Trane NTXMPH24A132AA - Page 30

30
Unit: inch (mm)
NTXMMX24A132AA
NTXMMX30A132AA
OFF Refrigerant flow in heating
ON Refrigerant flow in cooling
R.V.coil
Outdoor
heat exchanger
Compressor
Muffler
4-way valve
High pressure switch
ø 1/4 (ø6.35)
ø 3/8 (ø9.52)
Indoor unit B
ø 1/2 (ø12.7)
Indoor unit A
Accumulator
Indoor unit C
ø 1/4 (ø6.35)
LEVA
Distributor
Stop valve
(with service port)
Capillary tube
Capillary tube
O.D.0.16 x I.D.0.11 x 3.94
(ø4.0 x ø2.8 x 100)
Strainer
#100
Union
Union
Header(Gas)
Stop valve
Strainer
#100
Header (Evaporator)
Service port
ø 1/4 (ø6.35)
ø 3/8 (ø9.52)
Sub
muffler
Ambient
temperature
thermistor
RT65
Outdoor
heat exchanger temperature
thermistor
RT68
Compressor shell
temperature
thermistor
RT62
Defrost
temperature
thermistor
RT61
Indoor unit B
Indoor unit A
Indoor unit C
Service port
Strainer
#100
Strainer
#100
LEVB
LEVC
Strainer
#50
OBHT702
