01
1 SAFETY
2 GENERAL
2.1 Unit Dimensions
The coil can be positioned for bottom return air in the upflow and horizontal right applications. It must be positioned for top
return when in downflow and horizontal left applications. See Figure 2-1. For furnace applications, the coil must be installed
downstream (in the air outlet) of the furnace
WARNING
Disconnect all power to the unit before starting any service and maintenance. Failure to do so could cause severe
electrical shock resulting in personal injury or death.
Installation or servicing of this unit can be hazardous due to parts, components and system pressure.
Qualified and proper trained service personnel should perform installation and repair. Failure to do so could cause
severe electrical shock resulting in personal injury or death.
This is a safety alert symbol indicating a potential hazardous situation ,which could result in personal injury, property
and/or product damage or death.
NOTE
This coil comes with a factory-installed heat shield on the drain pan.

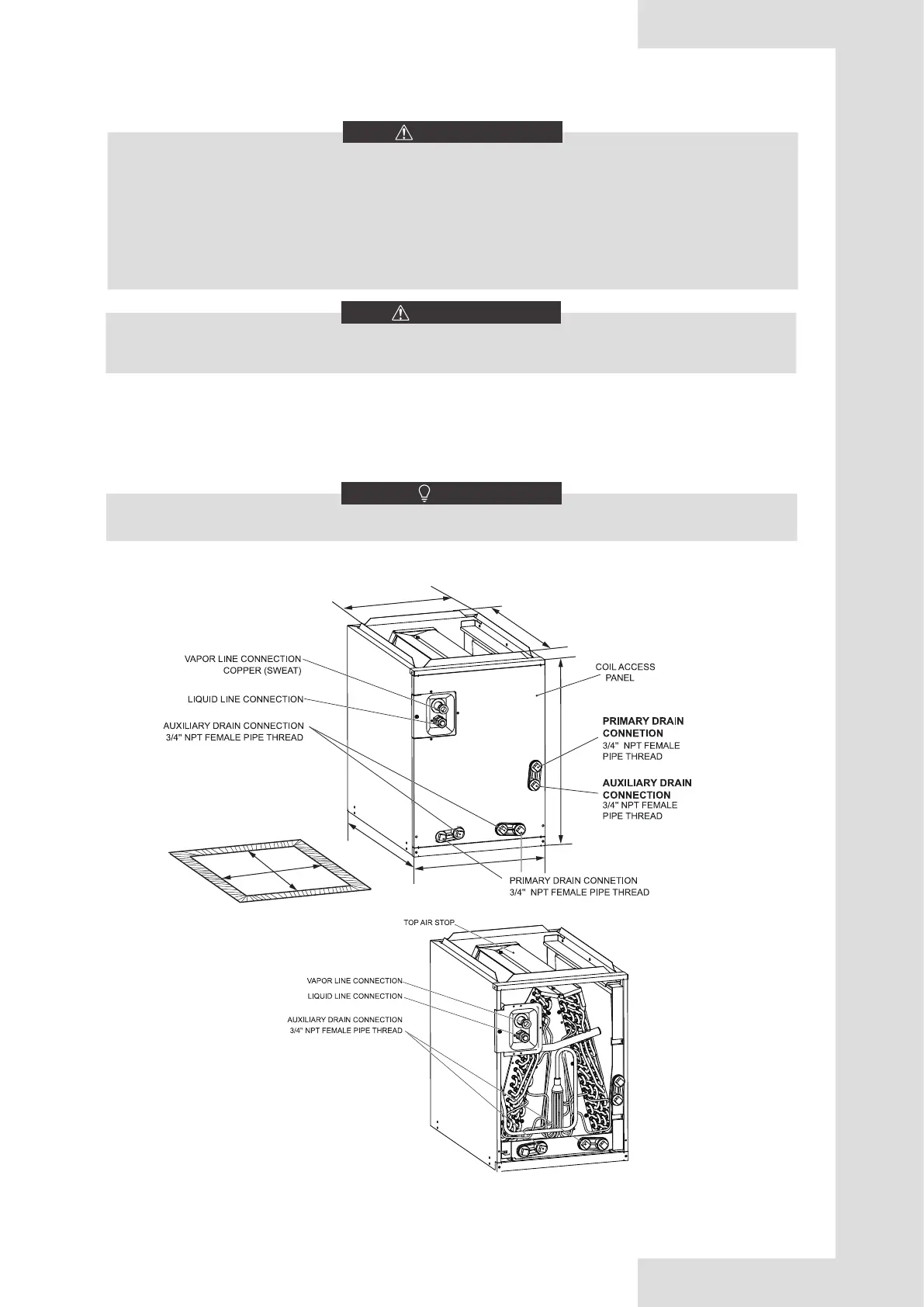

Fig.2-1 CASED DIMENSIONS AND COMPONENT LOCATION
W
W1
H
A
19"
21"
21"
This is a safety alert symbol indicating a potential hazardous situation ,which could result in moderate personal injury,
and/or property and product damage.
CAUTION
