ACC-SVN240A-EN 7
Installation
Note: See Figure 3 and Figure 4 for discharge air temperature.
WARNING
Hazardous Voltage!
Failure to follow instructions below could result in death or serious injury.
Power down the outdoor unit before making contact with the inverter circuit board. Follow
proper lockout/tagout procedures to ensure the power cannot be inadvertently
energized.Wait for at least 15 minutes to allow the unit to fully discharge high DC voltage.
Confirm the unit is fully discharged using a CAT III or IV voltmeter rated per NFPA 70E.

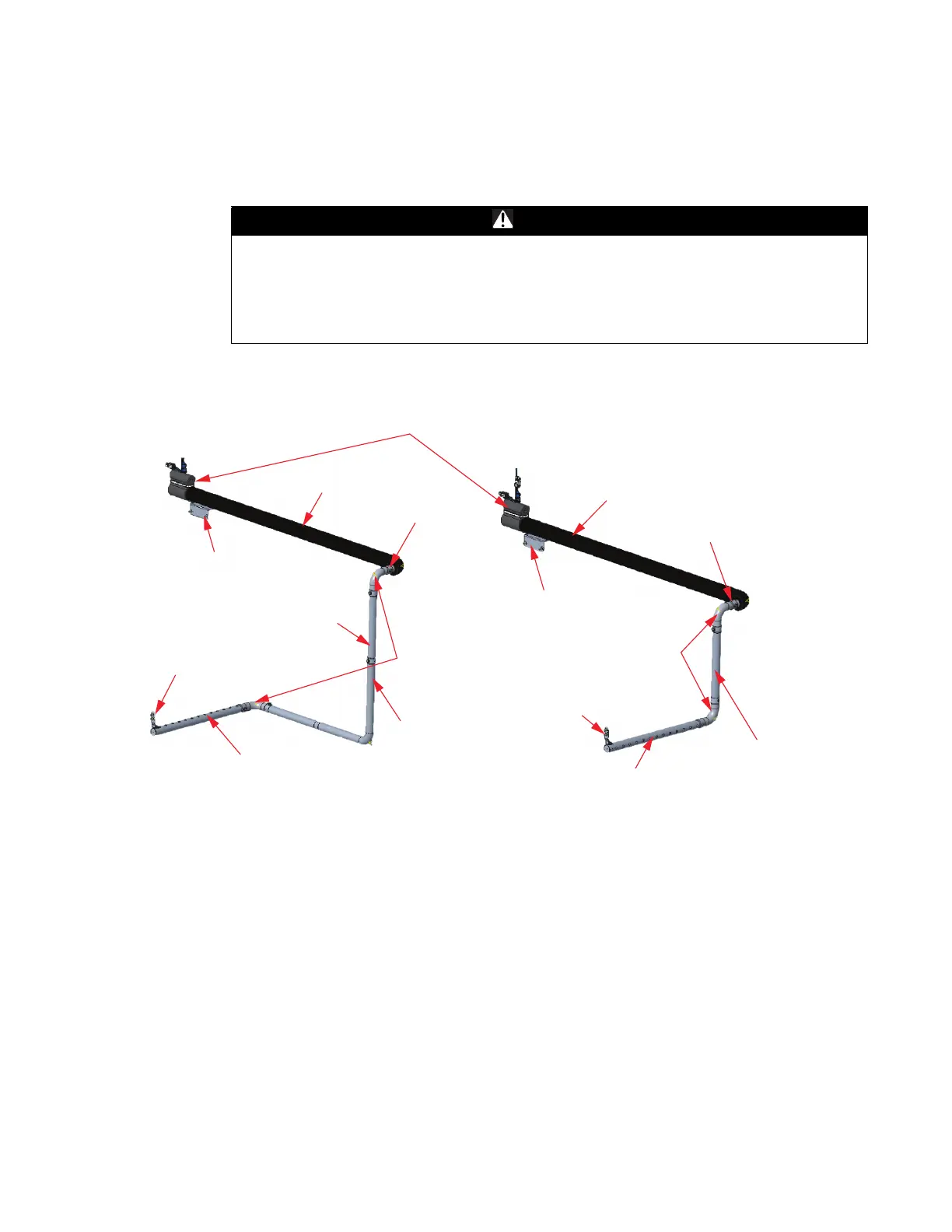

Figure 1. T/WS*072-120 downflow and horizontal - FIADAST003 and FIADAST005 electric heat
Module, indoor fan,
temperature sensing
Bracket,
DAS support
Bracket,
DAS support
Insulation
Insulation
Tube,discharge
air sensing
Tube,discharge
air sensing
Tube, discharge
air rotating
Tube, discharge
air rotating
Tube, discharge
air sensing, convertible
Tube, discharge
air sensing,
convertible
Tube, discharge
air connecting
Tube, discharge
air sensing, sampling
Tube, discharge
air sensing, sampling
Bracket, discharge
air sensor, top
Bracket, discharge
air sensor, top
Downflow
Horizontal
