Installation

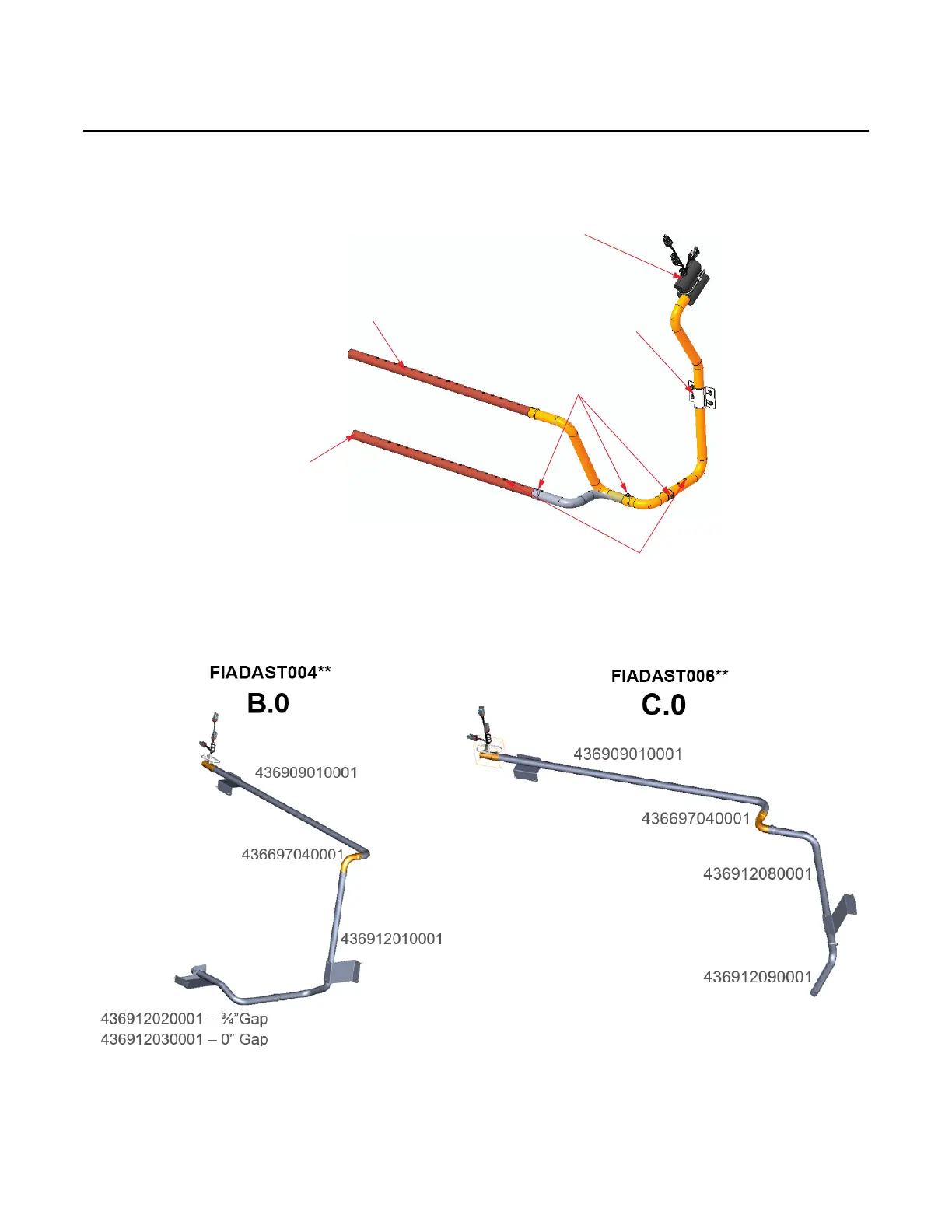

Figure 5. For model: D cabinet (digit 39 = D) downflow installation
Temperature sensing assembly with
insulation
Secure clamp with
screws into fan wall
Secure four tubes
with screws
Tube position with
5x5 Gas HX (digit 11 = L),
FIADAST007*
Tube position with
7x7, 8x8 Gas HX,
Electric Heat or Cooling Only,
FIADAST008*
Sensing tube holes face
vertically upward towards fan
Figure 6. FIADAST004_B.0 and FIADAST006_C.0 - gas heat. See Figure 7.
