12 RT-SVX22J-EN
Unit Dimensions
Unit Clearances
Figure 1, p. 12 illustrates the minimum operating and
service clearances for either a single or multiple unit
installation. These clearances are the minimum distances
necessary to assure adequate serviceability, cataloged
unit capacity, and peak operating efficiency.
Providing less than the recommended clearances may
result in condenser coil starvation, “short-circuiting” of
exhaust and economizer airflows, or recirculation of hot
condenser air.

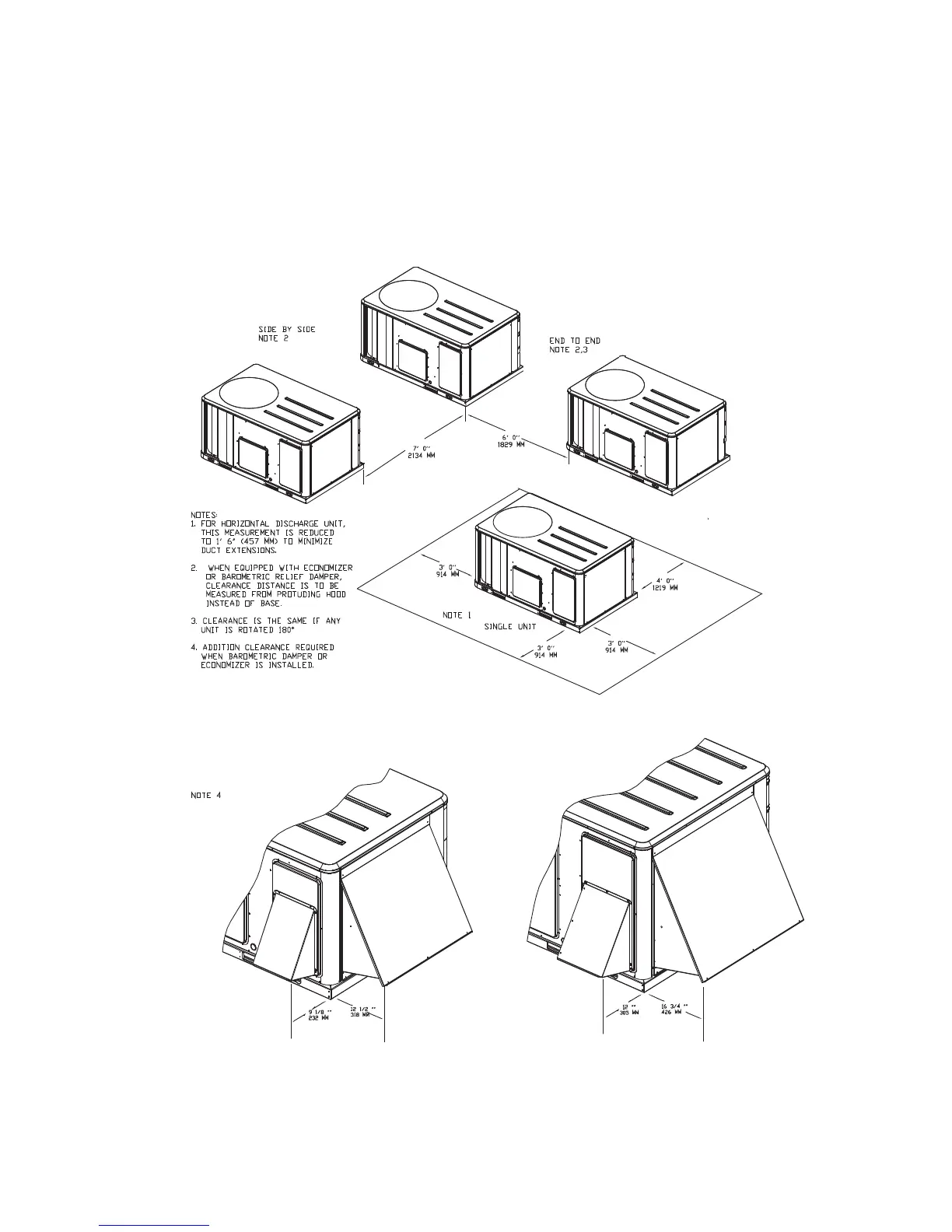

Figure 1. Typical installation clearances for single & multiple unit applications
TSC036-060E & THC036-037E UnitsTSC036-060E & THC036-037E Units
TSC072-120F, THC047-120E, & THC048-092F UnitsTSC072-120F, THC047-120E, & THC048-092F Units
