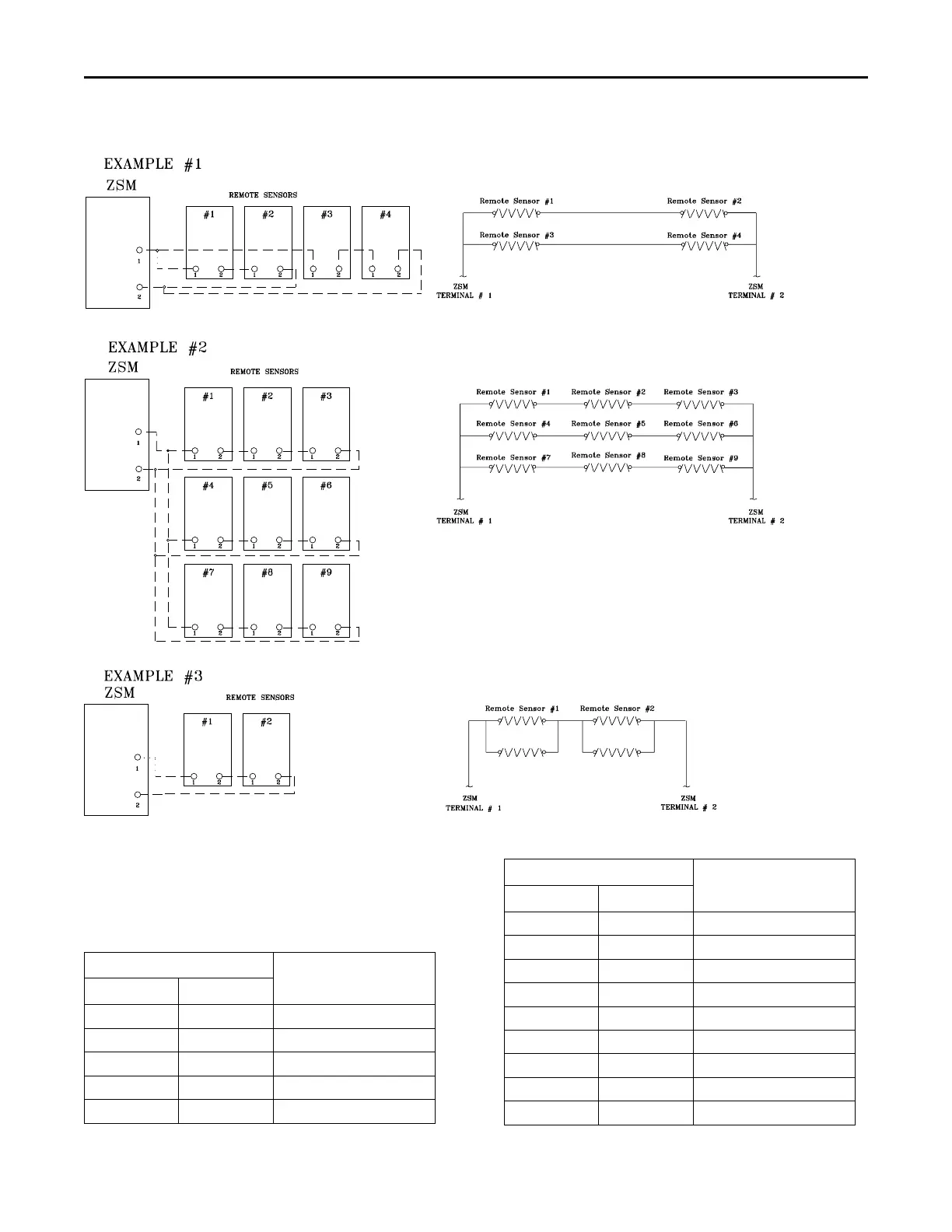

Figure 31. Examples
Note: Wiring pin numbers are for reference only. There are
multiple smoke detector systems that could have
differently numbered pins. For correct wiring details,
please refer to the specific smoke detector literature
that accompanied this unit.
Table 9. Temperature vs. resistance
Temperature
Nominal Resistance
(kOhms)
Degrees °F Degrees °C
-20 -28.9 170.1
-15 -26.1 143.5
-10 -23.3 121.4
-5 -20.6 103.0
0 -17.8 87.56
Table 9. Temperature vs. resistance (continued)
Temperature
Nominal Resistance
(kOhms)
Degrees °F Degrees °C
5 -15.0 74.65
10 -12.2 63.80
15 -9.4 54.66
20 -6.7 46.94
25 -3.8 40.40
30 -1.1 34.85
35 1.7 30.18
40° 4.4 26.22
45° 7.2 22.85
