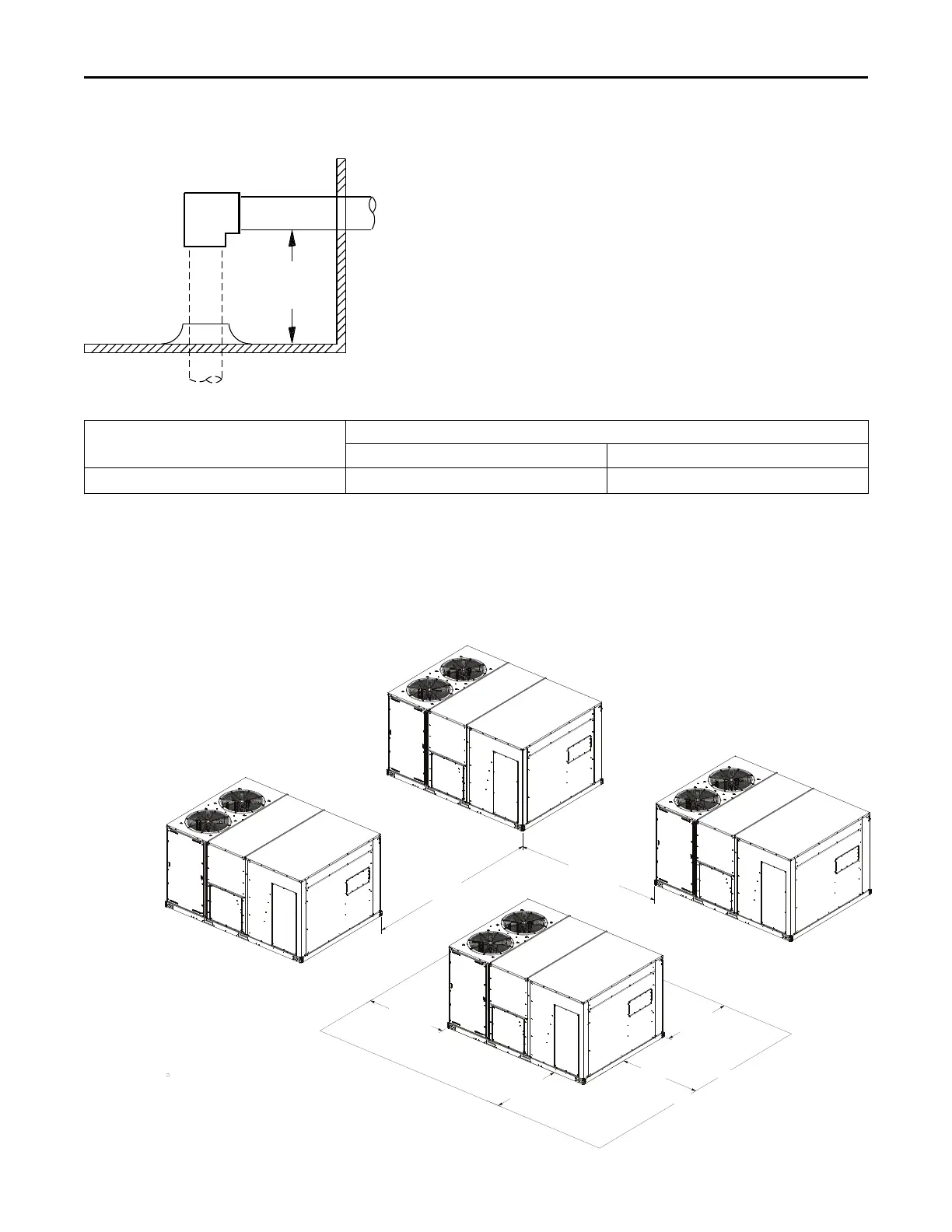

Figure 10. 12 to 25 tons duel fuel standard efficiency - gas pipe height
Note: Height of gas pipe required from inside unit base to gas shut off assembly (factory provided).
Model
Dimension A
inch mm
DSJ (150 – 300)A
1 3/6 30
Clearances
Figure 11, p. 17 illustrates the minimum operating and
service clearances for either a single or multiple unit
installation. These clearances are the minimum distances
necessary to assure adequate serviceability, cataloged unit
capacity, and peak operating efficiency. Providing less than
the recommended clearances may result in condenser coil
starvation, “short-circuiting” of exhaust and economizer
airflows, or recirculation of hot condenser air.
Figure 11. Typical installation clearances for single and multiple unit applications
Notes:
1. When equipped with economizer
or barometric relief damper, clearance
distance is to be measured from
protruding hood instead of base.
2. Clearance is the same if any unit
is rotated 180
.
Side by Side
Note 1
End to End
Note 1, 2
7'0"
2134 MM
6'0"
1829 MM
4'0"
1219 MM
3'0"
914 MM
Single Unit
3'0" Without economizer/damper
914 MM
5'8" With economizer/damper
1727 MM
5'0"
1525 MM
