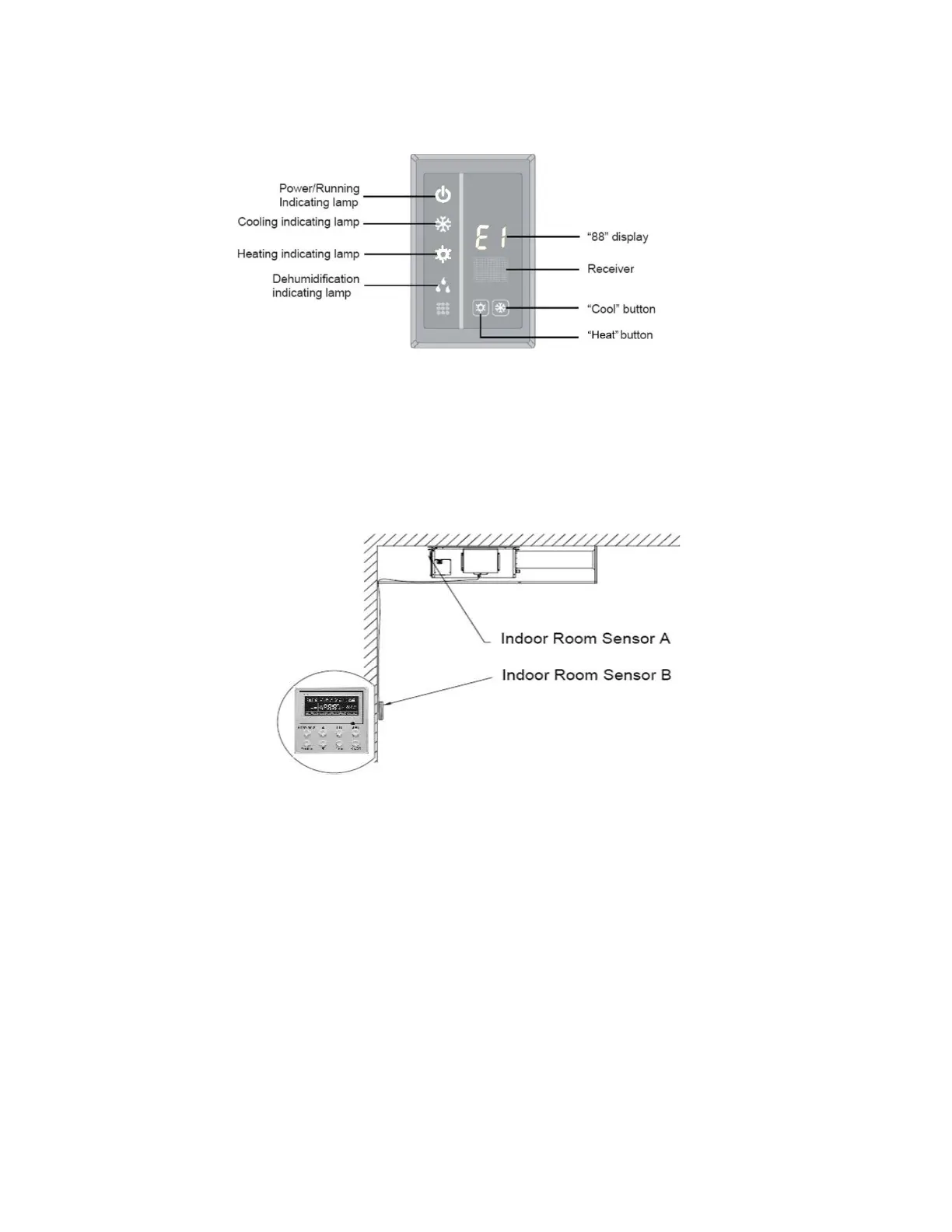

(2). Instructions to the error indicating lamps on the panel of the duct type unit
Fig. 6.1
7 Unit Function
7.1 Setting of Double Indoor Room Sensors
This series of ducted air-conditioning unit has two indoor room sensors. One is located at the air
intake of the indoor unit and the other one is located inside the wired controller. The user can select
either indoor temperature sensor based on the project requirements. (Refer to the section of wired
controller instructions for detailed operation.)
Fig. 7.1
7.2 Checking of Outdoor Ambient Temperature
The outdoor ambient temperature can be checked on the wired controller for the convenience of
users before going out. (Refer to the section of wired controller instructions for detailed operation.)
MS-SVN043-EN
