54 SS-SVX09A-EN
Installation
Refer to Wiring Notes on p. 55

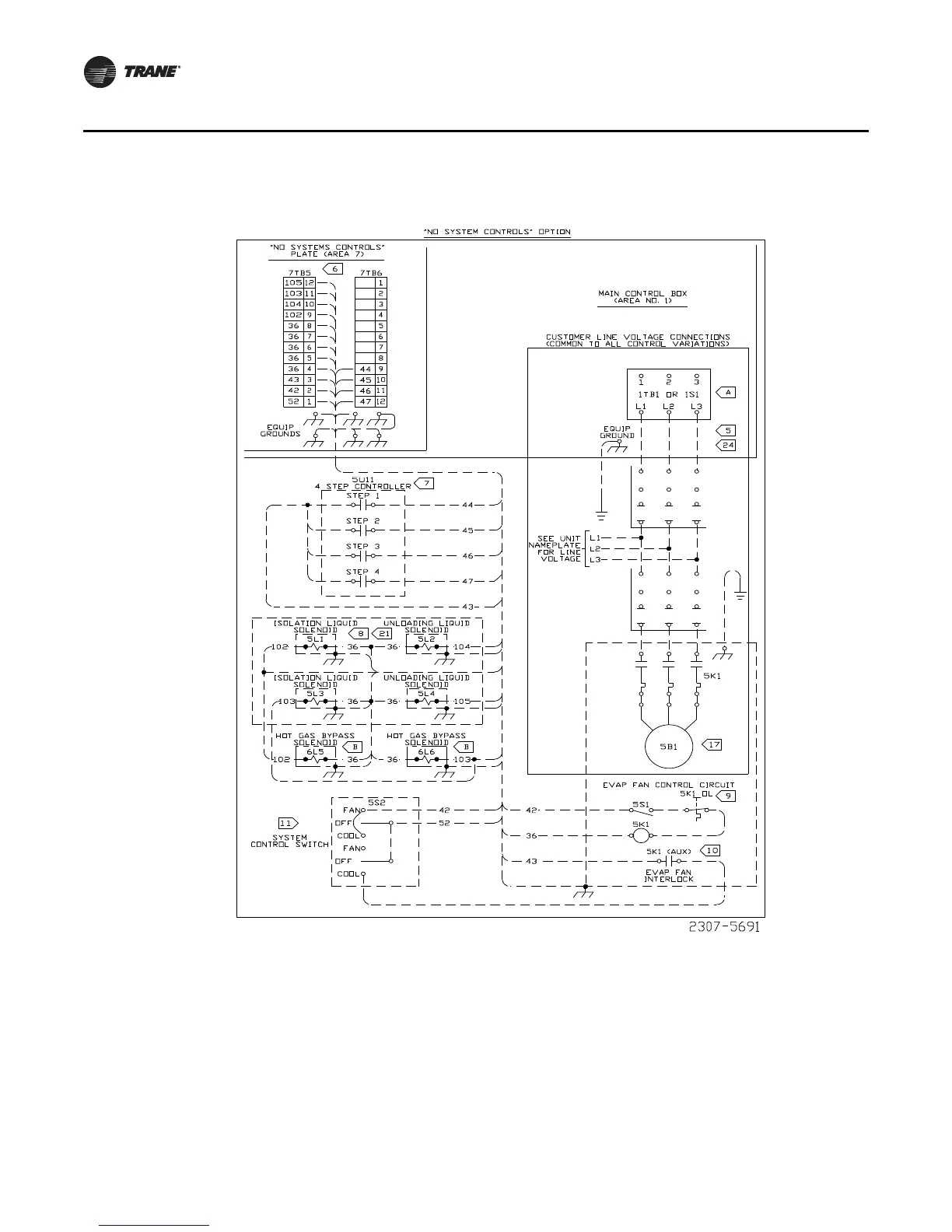

Figure 25. Field Connection Diagram or RAUC-C20 - C60 “No System Controls” Applications
