System Pre-Start Procedures

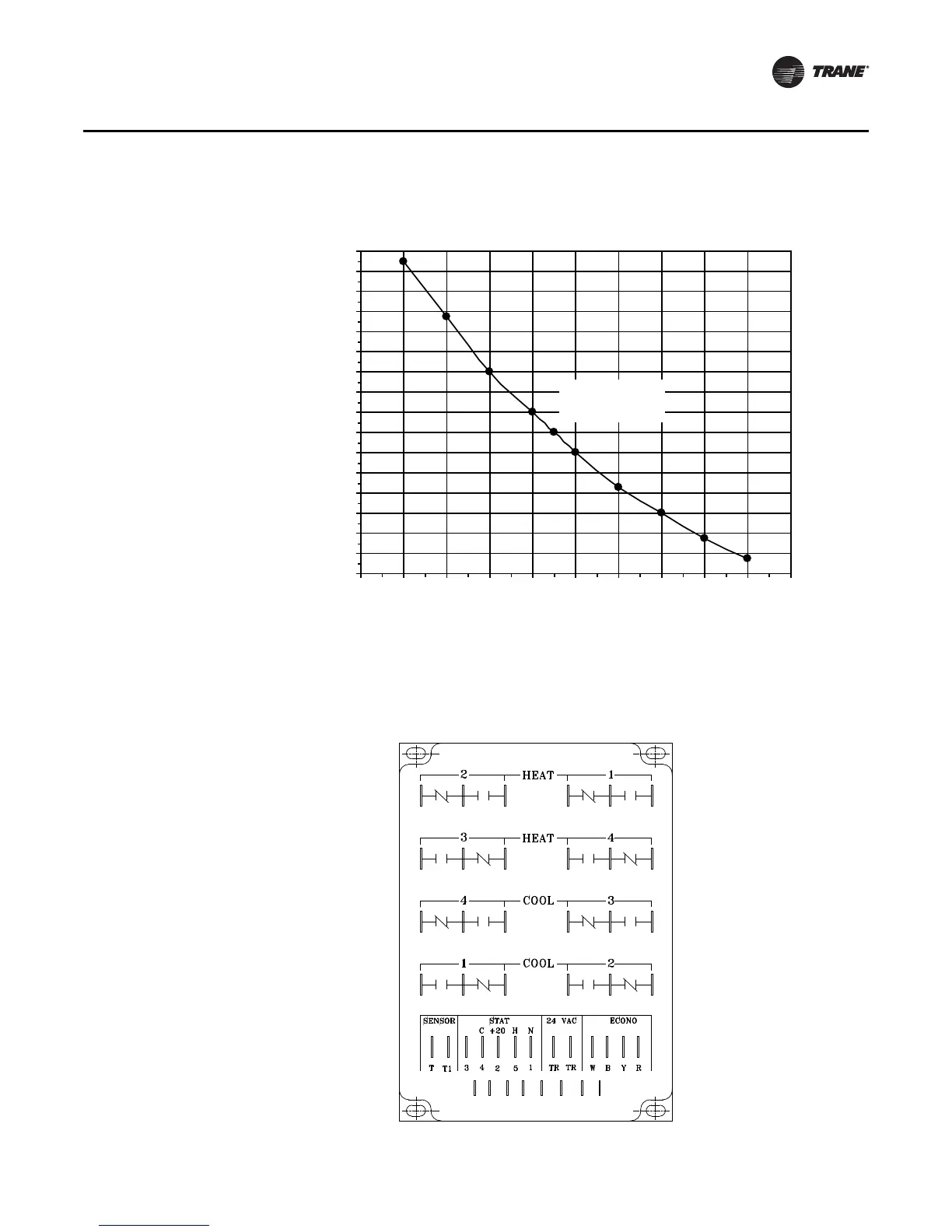

Figure 39. 6RT1 Discharge Duct Sensor “Temperature vs Resistance” Curve
Figure 40. W973 Master Energy Controller (MEC)
1600
1800
2000
2200
2400
2600
2800
3000
3200
3400
3600
3800
4000
4200
4400
4600
4800
55 60 65 70 75 80 85 90 95 100 105
Temperature - Degree F (C)
Resistance (Ohms)
(16
o
C) (18
o
C) (21
o
C) (24
o
C) (27
o
C) (29
o
C) (32
o
C) (35
o
C)
3000 Ohms @
77
O
F (25
O
C)
