Trane RTHD Troubleshoot Manual

RLC-SVB05A-EN 9
IPC Overview and Troubleshooting
2 Insert the cable into the connector. The cable edges must be hooked beneath
the four cable retainer tabs. Push the cable into the connector to lock it
beneath these tabs.
3 Place the cover and wire over the base and hold in place. Crimp the connector
down using the Trane tool or a parallel jaw pliers
It is important to apply equal pressure across the jaws of the pliers.

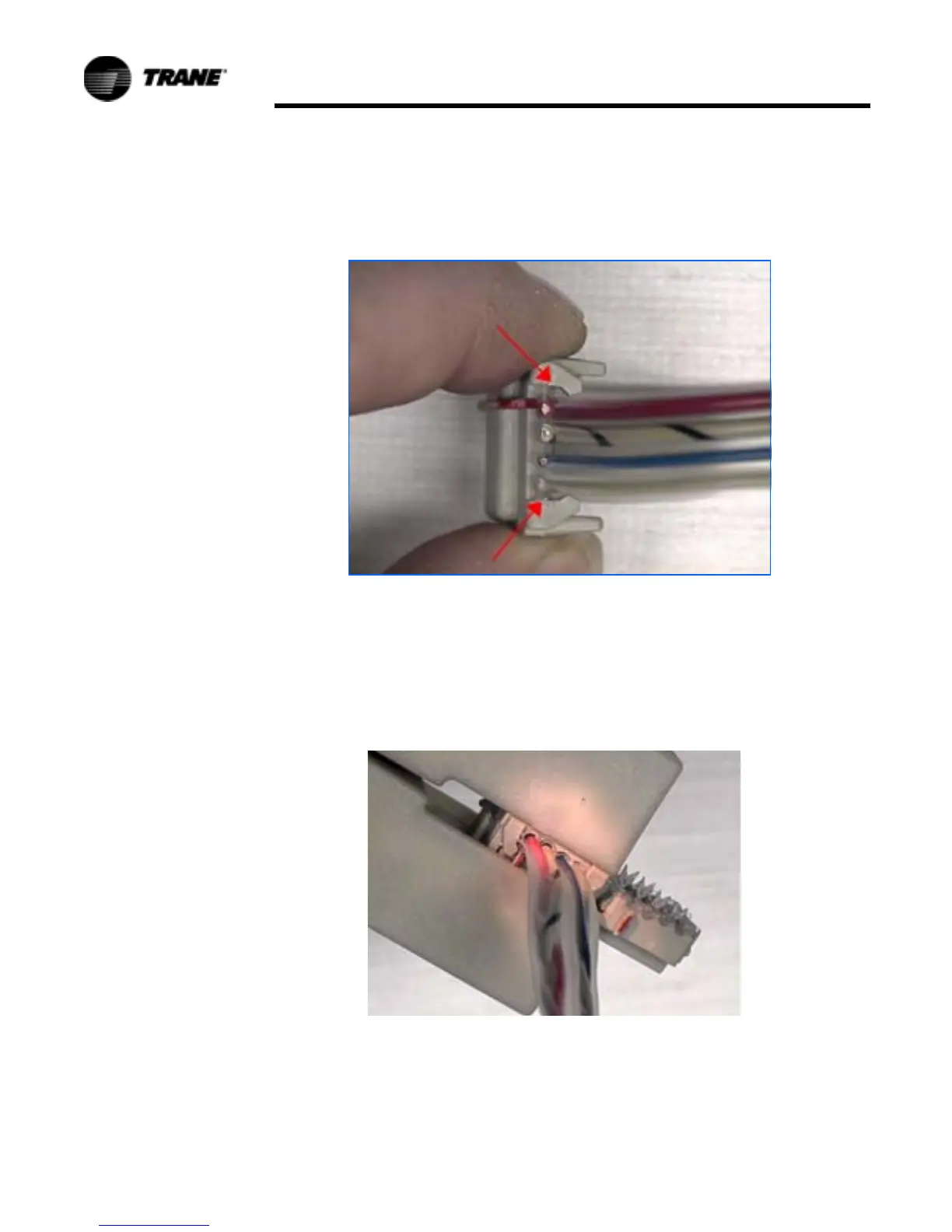

Figure 3. Cable and Connector
Figure 4. Pliers
