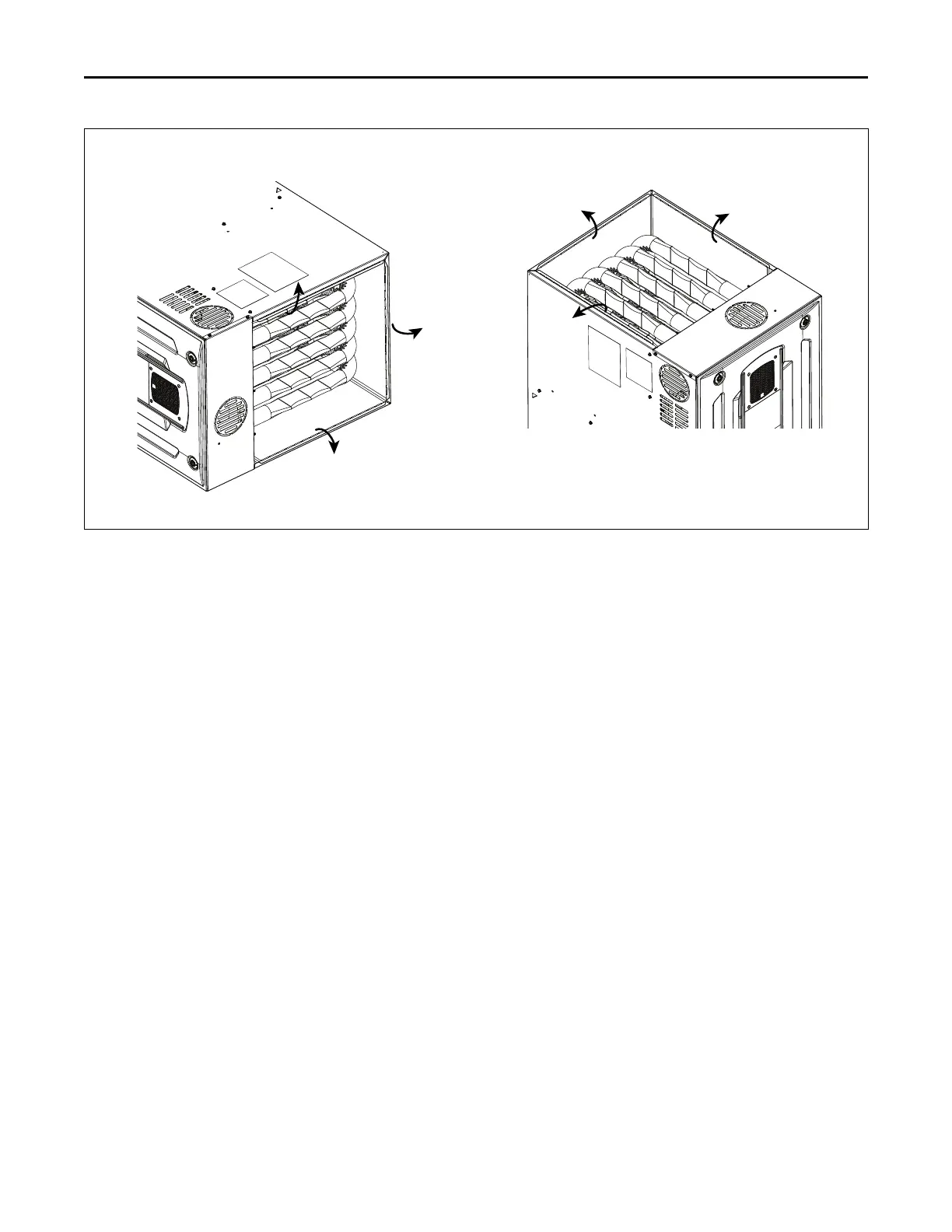

Horizontal Right and Downflow Furnace — no Coil
Important: A BAYBASE is required when installing the furnace on a combustible floor.
Refer to Step 1., Step 6., Step 7.
IInnssttaallllaattiioonn IInnssttrruuccttiioonnss
1. Bend furnace flanges up.
2. Bend furnace side flanges down.
3. Set the coil on top of the furnace.
4. Support the furnace and coil independently.
5. Screw through the coil cabinet into the furnace
flange. Guide holes are located on the coil.
6. Attach ducting.
7. Seal per local codes and requirements.
