Trane S8X1 Series User Manual

18
18-CE04D1-1B-EN
Note: For ease of installation, optional accessory part PIP02095 is
recommended for gas piping entering the right side of the
furnace.

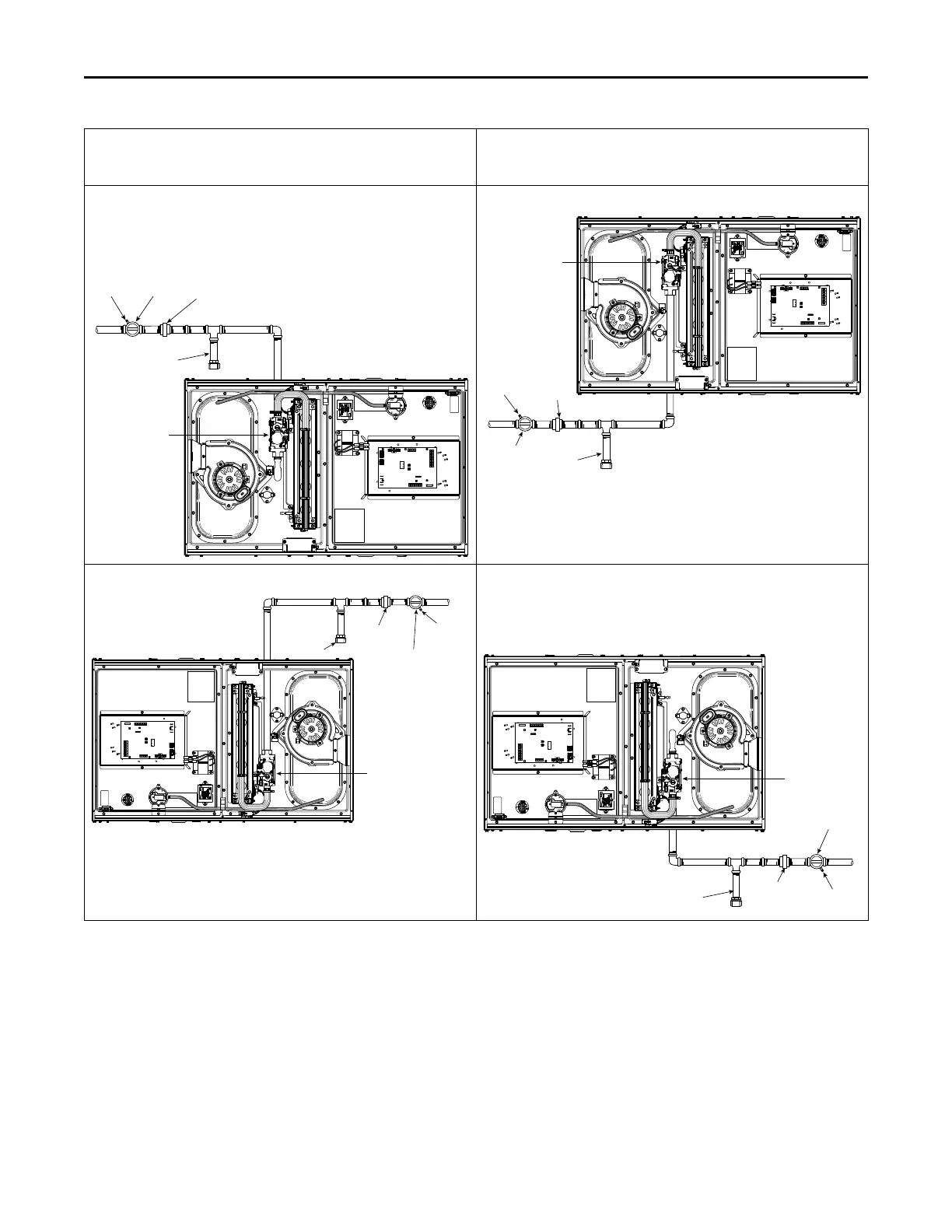

Furnace in horizontal left orientation with gas piping out top
Note: For ease of installation, optional accessory part PIP02095 is
recommended for gas piping entering the top of the furnace in
the horizontal left position.
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
1/8” NPT
Test Fitting
Furnace in horizontal left orientation with gas piping out bottom
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
1/8” NPT
Test Fitting
Furnace in horizontal right orientation with gas piping out top
Automatic Gas
Valve with
Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
1/8” NPT
Test Fitting
Furnace in horizontal right orientation with gas piping out bottom
Note: For ease of installation, optional accessory part PIP02095 is
recommended for gas piping entering the bottom of the
furnace in the horizontal right position.
Automatic Gas Valve
with Manual Shut-o
Main Manual
Shut-o Valve
Ground
Union
Joint
Drip Leg
1/8” NPT
Test Fitting
FFuurrnnaaccee GGeenneerraall IInnssttaallllaattiioonn

Trane S8X1 Series Specifications

General

Blower Motor	Multi-speed
Ignition System	Hot Surface Ignition
Fuel Type	Natural Gas or Propane
Heating Stages	Single-stage
Warranty	20-Year heat exchanger warranty, 5-Year parts warranty (with registration, warranty extends to 10-year parts warranty)
