Trane S8X1 Series User Manual

48
18-CE04D1-1B-EN

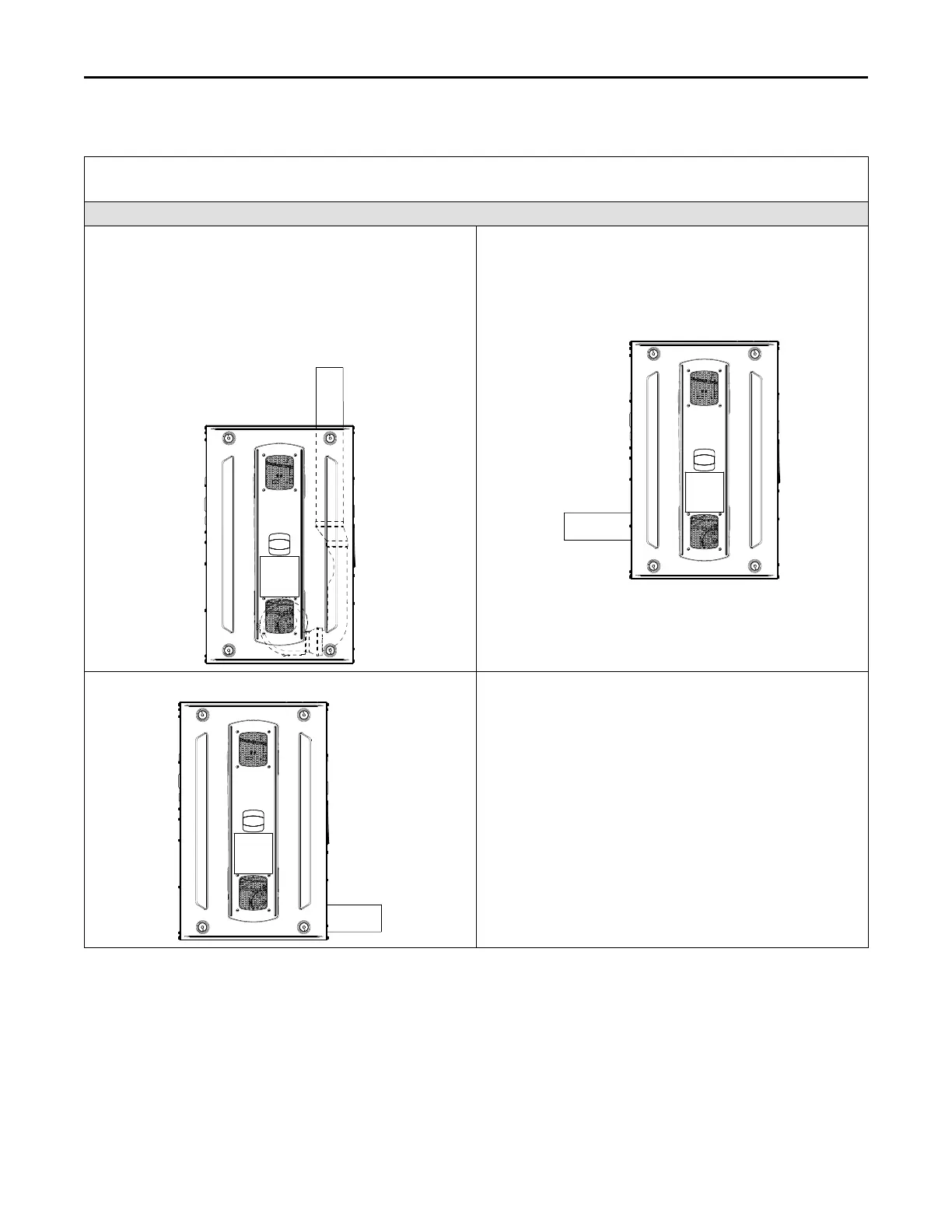

Table 11. Venting Options for Downflow Applications
Refer to the illustrations below to find the approved venting options for downflow furnace models.
Important: The combustion air exhaust must be vented to the outdoors.
Downflow Orientation or Installation
Vented out top.
Note: Requires kit BAYVENT600. Kit used with B, C, and D cabinets
only.
Note: “A” cabinet furnaces must be vented through the left of right
side openings.
Note: 4” Type B double wall vent pipe must be used inside of the
furnace cabinet.
Vented through left side.
Vented through right side.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss

Trane S8X1 Series Specifications

General

Blower Motor	Multi-speed
Ignition System	Hot Surface Ignition
Fuel Type	Natural Gas or Propane
Heating Stages	Single-stage
Warranty	20-Year heat exchanger warranty, 5-Year parts warranty (with registration, warranty extends to 10-year parts warranty)
