Trane S8X1B060M3PSAB - Horizontal Right Furnace with Coil; Downflow Furnace with Coil

18-CE04D1-1D-EN
31

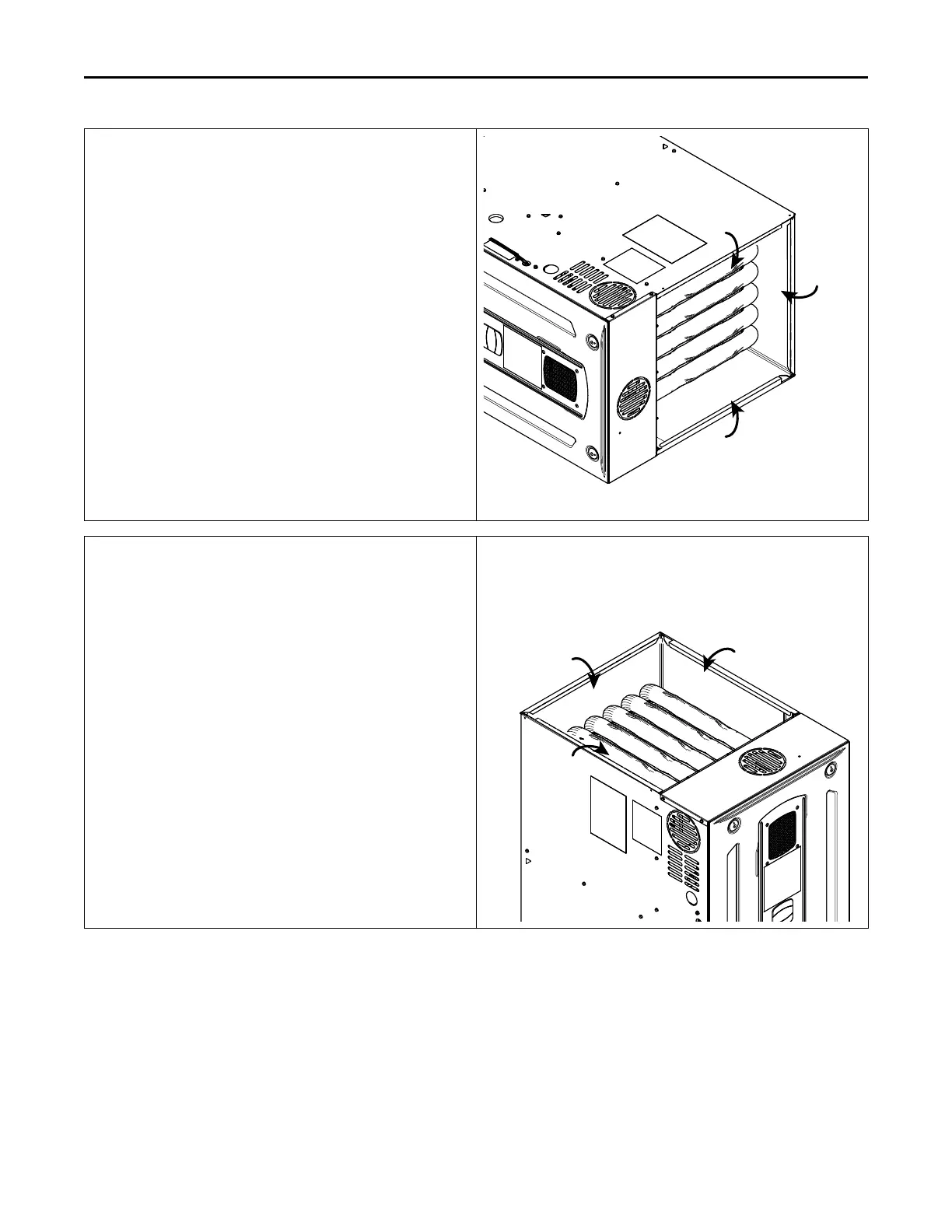

Furnace in Horizontal Right with “A” Coil
1. Bend furnace flanges down.
2. Support the furnace and coil independently.
3. Match the coil up flush to the back of the furnace.
4. Seal per local codes and requirements.
Note: Flat or dedicated horizontal coils may require flanges to be bent
upward.
Downflow Furnace with Coil
1. Bend furnace flanges down.
2. Set the furnace on top of the coil so that it is flush with the back of
the furnace.
3. Seal per local codes and requirements.
FFuurrnnaaccee GGeenneerraall IInnssttaallllaattiioonn
