Trane S8X1B060M4PSCA - Belly Band Location

S8XB-SVX001-1B-EN
55

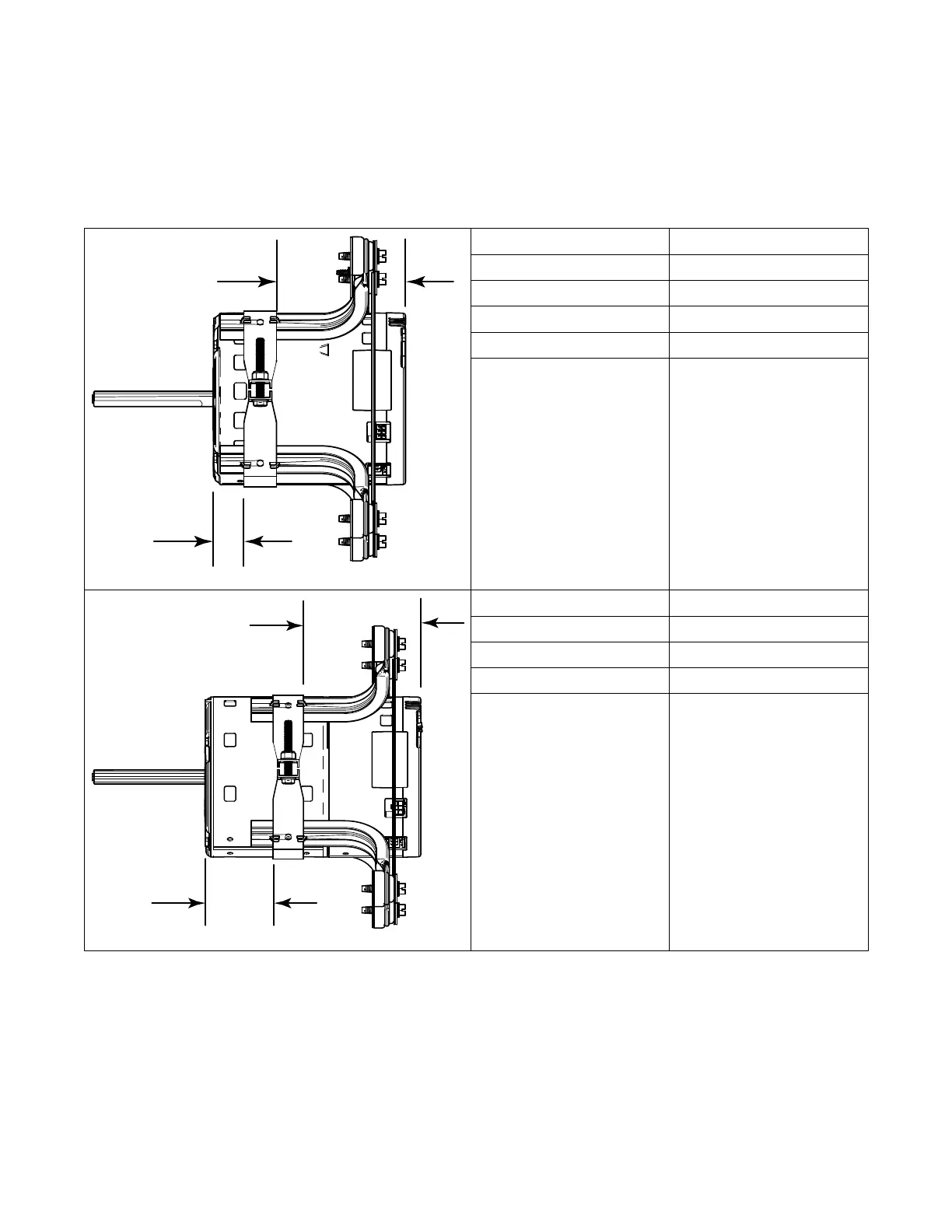

Belly Band Location
Distance from belly band to the front face of motor for
minimum vibration
1.00
A
Blower housing and wheel removed from view for clarity.
Furnace Model Dimension “A” (inches)
A040 3.75 (3–3/4)
B040 3.5 (3–1/2)
B060 4 ton 4.25 (4–1/4)
B080 4.25 (4–1/4)
2.375
A
Blower housing and wheel removed from view for clarity.
Furnace Model Dimension “A” (inches)
C080 4.125 (4–1/8)
C100 4.125 (4–1/8)
D120 4.125 (4–1/8)
