Installation
pre-installation
considerations
24"
FAN ACCESS
FRONT RETURN
COIL / ELECTRIC HEATER
ACCESS
MOTOR / DRIVE ACCESS
(RIGHT SIDE)
CONTROL BOX &
CONDENSER FAN ACCESS
TXV ACCESS
(RIGHT SIDE)
26" SERVICE CLEARANCE
RIGHT SIDE
UNIT-MOUNTED T-STAT
OPENING (BOTH SIDES)
POWER ENTRY
(BOTH SIDES)
CONTROL ENTRY
(BOTH SIDES)
COMPRESSOR ACCESS
42" SERVICE CLEARANCE FRONT
DRAIN CONNECTION
AIR FILTER ACCESS
(BOTH SIDES)
(BOTH SIDES)
26" SERVICE CLEARANCE
LEFT SIDE
SIGHT GLASS/FILTER DRIER ACCESS
(RIGHT SIDE)
24"
26" SERVICE CLEARANCE
LEFT SIDE
REAR RETURN
18" SERVICE CLEARANCE
REAR
26" SERVICE CLEARANCE
RIGHT SIDE

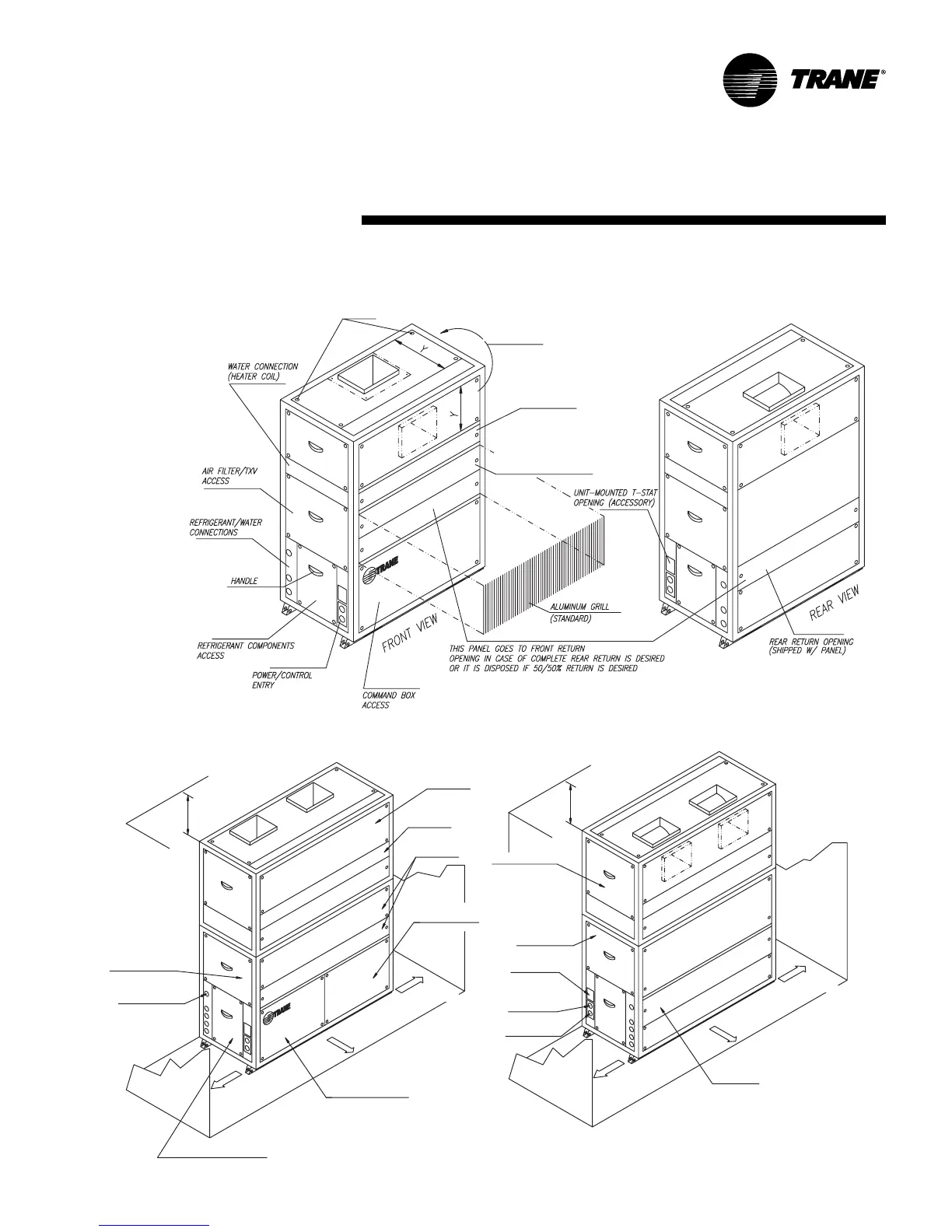

10 through 15-ton SCWH/SRCH with top-mounted fan configuration
LATCH
HEATER
ACCESS
THIS PANEL GOES TO TOP ON
HORIZONTAL AIR DISCHARGE
CONFIGURATION
PROVIDED DISASSEMBLED
(FOR FIELD-INSTALLED REAR RETURN)
3 through 7.5-ton SCRH/SCWH
Service Access
