Installation
22 RT-SVX22M-EN
Table 1. Maximum unit & corner weights (lbs) and center of gravity dimensions (in.) - cooling models
Unit
Model No.
Maximum Model
Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Ton Shipping Net A B C D Length Width
3 TSC036E/THC036E 555 481 157 122 95 107 31 19
4 TSC048E 586 511 167 129 101 114 31 19
5 TSC060E 636 561 183 142 111 125 31 19
6 TSC072F 762 667 218 186 131 132 44 21
7½ TSC090F 781 686 222 195 136 134 44 21
7½ TSC092F 940 797 249 235 163 149 46 21
8½ TSC102F 999 856 264 239 177 175 45 22
10 TSC120F 1058 960 320 218 233 189 40 24
3 THC037E 614 544 163 144 111 125 33 19
4 THC048E/THC047E 787 692 220 178 132 163 40 23
4 THC048F 737 642 208 177 128 130 44 22
5 THC060E/THC067E 841 746 241 193 139 173 39 22
5 THC060F 774 679 219 189 135 137 43 21
6 THC072E 943 845 274 172 186 213 41 24
6 THC072F 883 740 228 219 155 138 47 21
7½ THC092F 1026 928 315 209 224 180 40 24
7½ THC092F 1046 948 317 217 232 182 50 24
8½ THC102F 1035 937 316 212 227 181 49 24
8½ THC102F 1055 957 318 221 235 183 50 24
10 THC120E 1462 1245 353 332 271 288 48 28
(a)Weights are approximate.
(b)Corner weights are given for information only.

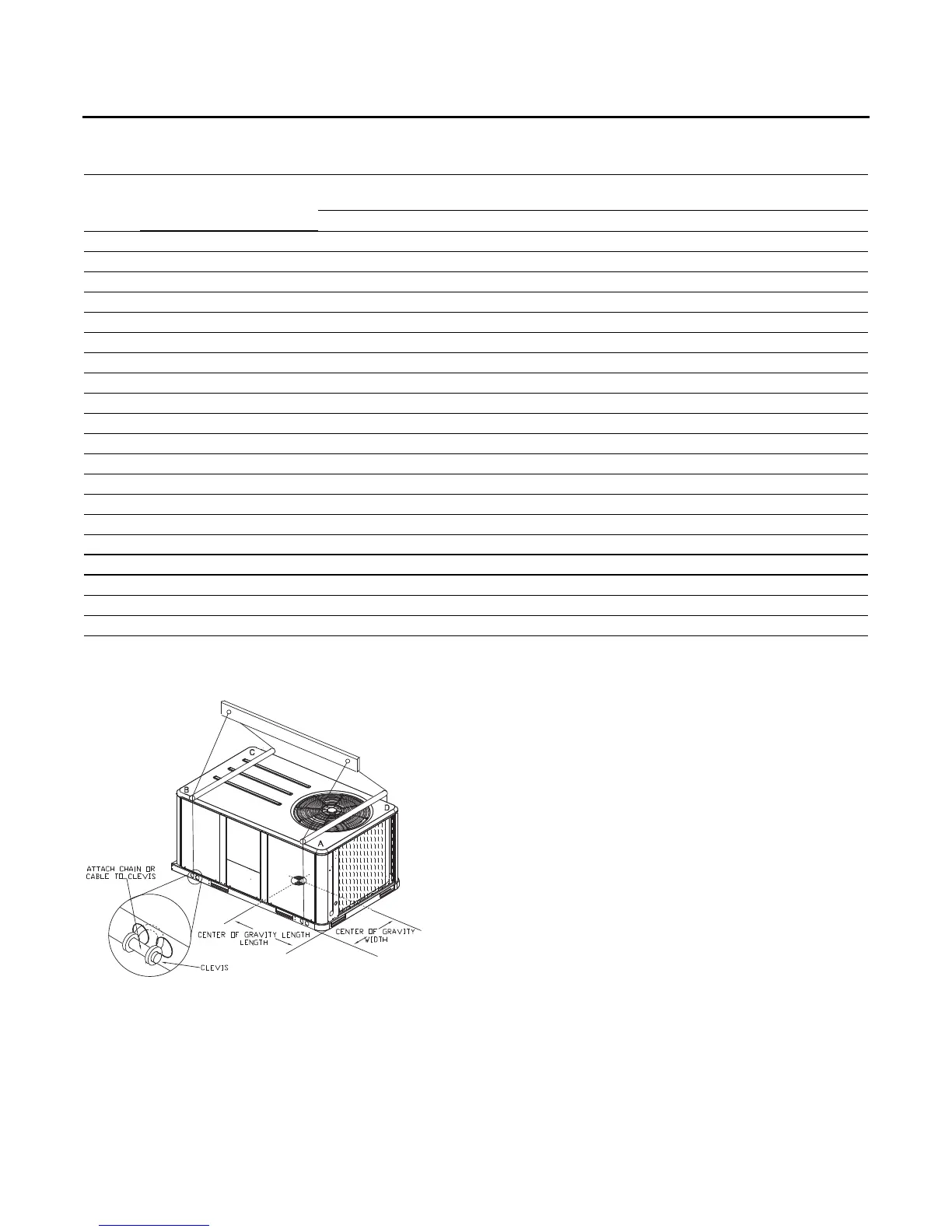

Figure 15. Rigging and center of gravity
