Trane TTV User Manual

2 TTV-IOM-R410A

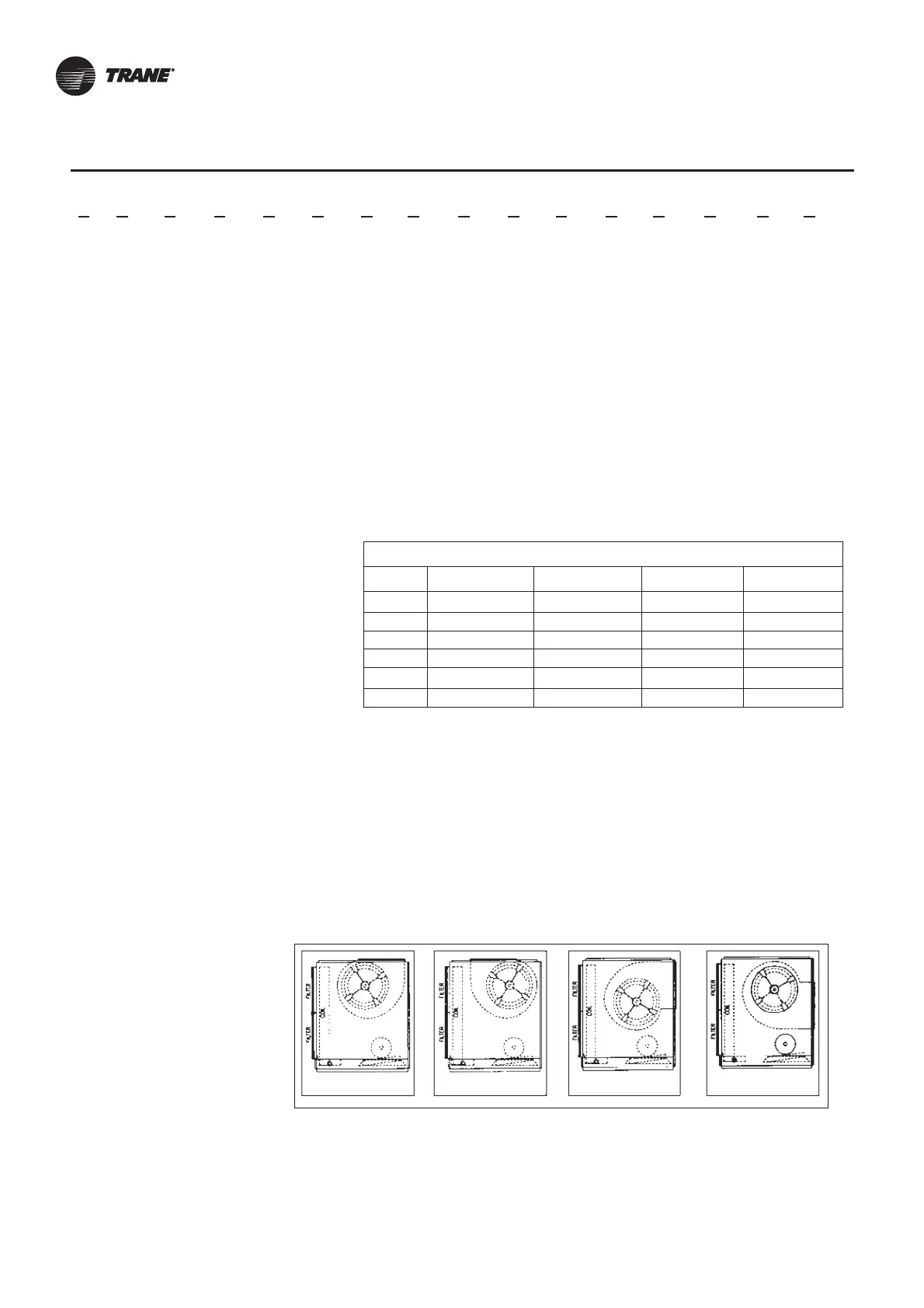

Model Nomenclature
Digit 8 = Electrical Rating / Utilization Range
T T V 250 J D 0 1 A 0 A A 0 D
1 3 2 4 5 6 7 8 9 10 11 12 13 14 15 16
Digit 1, 2, 3 = Airflow Configuration
V = Vertical Discharge
Digit 4, 5, 6 = Nominal Gross Capacity (MBH)
Digit 7 = Major Design Sequence
Digit 9 = Motor Control
0 = None
1 = DOL Starter
J = R410A
Digit 10 = Factory Installed Options
0 = No Motor and Drive
1 = 3.7 Supply Fan Motor kW
2 = 5.5 Supply Fan Motor kW
3 = 7.5 Supply Fan Motor kW
D = 380-415V/3Ph/50Hz
A = Arrangement 1
B = Arrangement 2
C = Arrangement 3
D = Arrangement 4
4 = 11 Supply Fan Motor kW
5 = 15 Supply Fan Motor kW
Digit 11 = Minor Design Sequence
Digit 12
0 = No Discharge Plenum
A = 1
st
Minor Design Sequence
Digit 13
A = Internal Filter Rack ; 1” Filter
B = External Filter Rack ; 2” Filter
C = Internal Filter Rack ; 1” Filter with Decorative Return Air Grille
Digit 14 = Fan Arrangement
0 = None
D = 4
th
Service Sequence
Digit 16 = Service
Digit 15 = Future Use
Arrangement 1 Arrangement 2 Arrangement 3 Arrangement 4
MOTOR SIZE
Model
TTV250
TTV300
TTV400
TTV500
TTV600
TTV800
Standard
5 hp (3.7 kW)
5 hp (3.7 kW)
7.5 hp (5.5 kW)
7.5 hp (5.5 kW)
15 hp (11 kW)
20 hp (15 kW)
Over Size - 1
7.5 hp (5.5 kW)
7.5 hp (5.5 kW)
10 hp (7.5 kW)
10 hp (7.5 kW)
20 hp (15 kW)
25 hp (18.5 kW)
Over Size - 2
10 hp (7.5 kW)
10 hp (7.5 kW)
15 hp (11 kW)
15 hp (11 kW)
-----
-----
Over Size - 3
15 hp (11 kW)
20 hp (15 kW)
-----
-----
-----
-----
