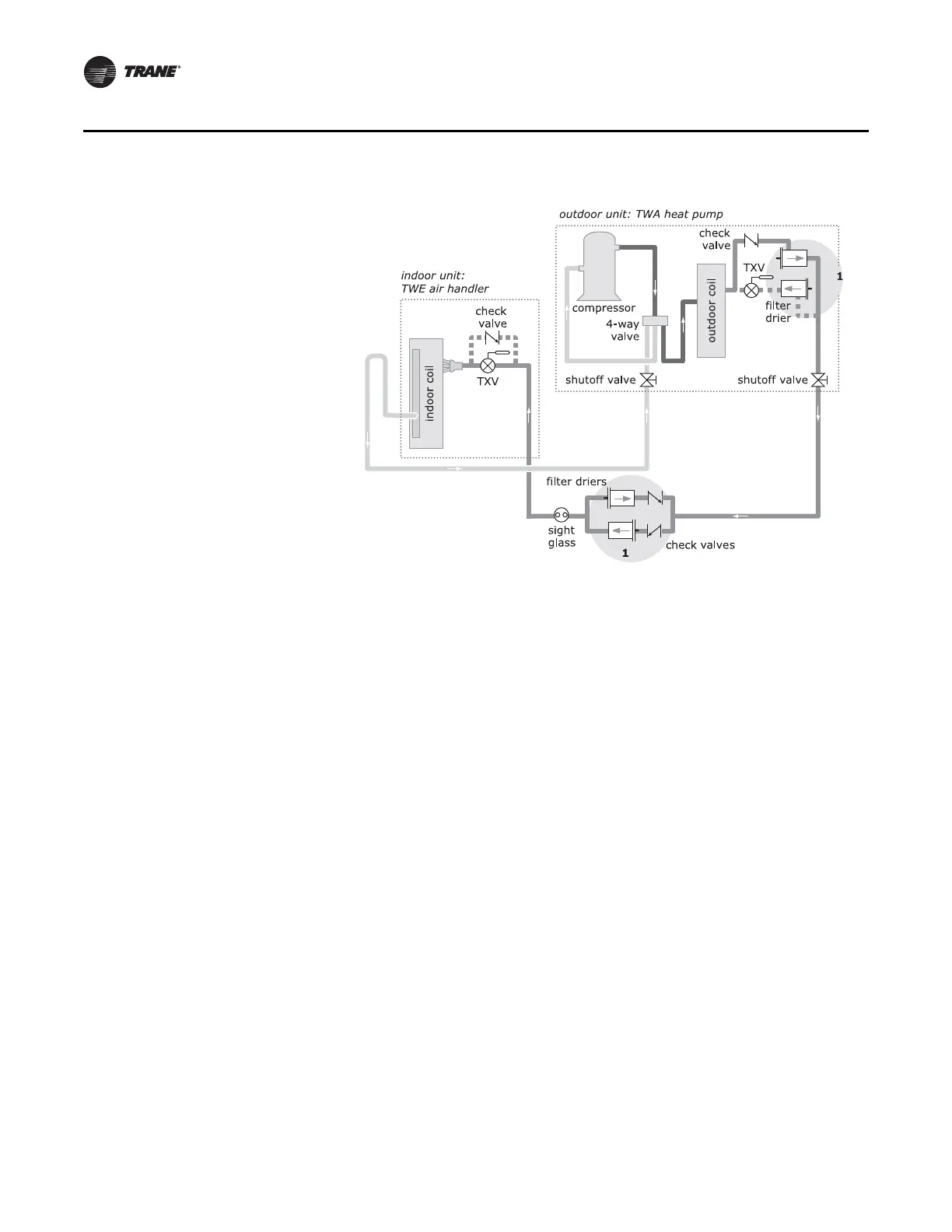

Figure 8. TWA heat pump and TWE air handler (typical arrangement shown in cooling mode)
1 For applications where the length of the liquid
line exceeds 80 ft (24 m) and the heat pump will
start in the cooling mode, remove the liquid-line
filter driers from the TWA heat pump and install
new filter driers and check valves at the TWE air
handler..
