Trane *UH2B080A9V3VA - Field Wiring Diagram; 2 Stage Heating;1 Stage Cooling Wiring

46 pages

To Next Page

To Previous Page

18-CD26D1-10 39

Installer’s Guide

W14

OUTDOOR UNIT

(NO TRANSFORMER)

SEE

NOTE 6

SEE

NOTE 7

Y1/Ylo

SEE

NOTE 9

W14 JUMPER

SEE NOTE 9

From Dwg. B342020 Rev. 0

B/C

TO 115 V 1 PH.,

60 HZ., POWER

SUPPLY PER

LOCAL CODES

HUM SEE

NOTE 5

EAC SEE

NOTE 5

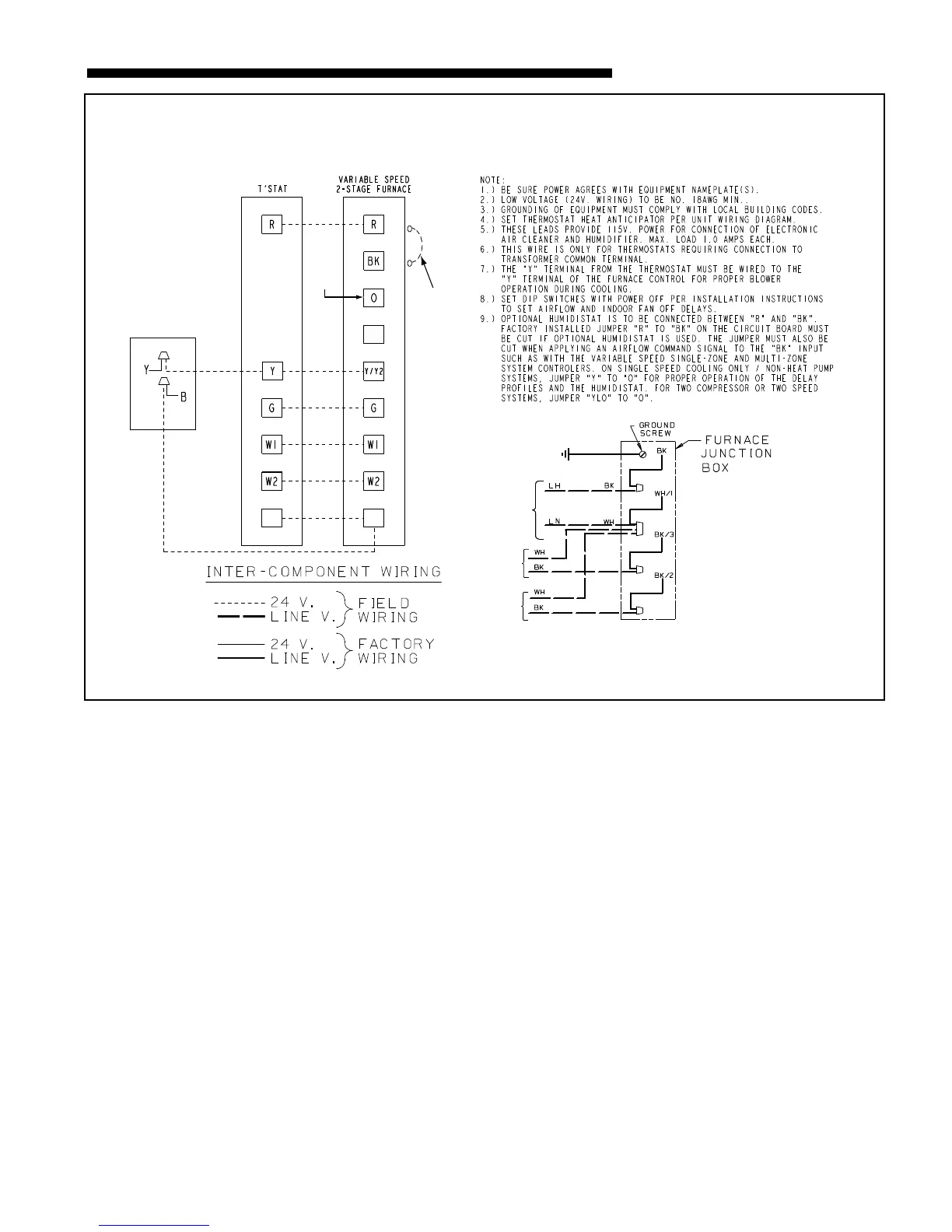

FIELD WIRING DIAGRAM FOR VARIABLE SPEED 2 STAGE FURNACE

2 STAGE HEATING, 1 STAGE COOLING

USING A 2 STAGE HEATING, 1 STAGE COOLING THERMOSTAT

(OUTDOOR SECTION WITHOUT TRANSFORMER)

Figure 63
