Trane WC*150B***G Series - Horizontal Duct Dimensional Data

18 Packaged Heat Pump • WC-IOM-7
Unit Dimensions

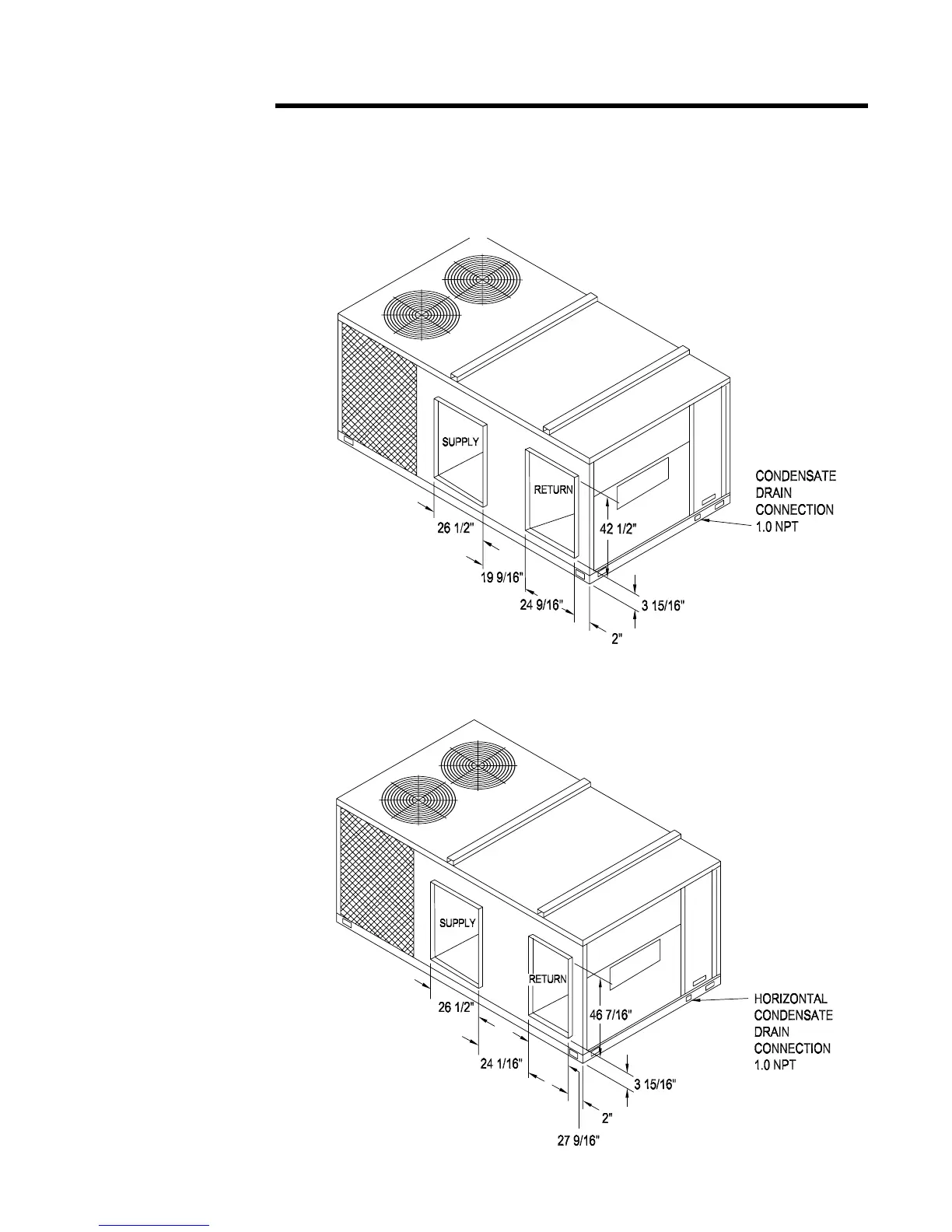

Figure 6. Horizontal Duct Dimensional Data 12 1/2 Ton, 15 Ton
Figure 7. Horizontal Duct Dimensional Data 20 Ton
