Trane YSJ300A - Weights; Unit and Corner Weights; Factory Installed Options Weights

RT-SVX071A-EN
27
Weights

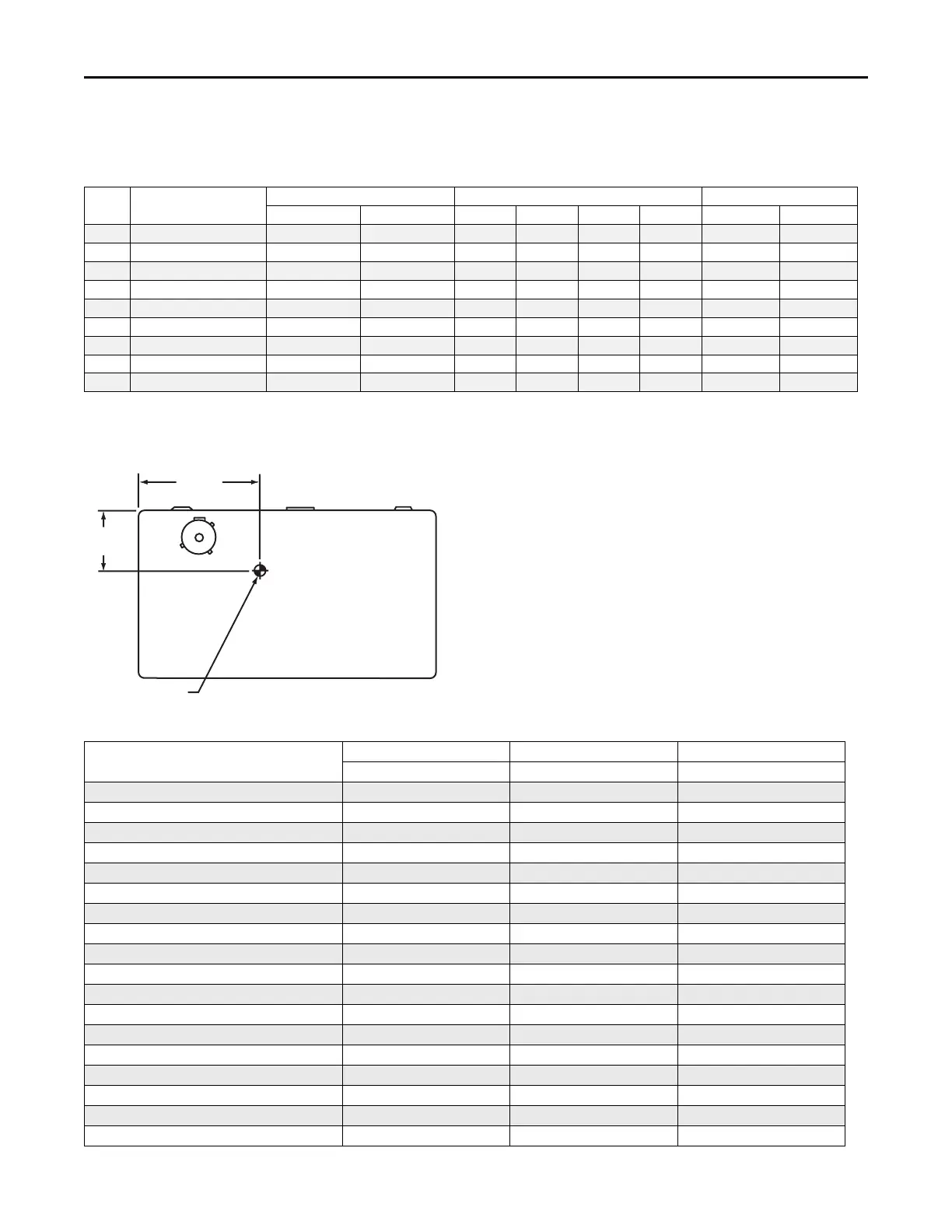

Table 1. Maximum unit, corner weights (lbs) and center of gravity dimensions (in.)
Tons Unit Model No.
Maximum Model Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Shipping
Net A B C D
Length
Width
6 YSJ072 1107 1009 364 339 195 209 43 19
7.5 YSJ090 1111 1013 365 340 196 210 43 19
8 YSJ102 1127 1029 370 345 199 213 43 19
10 YSJ120 1137 1039 374 348 200 215 43 19
12.5 YSJ150 1512 1318 442 446 313 310 50 26
15 YSJ180 2220 2000 671 492 354 483 52 36
17.5 YSJ210 2250 2030 672 509 366 484 53 36
20 YSJ240 2320 2100 754 516 337 493 50 34
25 YSJ300 2370 2150 746 529 363 512 51 35
(a)
Weights are approximate.
(b)
Corner weights are given for information only.
Figure 26. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 2. Factory installed options (FIOPS)/accessory net weights (lb)
Accessory
YSJ072-120 YSJ150 YSJ180-300
6, 7.5, 8.5, 10 Tons
12.5 Tons
15, 17.5, 20, 25 Tons
Barometric Relief 10 10 40
Economizer 36 36 91
Hinged Doors
12 12 20
Low Leak Economizer - Downflow 91 91 150
Low Leak Economizer - Horizontal — — 180
Manual Outside Air Damper
26 26 15
Motorized Outside Air Damper
30 30 82
Oversized Motor 14 — 30
Powered Convenience Outlet 38 50 50
Powered Exhaust 80 80 110
Reheat Coil 16 20 33
Roof Curb 78 89 235
Smoke Detector, Supply
5 5 5
Smoke Detector, Return
7 7 5
Stainless Steel Heat Exchanger
6 6 5
Through-the-Base Electrical
13 13 10
Through-the-Base Gas
5 5 10
Unit Mounted Circuit Breaker 5 5 10
Dimensions and Weights
