Transcell Technology PC35 - Chapter 5: Assembly; Disassembly; Opening up the PC-30 and PC-70 Base Unit

5-1
CHAPTER 5: ASSEMBLY / DISASSEMBLY
5.1 PC-30 and PC-70
Tools Required: 5 mm Allen Wrench
Phillips Head Screwdriver
1. Remove the scale platter (1) and set aside.
2. Using the 5 mm Allen wrench, remove the [2] load cell mounting bolts (2).
3. Lift off the sub-platform assembly (3), and set aside.
4. Remove the [4] mounting screws (5) for the splash plate (4) and set aside.
5. Lift off the splash plate and set aside.
1
3
4
2
5

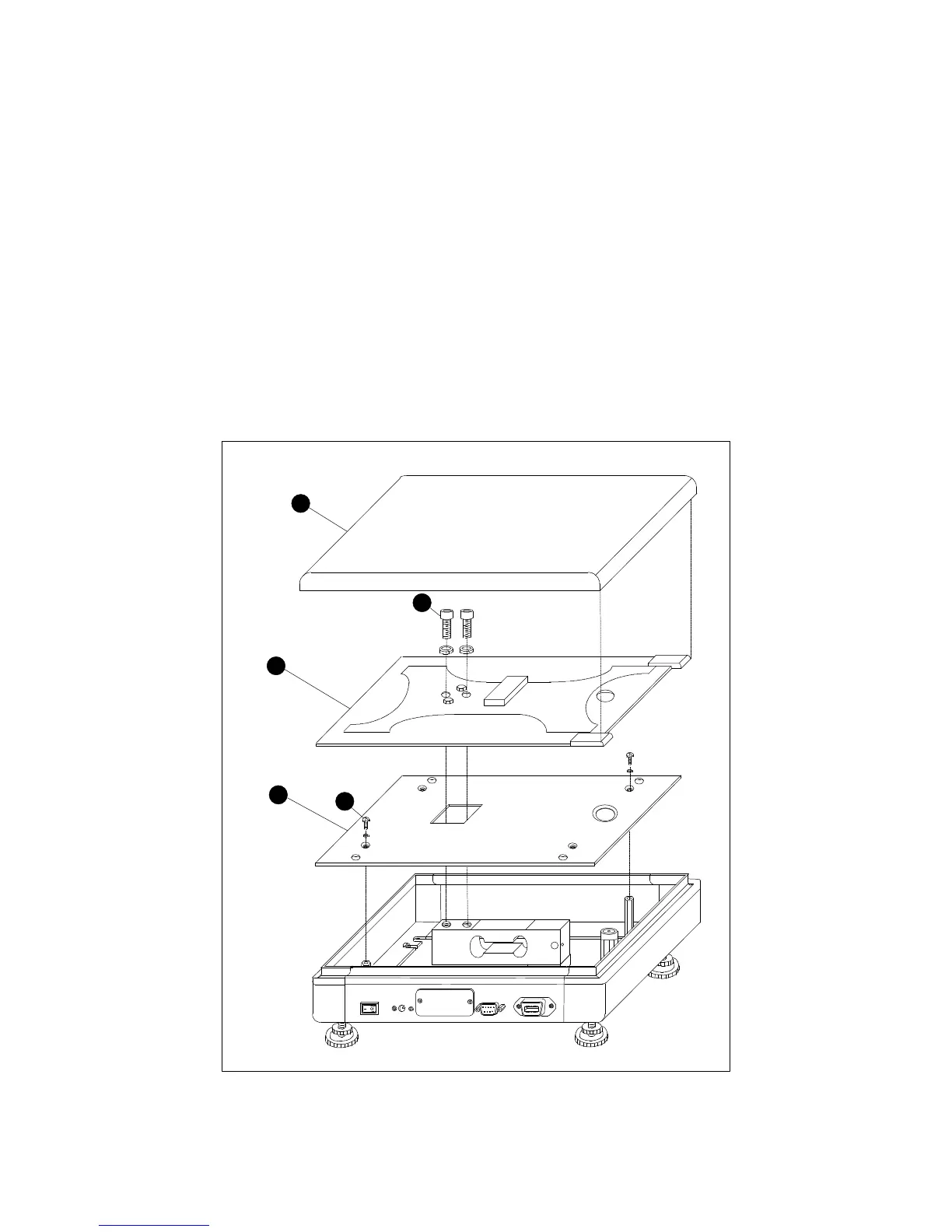

Figure 5-1: Opening up the PC-30 and PC-70 Base Unit
