CONNECTING THE WEIGH PLATFORM

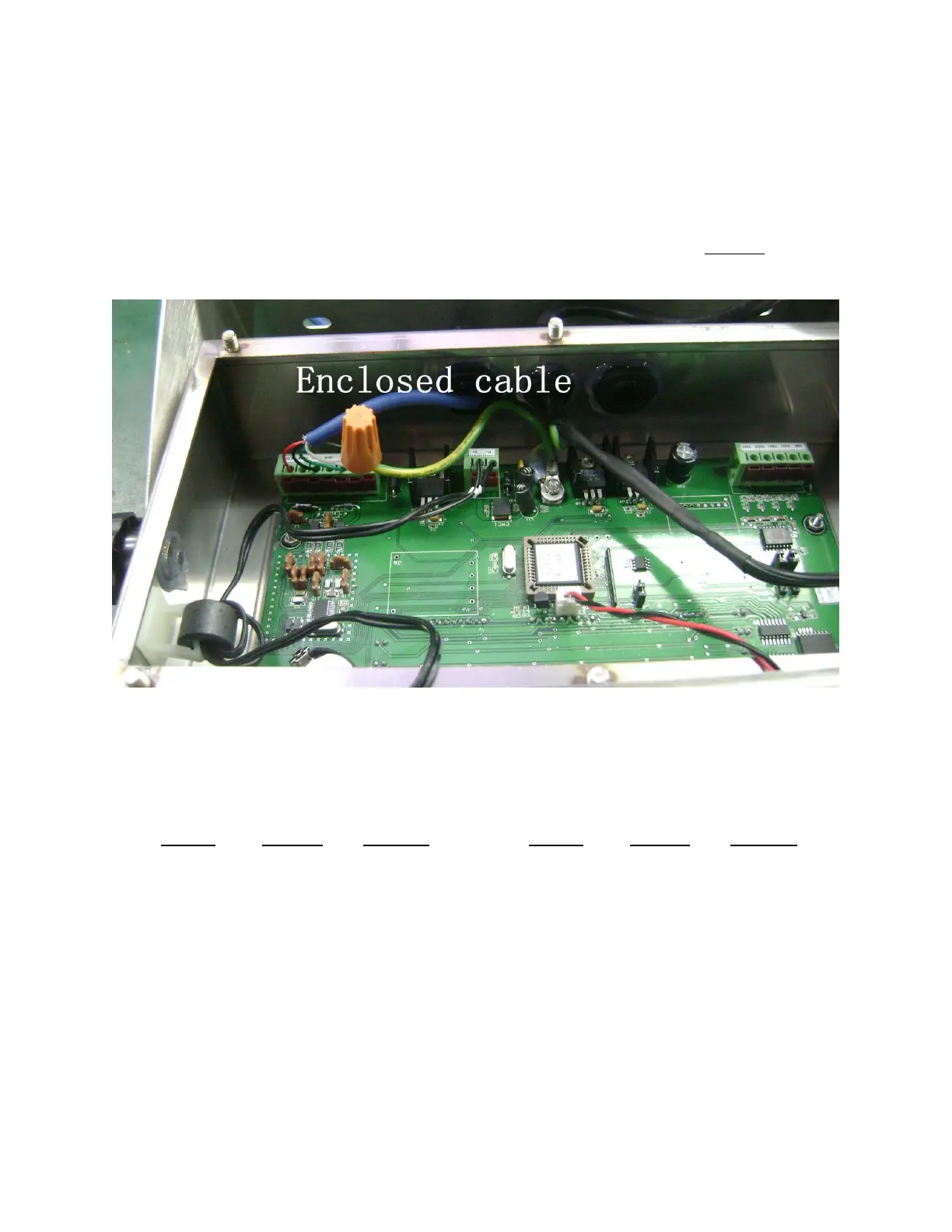

ATTENTION INSTALLERS:
It is highly recommended that you install the enclosed green/yellow cable between
the load cell cable shield and the AC ground lug on the main PCBA. Do not
connect
the load cell cable shield to the green load cell input terminal.
The TI-1520 indicator contains a connection terminal on the main board for connection to the load cell
cable. Connect your shielded load cell cable (not included) to the appropriate terminal on the main
board. NOTE: 6-wire connection is optional.
Load Cell Terminal (J4)
Pin No.
Marking Function
Pin No. Marking Function
1 +EXC + Excitation 5 S+ + Signal
2 +SEN + Sense 6 S- - Signal
3 -EXC - Excitation 7 GND
Do not use
4 -SEN - Sense
