III. INSTALLATION (continued)
-5-

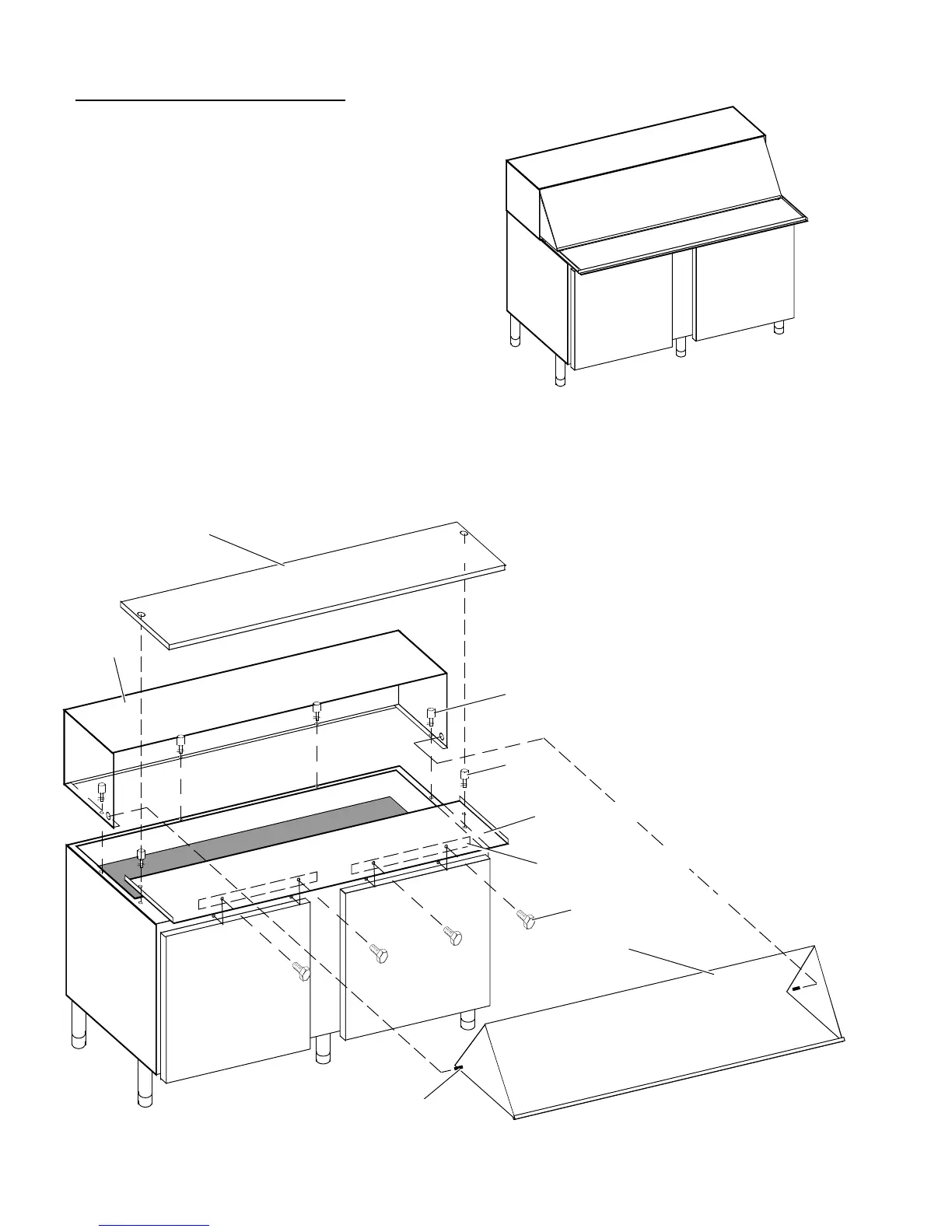

III. k - SANDWICH PREP TOP ASSEMBLY:
On sandwich prep tables (see figure 8), the top
shelf, cutting board, and cover may require assembly
at the site.
1. Place the shelf on top of the rear of the unit.
Secure by screwing 4 threaded pins through base of
shelf and top of unit (see figure 9).
2. Install cutting board support. Secure with 2
threaded pins and 2 bolts per flange(see figure 9)
(wider units may be equipped with an additional
third pin in the center).
3. Assemble cutting board to cutting board support
(pins holding cutting board support fit through holes
in cutting board when properly aligned, see figure 9).
4. To install cover, flex cover so side pins fit in holes
at lower front corners of shelf (see figure 9). Cover
pivots up to open.
SHELF
CUTTING BOARD
PINS (4)
PINS (2)
CUTTING BOARD SUPPORT
COVER
BOLTS (2 @ FLANGE)
FLANGE (1 OR 2)
PINS (2)
Fig. 8
Fig. 9
