SUMMIT
•
11
TRAXXAS TQ
i
RADIO SYSTEM
Your model is equipped with the newest TQi 2.4GHz
transmitter with Traxxas Link
™
Model Memory. The
transmitter has two channels for controlling your throttle
and steering. The receiver inside the model has 5 output
channels. Your model is equipped with one servo and an
electronic speed control.

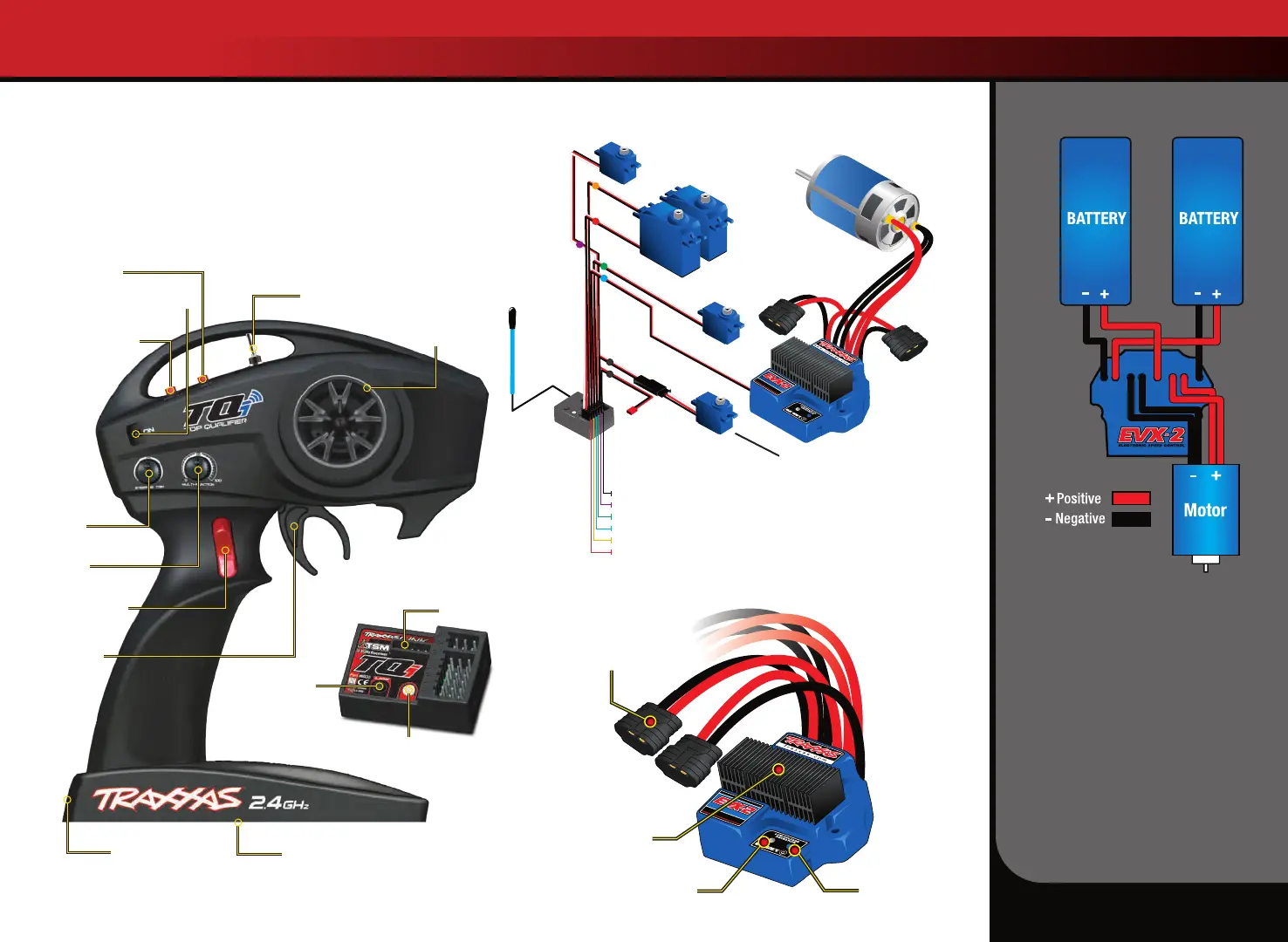

TRANSMITTER AND RECEIVER
Steering
Trim
Multi-Function
Knob
Throttle
Trigger
Shift Switch
(Channel 3)
T-Lock Switch (Channel 4)
Steering
Wheel
Power Switch Battery Compartment
Set Button
Menu Button
Red/Green Status LED
see page 30 for more info
Link
Button
LED
Sensor Expansion
Port
**
** Accessory sensor port for use with the Telemetry Expander Module (see Traxxas.com for more information)
16.8V ESC
WATERPR OOF
To Motor
LED
EZ-Set Button
Heat Sinks
EVX-2 ELECTRONIC SPEED CONTROL
High-Current
Battery Connector
EVX-2 Wiring Diagram
CH1
CH1
CH2
CH3
CH4
RPM
V/T
B
A
TT
/
CH5
CH1
CH1
CH2
CH3
CH4
RPM
V/T
BA
TT
/
CH5
S
S
+
+
-
-
V/T - Voltage/Temp Sensor Port**
RPM - RPM Sensor Port**
BATT/
CH5 - Battery/Channel 5
CH4 - Channel 4
CH3 - Channel 3
CH2 - Speed Control
CH1 - Steering Servo
CH1 - Channel 1
** Accessory sensor ports for use with optional voltage, temperature, and RPM sensors
(see Traxxas.com and included materials for more information)
16.8 V ESC
WATERPROOF
Antenna
to
LED Lights
Motor
(Titan
®
775)
Channel 2
EVX-2 Electronic
Speed Control
Channel 1
Steering Servos
Channel 3
Shift Servo
Channel 4 Front
T-Lock Servo
Channel 5
Rear T-Lock
Servo
MODEL WIRING DIAGRAM
