minipool Quarz
Start of string display. There is a 2 second delay on each number.
Start of string display. There is a 2 second delay on each number.
Start of string display. There is a small delay on each number.
Only if
GFCI is
enabled
Only if
DEMO Mode
is enabled
To FIRST item
in Main Menu
(TEMP Range)

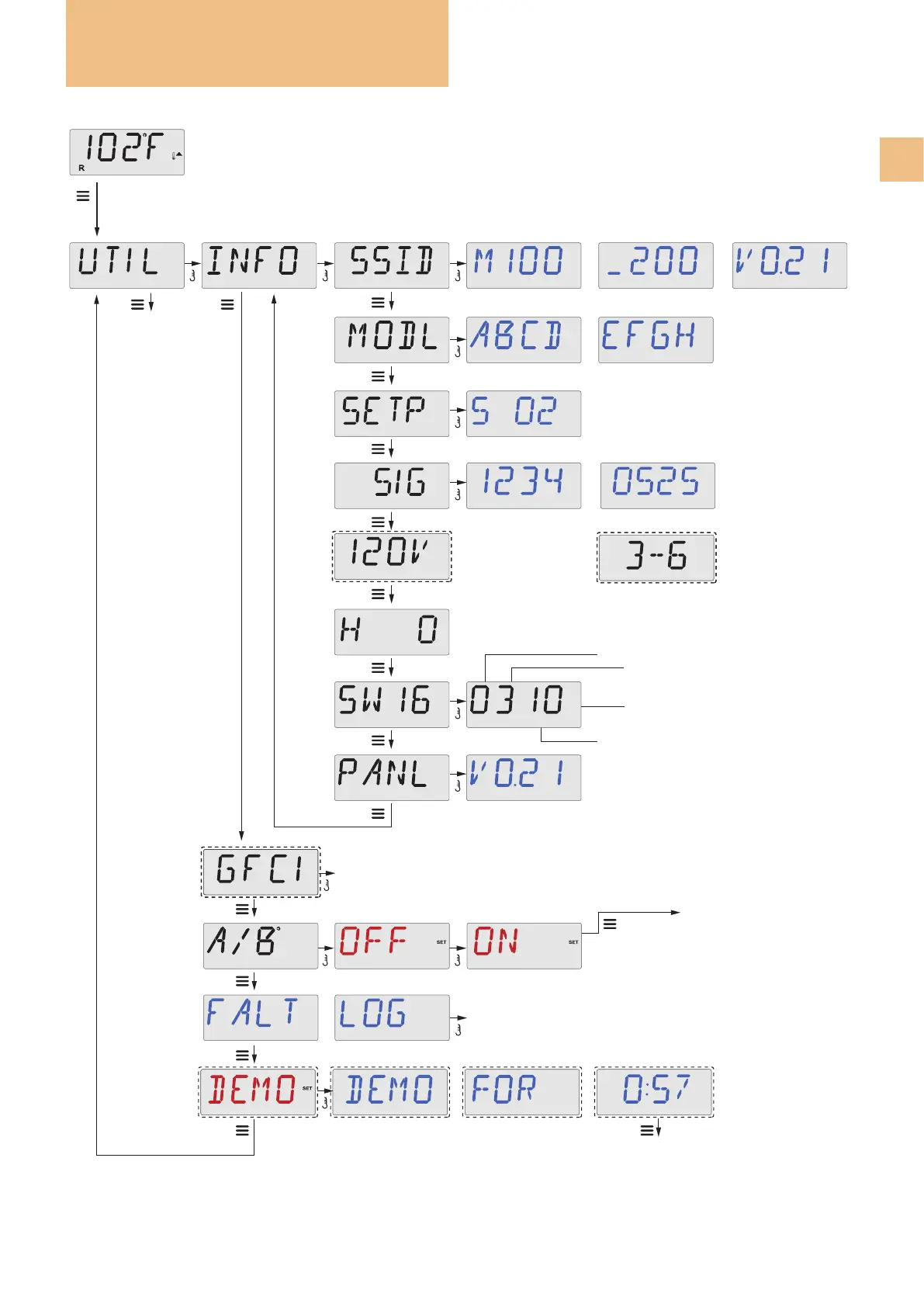

Press Menu/Select repeatedly
until UTIL appears (Utilities).
When set to ON, the Panel
will display alternate readings
from Sensor A and Sensor B
Back to normal operation
DIP Switch 1 – Test Mode Off (0) or On (1)
N/A or Special Amperage Rule 1 or 2
120 or 240 V
input voltage
detected by the
UL system at startup.
Heater wattage 3-6 or
1-3 as programmed.
Shown by the CE system at startup.
Heater Type
Displays Fault Log
Set
Displays GFCI Test Menu (differential)
OR
DIP Switch 2+3+4 = the number of HS pumps with heat
Store Settings (0) or Memory Reset (1)
DIP Switch
Settings
*****
Wait a few seconds to
return to the original setting
a few seconds
Or *****
120 V
3-6
See page 17
See page 18
Use
