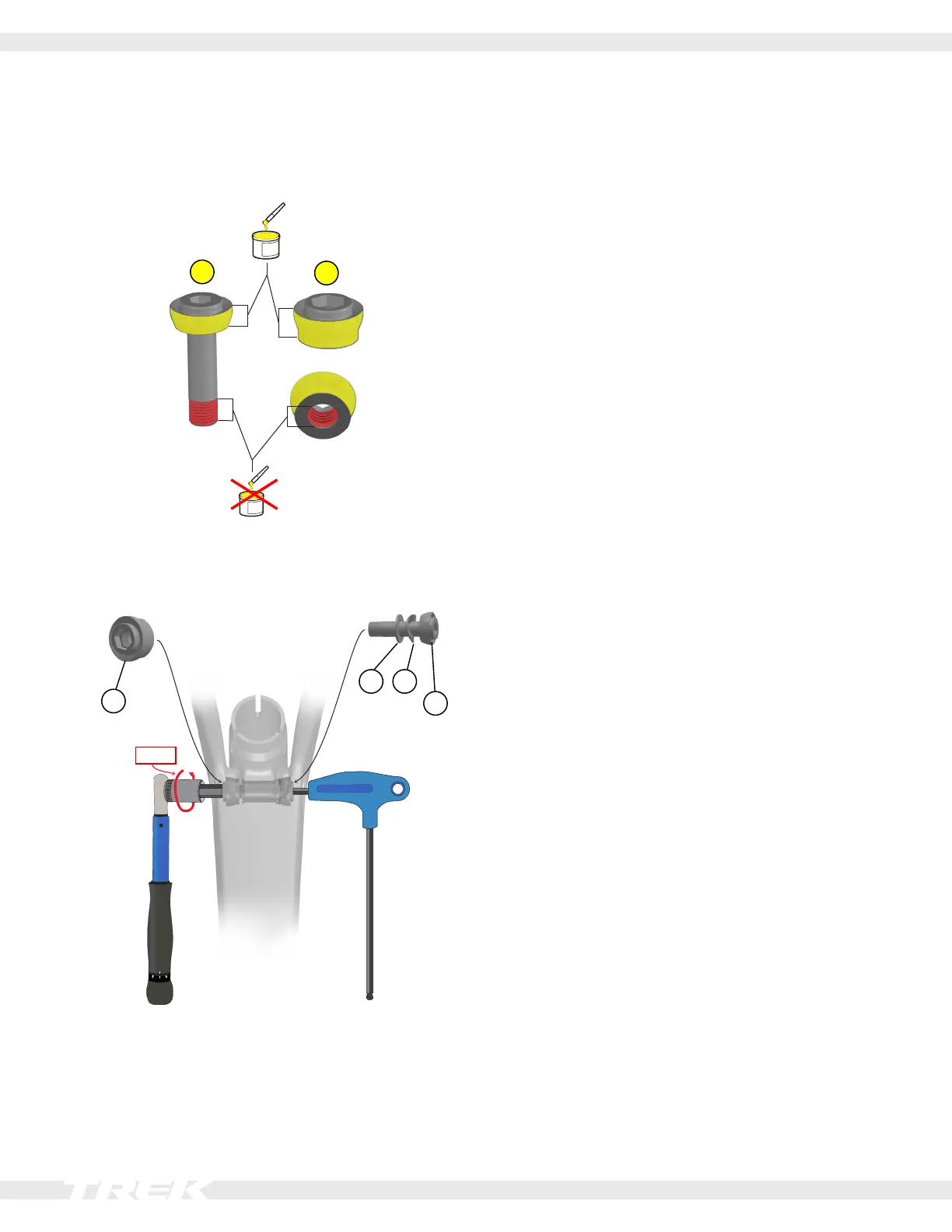

5. Apply grease to the bolt and nut as shown below. Do
not apply grease to the threads.
6
1
6. Place the washers on the bolt. Tighten the nut to
10Nm while securing the bolt with a wrench as
shown below.
10Nm
7
.
8
8
.
0
8
.
2
6
3 2
1
7. Reinstall the IsoSpeed covers.
8. Allow the assembly to cure for 24 hours at room
temperature (72°F/22°C).
IsoSpeed — SL (continued)
