Trek CHECKPOINT SL - Chainkeeper; Adjust the chainkeeper

2022 Checkpoint SL/SLR
16

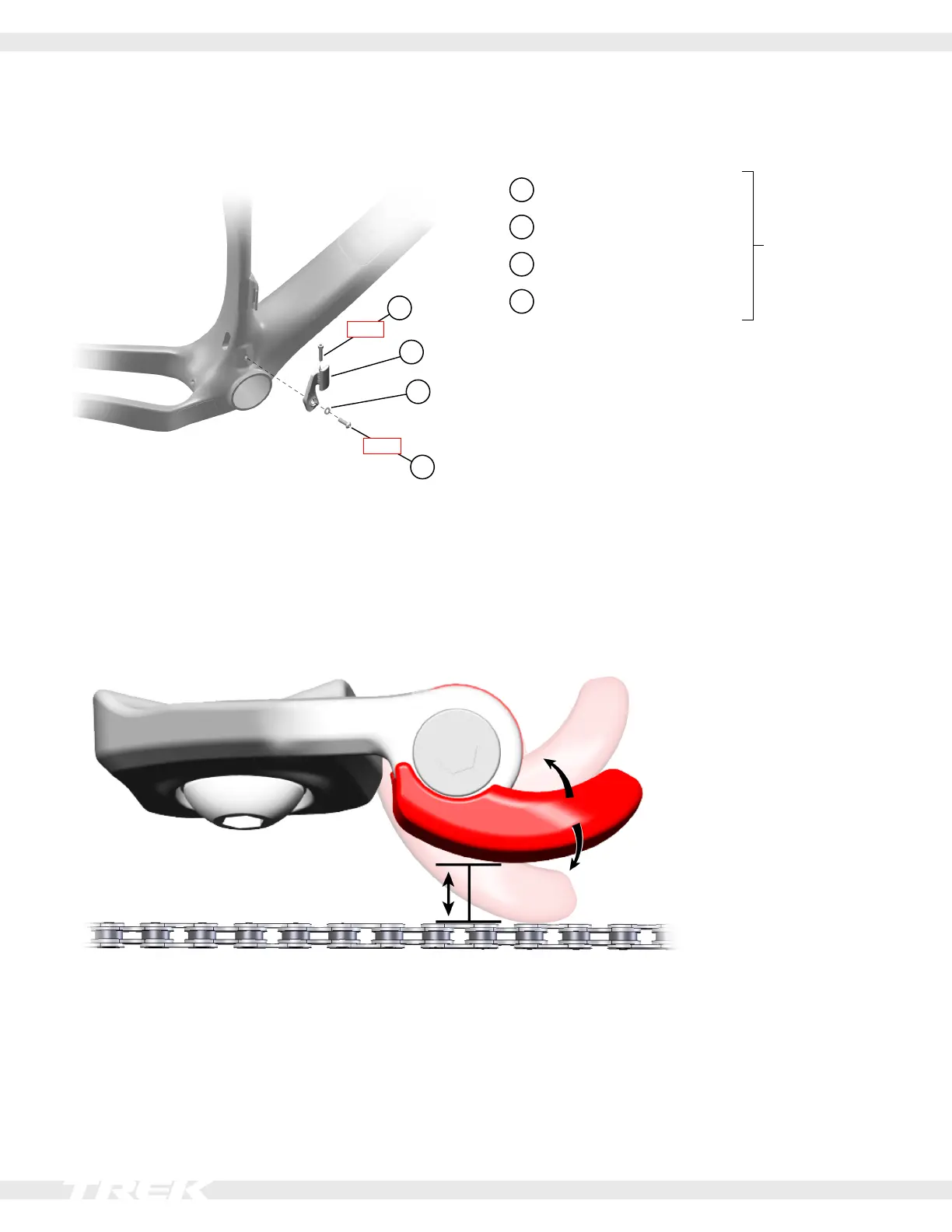

Chainkeeper
NOTE: This chainkeeper only functions properly on 2x chainring drivetrains. It is not compatible with 1x chainring drivetrains
and 2x chainring drivetrains with a wider chainline (such as SRAM WIDE).
3
1
1Nm
2
4
3Nm
1
Bolt (M4x22mm)
kit 573827
2
Chainkeeper
3
Flat washer (M5x10mm)
4
Bolt (M5x16mm)
Adjust the chainkeeper
1. Shift to the lowest gear (largest rear cassette cog) and inner chainring.
2. Loosen the bolt (1) on the chainkeeper.
3. Rotate the loose piece (shown in red below) so there is 1mm of horizontal clearance to the chain.
1mm
4. Tighten the bolt (1) to 1Nm.
