Trek CHECKPOINT SL - Brake;shift routing - Di2; Route the brake hoses

2022 Checkpoint SL/SLR
6
Brake/shi routing — Di2
4
9
10
2-3Nm
11
5
6
7
3
2
1
6.5Nm
max




8
3Nm
NOTE: Tighten the front derailleur
bolt (6) to the manufacturer’s
specications.
1
Rear derailleur hanger — W524188
2
Rear derailleur hanger bolts — W524884
3
Di2 exit grommet — W600208
4
Housing grommets — W330578
5
Front derailleur washer — W531901
6
Front derailleur bolt — W543903
7
Battery holder and cable guide — W588188
8
Screws (M4x9mm) — W307656
9
Front brake hose
10
Rear brake hose
11
Di2 wires

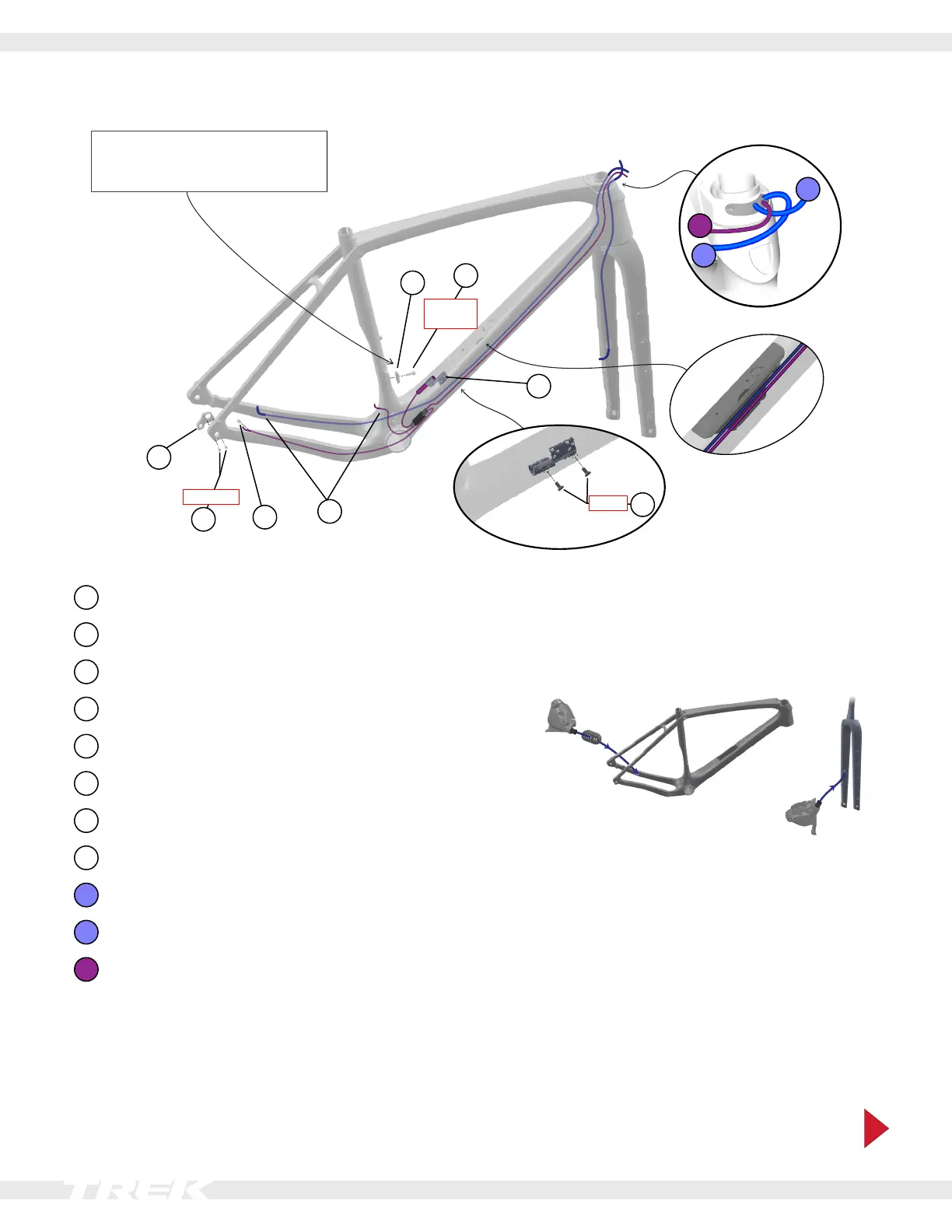

Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (4).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
