Trek Domanee 2017 - 2 FRONT ISOSPEED; Installing the front IsoSpeed system

2 FRONT ISOSPEED
TOOLS AND MATERIALS REQUIRED:
• 5 mm hex wrench
• Torque wrench
• Grease
A Front IsoSpeed
lower cover
B Elliptical nut m8 x1.0 x 6mm
C Front IsoSpeed
decoupler
D Washer 16od x 10.10id x 1.125 length
E Screw m8 x 1.0 x 14mm, 4mm hex
F Pre-load spacer
G Headset bearing
H Headset
compression ring
I Front IsoSpeed
headtube cover
J IsoSpeed top cap
A
B
B
D
E
E
F
G
H
I
D
J
C

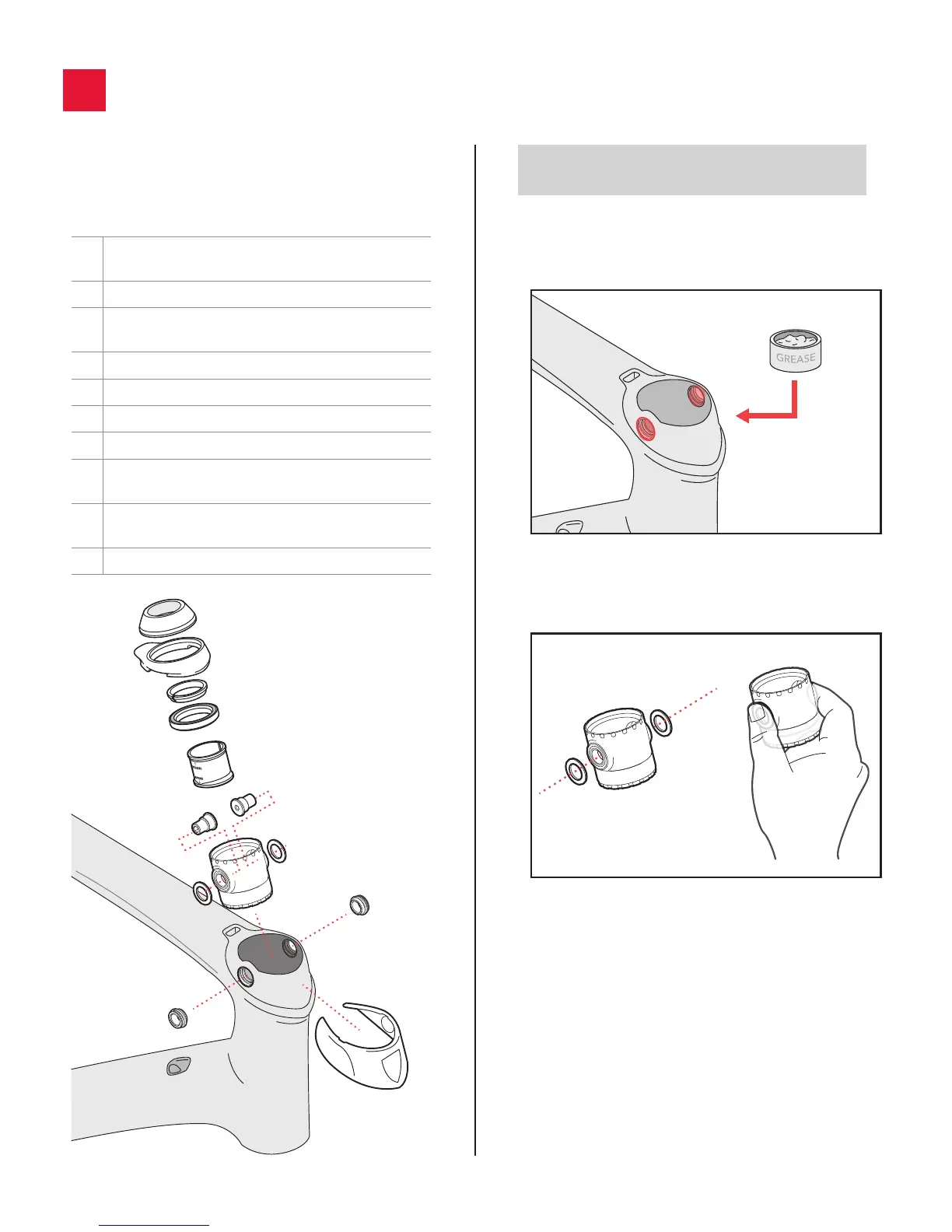

Installing the front IsoSpeed system
1. Apply grease to the bores on both sides of the
head tube as well as the inside face.
2. Place a washer over each bearing on both sides of
the front IsoSpeed decoupler.
