Trek Domanee 2017 - 7 INSTALLING CHAIN KEEPER; Securing the chain keeper

TOOLS AND MATERIALS REQUIRED:
• Chain keeper
• Chain keeper washer
• 4mm Hex Wrench
• m5 button head screw
• Wrench
Securing the chain keeper

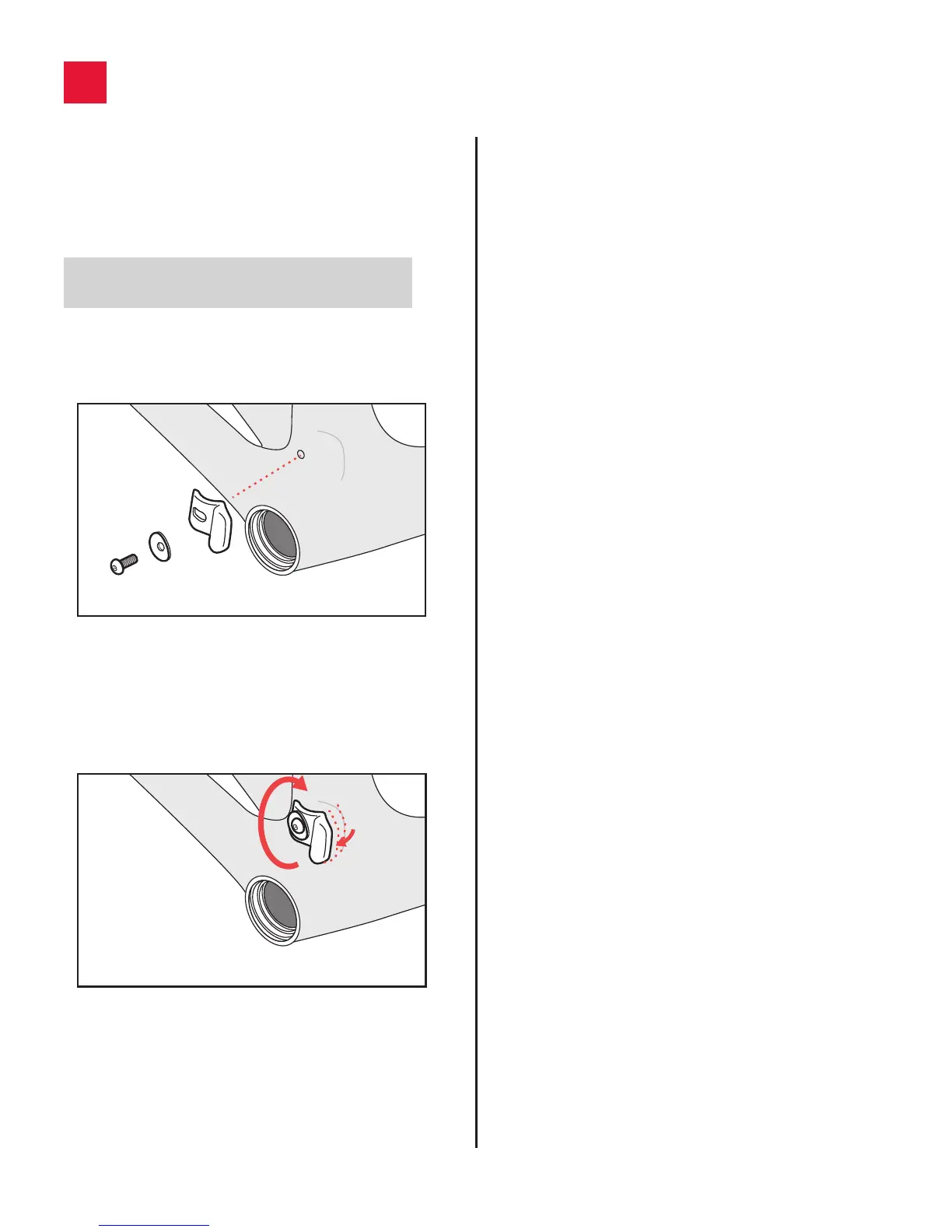

1. Place the chain keeper washer and chain keeper
onto the m5 button head screw.
2. Note the curved surface on the frame and place
the chain keeper along this surface and tighten
until snug (2a). Tilt the chain keeper away from
the bike until you install the chain and make final
adjustments (2b).
2a
2b
