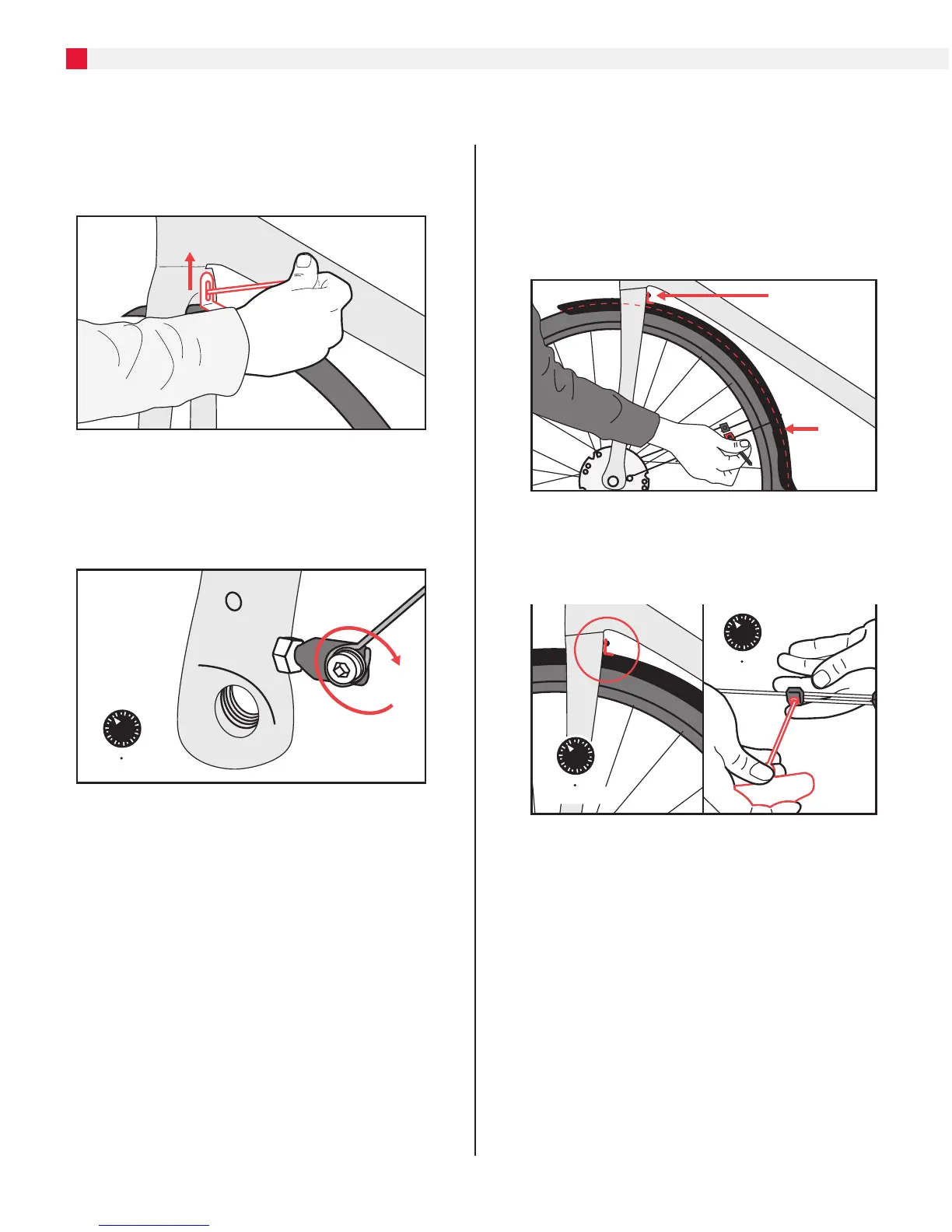

3. Install the top of the fender to the backside of the
fork crown. Place the fender at its highest possible
setting. This will be adjusted later when centering
the wheel.
4. Install the lower mounting brackets for the fenders
to the eye-bolts on the fork legs. Torque the eye-
bolt hardware to a maximum of 5.2 Nm.
N m
5.2
5. Reinstall the front wheel. Adjust the fender at the
fork crown so that there is clearance between the
fender and the tire. (5a)
Adjust the strut hardware so the back of the fender
is centered over the tire and the fender does not
rub. (5b
5a
5b
6. Once the fender is adjusted, tighten the fork crown
screw to a maximum of 5.2 Nm (6a) and the strut
screw to a maximum of 3 Nm (6b).
N m
5.2
N m
3
6b
7. Test the bike on the ground and loosen and
tighten your wheel closure system. Then check for
interference between the wheel and other parts
of the bike. Check for toe overlap, especially on
smaller frame sizes.
6
INSTALLING FENDERS
19
