INSTALLING THE SHIFT CABLES

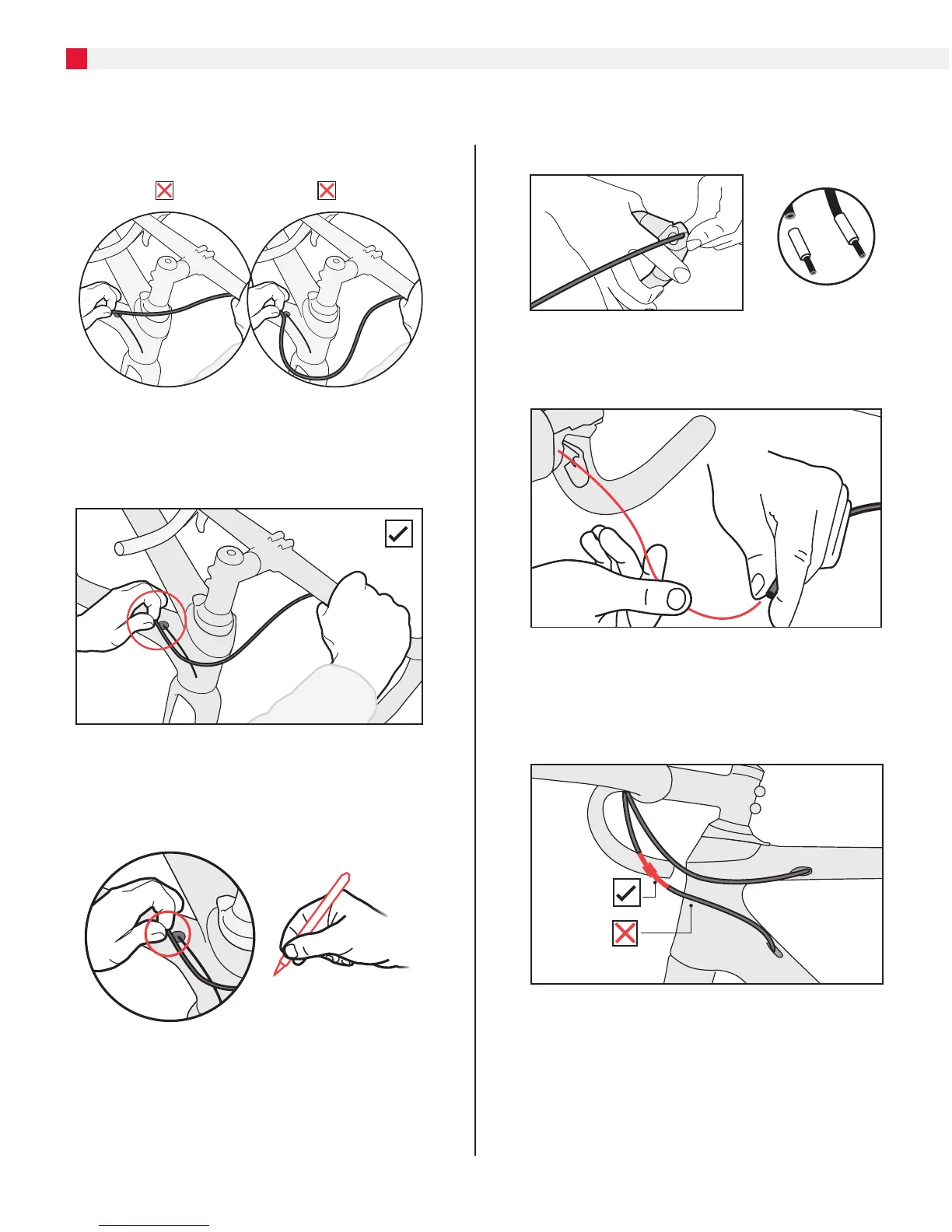

6. To create the correct amount of slack in the cable,
do not make it too loose (A) or too tight (B).
A B
TOO
TIGHT
TOO
LOOSE
7. The cable should have enough slack in it to enable
the handlebars to fully turn without pulling out of
the down tube cable stop.
8. Remove the cable and note the point at which the
cable enters the downtube using your thumbnail
or marker.
9. Cut the cable at this mark. Clean the cable end and
install a cable stop.
10. Thread shift cable through the housing and
follow shifter specific instructions.
11. Repeat steps 1 - 10 and install the front derailleur
cable. During this task, install a front derailleur
inline barrel adjuster on the housing. Ensure that
it does not make contact with the frame.
