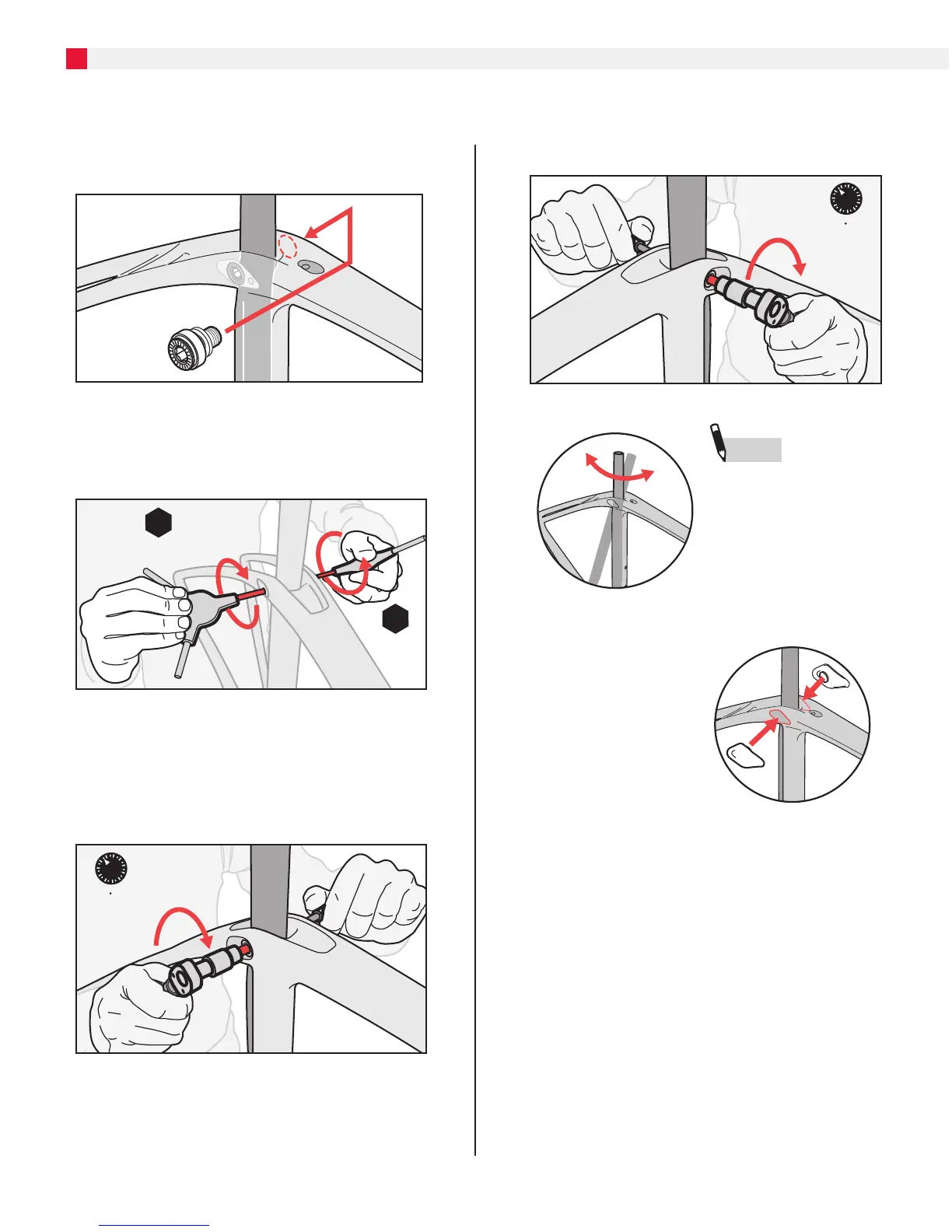

INSTALLING THE ISOSPEED SEAT DECOUPLER AND SEAT MAST
7. On the non-drive side, insert the other pivot bolt
assembly from step 3 through the bore hole and
thread into the axle.
8. Insert 5mm hex wrenches into both pivot bolts and
slowly turn each clockwise. Turn only until snug.
Do not over tighten.
mm
5
mm
5
9. Hold the non-drive bolt with the hex wrench (8a).
Using a torque wrench, tighten the drive side bolt
by turning towards the front of the bike to 8Nm
maximum (8b). Turn until the wrench “clicks” to
ensure proper seating and tightness.
8a
8b
N m
8
10. Repeat the tightening process with the torque
wrench on the non-drive side.
N m
8
11. Remove excess
grease with a cloth. Align
the rear IsoSpeed cover
for the drive side and
snap into place. Repeat
for rear IsoSpeed cover
for the non-drive side.
NOTE
A correctly installed seat
mast moves freely. If yours
does not, reinstall and
make sure all hardware is
installed correctly
