2023 Farley 5, 7, and 9
4

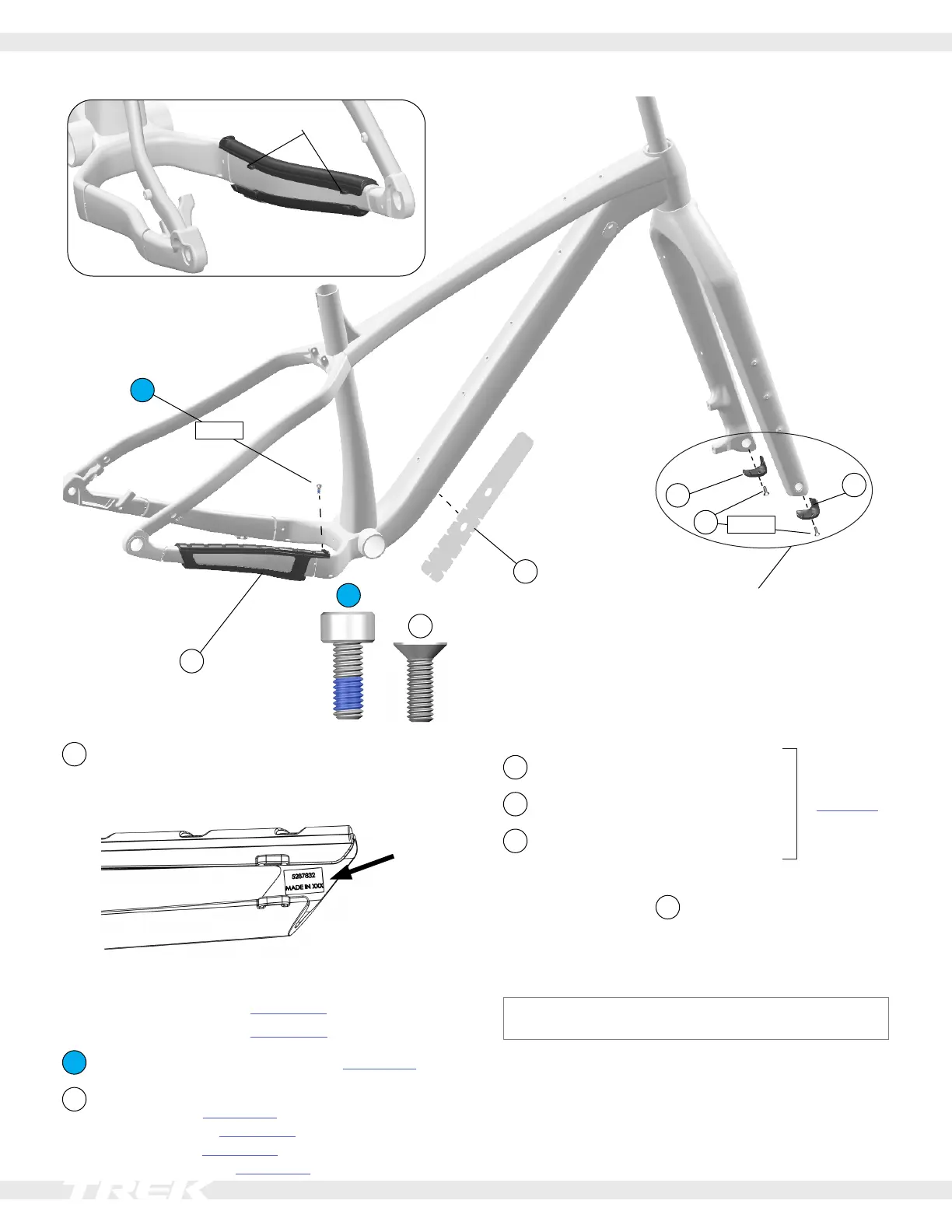

Frame guards
1
2
3
Align holes in the guard with
the holes in the frame.
6
4
5
Farley 5 and 9 only.
1.5Nm
2Nm
2
6
1
Chainstay guard
Match the original part number found on the inside
of the guard, with the correct replacement part
(shown below).
Original part Order this part
5287832 W5287832
5306502 W5306502
2
Socket head screw, steel, M5 x 16 — W5271148
3
Down tube adhesive guard
Small frame — W5291271
Medium frame — W5290126
Large frame — W5291149
Extra large frame — W5291216
4
Fork dropout bumper, driveside
— 5312674
5
Fork dropout bumper, non-driveside
6
Screws, M4 x 12mm
Zip tie
Adhesive guard
3
Use isopropyl alcohol to clean the frame surface where the
guard attaches. Wait for the alcohol to dry before applying
the guards.
Notice: Do not clean the entire frame with isopropyl
alcohol. Isopropyl alcohol could damage the paint.
