4.Installation

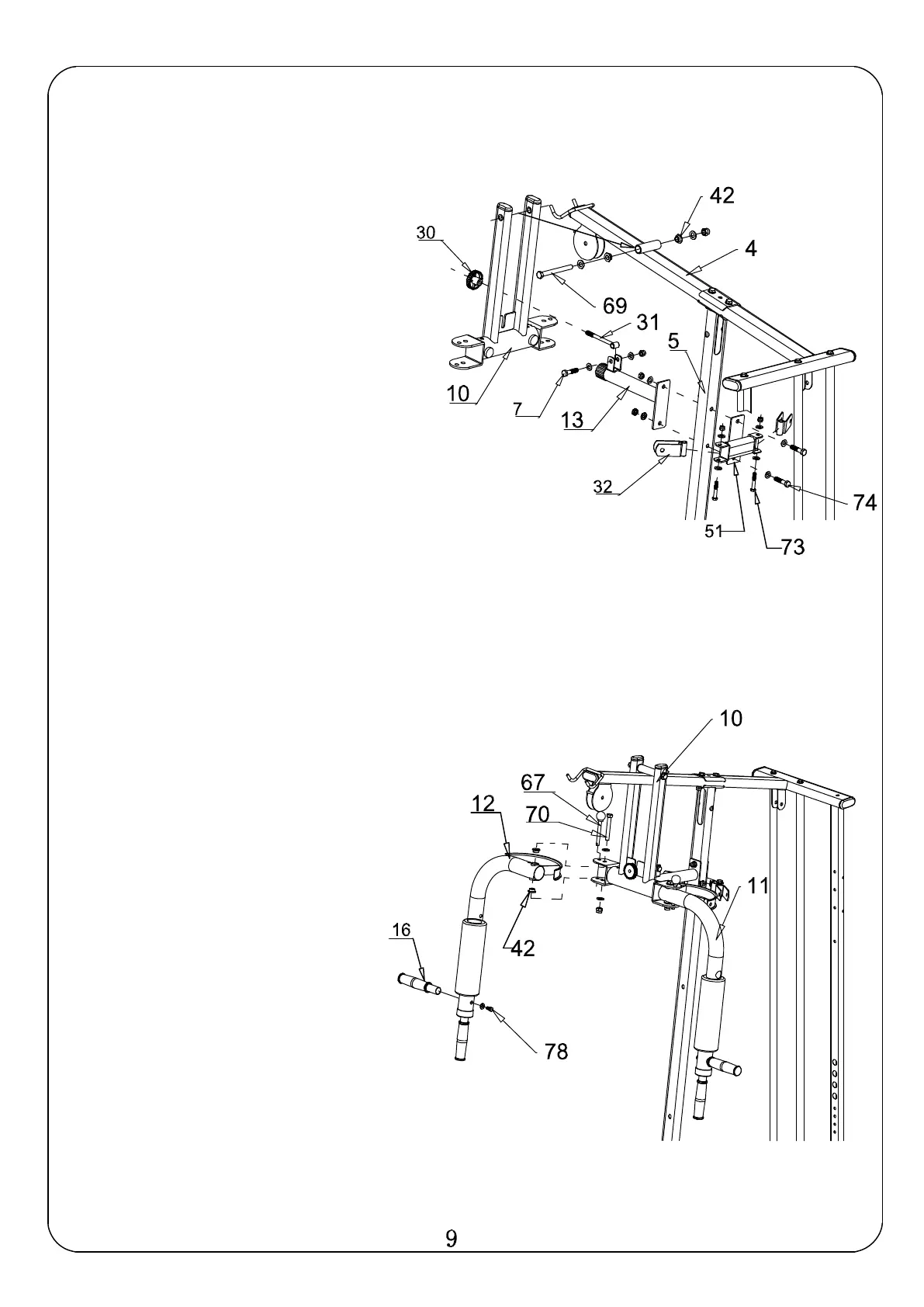

STEP 6
1.Attach left arm(12) to chest press(10)
using steel bushing(42) and Hex bolts
M12x80(70),washer and nut.
2.Insert handle bar(16) to holes
of left,right arm(12,11)
using Hex bolts
M10x20(78),washer.
STEP 5
1.Attach T shape support bar(13)
and pulley shaft(51)to Vertical
support using Hex bolts
M10x50(74),washer and nut.
2.Attach Chest press(10) to Upper
support(4) using Hex bolts
M12x150(69),steel bushing(42),
washer and nut.
3.Attach p
ulley seat(32) to pulley
shaft(51) using Hex bolts
M10x65(73),washer and nut.
4.Attach T shape bolt(31) to T shape
support bar(13) to using Hex bolts
M10x45(75),washer and nut
.
