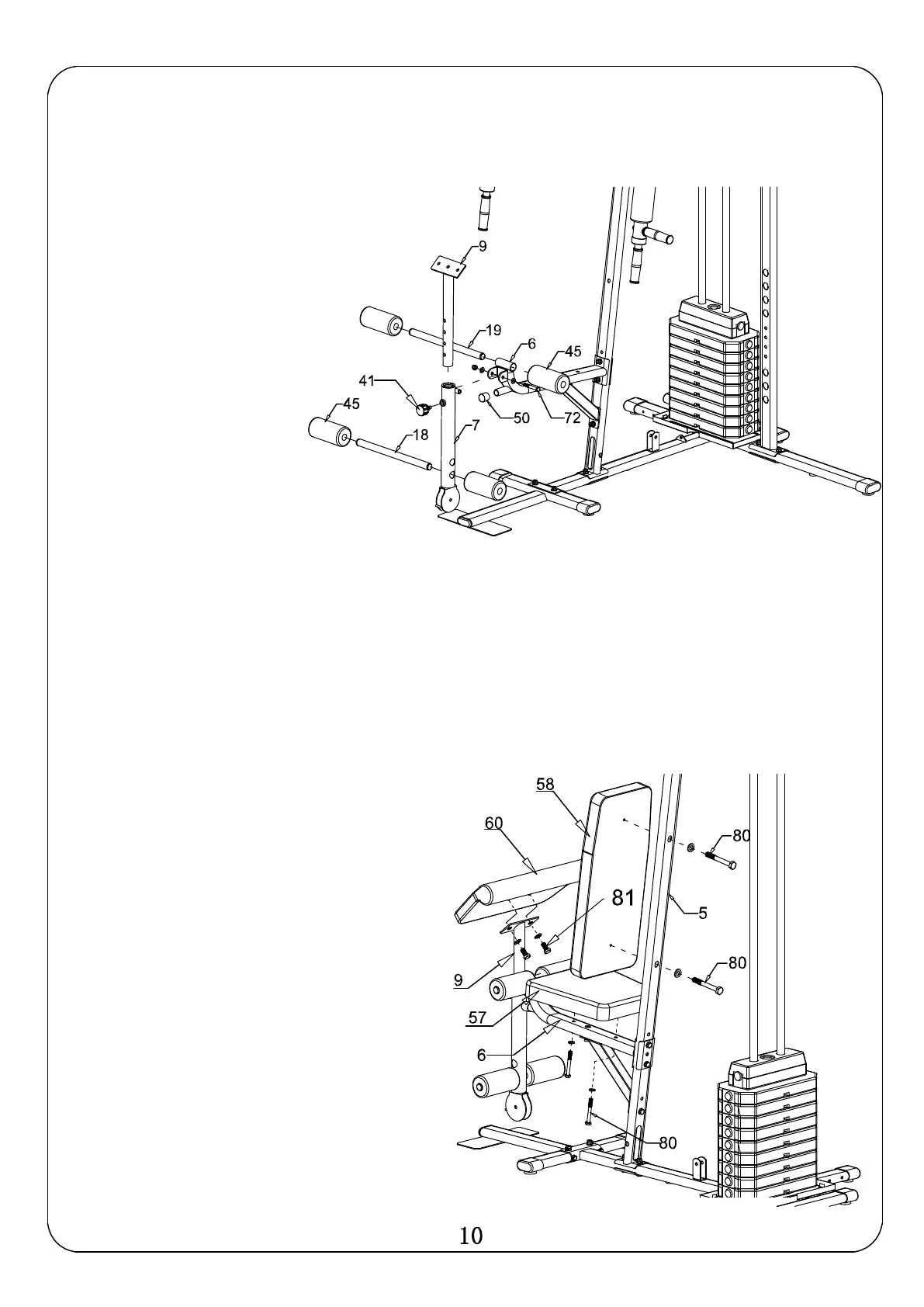

STEP 8
1.Attach back cushion(58) to vertical
support(5) using Hex bolts M8x45
(80-1sets) washers .
2.Attach seat pad(57)to seat support
(6)using Hex bolts M8x45(80-1sets)
washers .
3.Attach arm cushion(60) to arm
cushion support(9)using Hex
bolts M8x20(63-1sets) washers .
4.Installation
STEP 7
1.Attach leg extension(7) to seat
support(6) using Hex bolts M10x75
(72-1sets) washers and nuts.
2.Insert arm cushion support
(9) into leg extension(7)
using locking knob
(41).
